836-AL32-NKCH

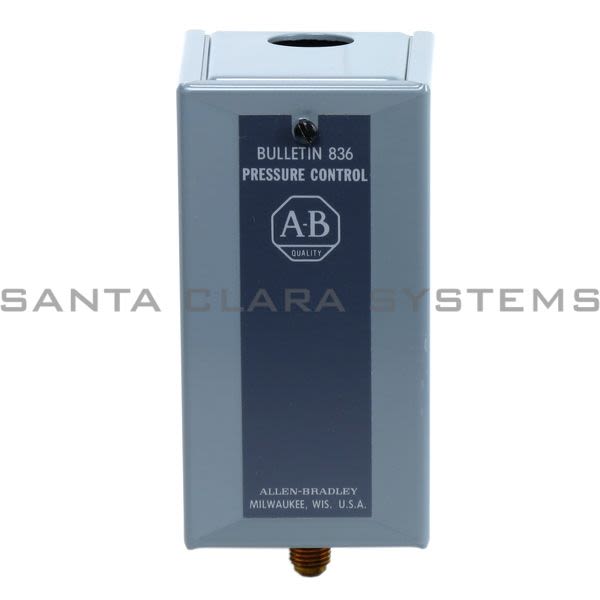

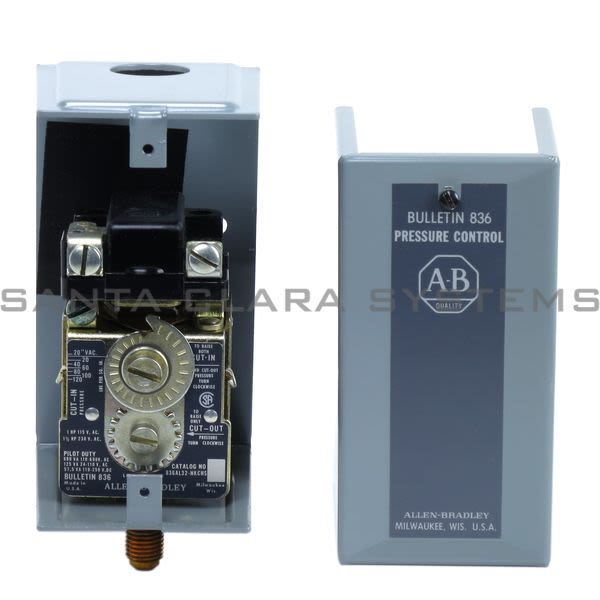

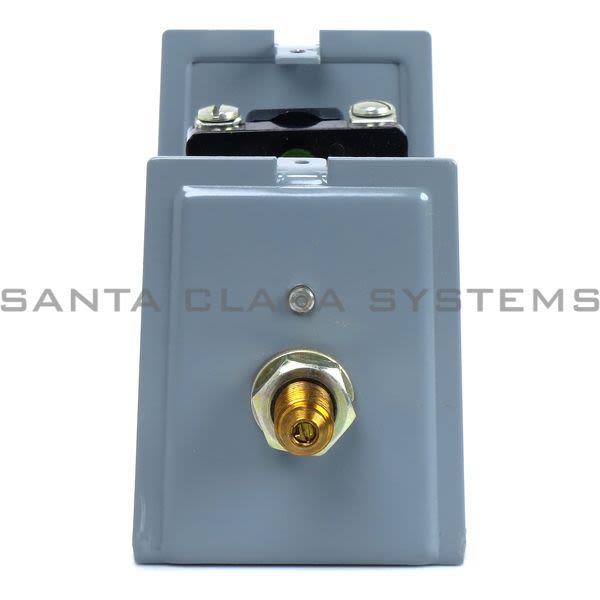

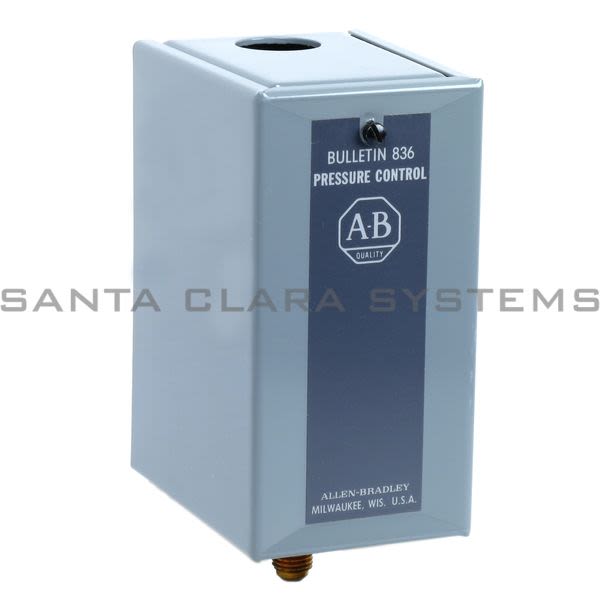

Allen Bradley - Pressure Switch

Current response time:

17 Minutes 14 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Pressure Switch
Custom Trip or Reset Setting: Default Factory Setting , Standard pressure controls shipped from the factory are set at the maximum operating range and minimum differential. These settings vary for each pressure switch family depending on the combination of Style, Operator Type, and Pressure Specification configuration options.
Device Style: Device Style L, Low pressure refrigeration controls , Copper alloy bellows with built-in pulsation snubber. With capillary and tubing connection.
Factory Modifications: No Modifications

Adjustable Differential psi (Approximate Mid-Range Values): 9...50
Refrigeration Controls: 32-NKCH, Low Pressure Copper alloy, Type 1 Encl , Adjustable Operating range 20 in. Hg Vacuum...120 psi. Adjustable differential psi. 9...50 psi. Max line pressure 220 psi. Contact Rating: 1 HP, 115V AC, 1.5 HP, 230V AC, Control Circuit Rating: AC-600 VA, 110...660V, DC-57.5 VA, 110...250V.
Package Style: Type 1 Enclosure

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 836-AL32-NKCH . Santa Clara Systems carries 54,496 items from Allen Bradley.

836-AL32-NKCH Catalog
