509-BAH

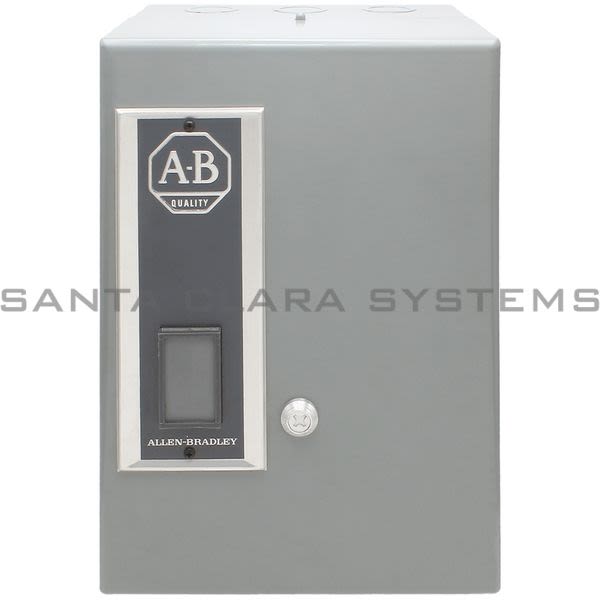

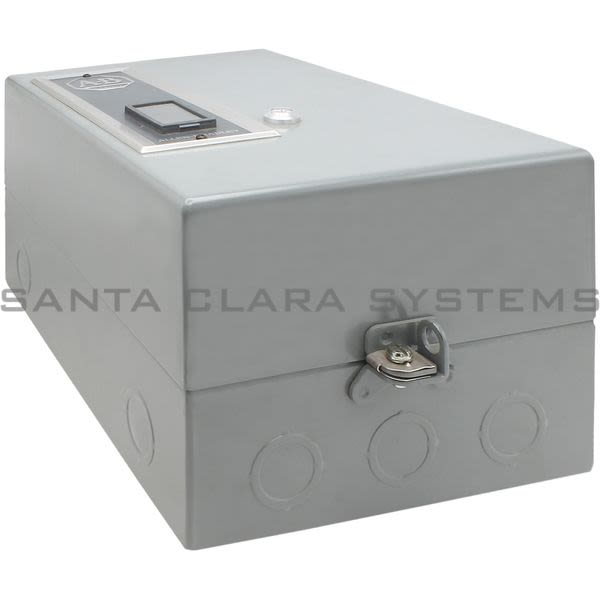

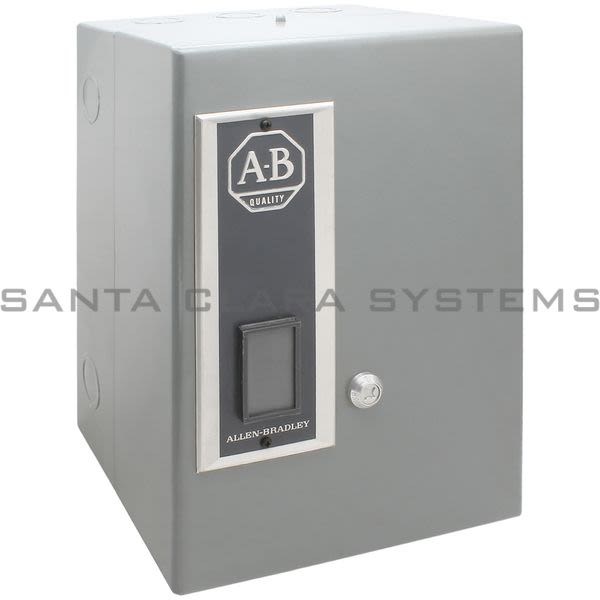

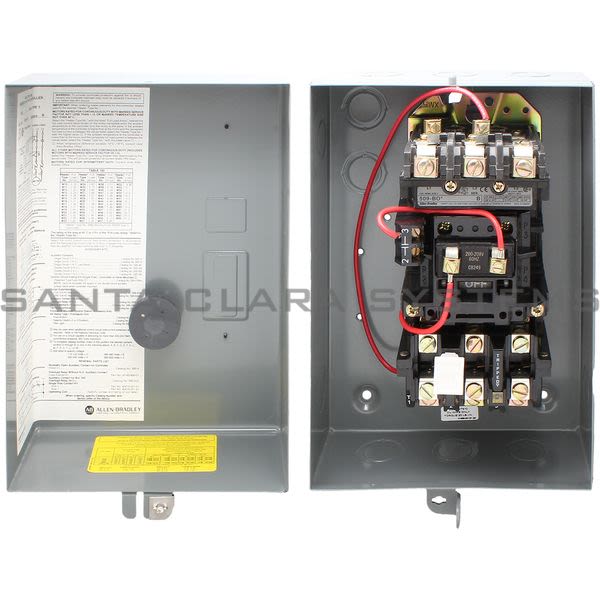

Allen Bradley - Full Voltage Non-Reversing Starter

Current response time:

By 5AM PT on Monday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Full Voltage Non-Reversing Starter
Voltage: 200V 60Hz
Control Voltage: 208V 60Hz
Enclosure Size [length x width x depth]: 10 x 7 x 5 in. , Lift-off Enclosure
NEMA Size: NEMA 1
Overload Relay: Eutectic Alloy

Supply Voltage: 208V 60Hz
Horsepower: 7.5 HP
Phases: 3 Phase , - Open type 3-phase contactors, sizes 0-3, can be wired for 3-phase or 1-phase applications. , - 1-phase coil codes are no longer valid for open type contactors, sizes 0-3.
Product Type: Enclosed
Enclosure Code: Type 1 General Purpose Surface Mounting
Hinged Enclosure Available: HNG option is available if: , - The enclosure is a Type 1 General Purpose Enclosure , - The default is either a 10 x 7 x 5 or a 13 x 7 x 5 Lift-off Style , If HINGED enclosure is preferred, go to the Factory Installed Modifications section and select Hinged Enclosure.

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 509-BAH . Santa Clara Systems carries 54,938 items from Allen Bradley.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
