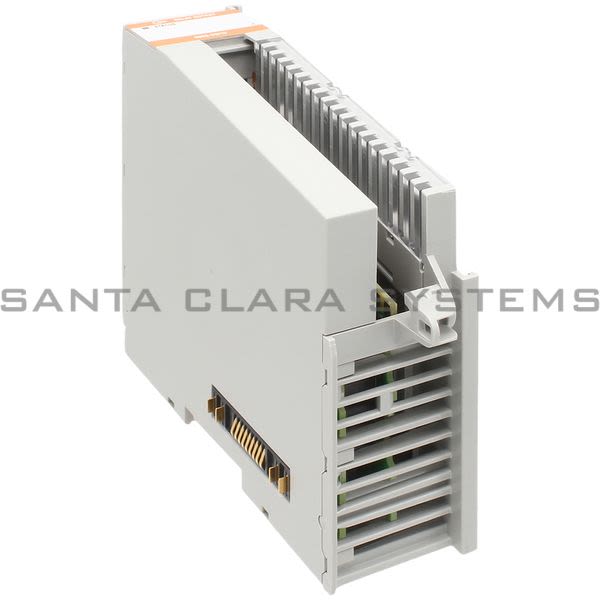

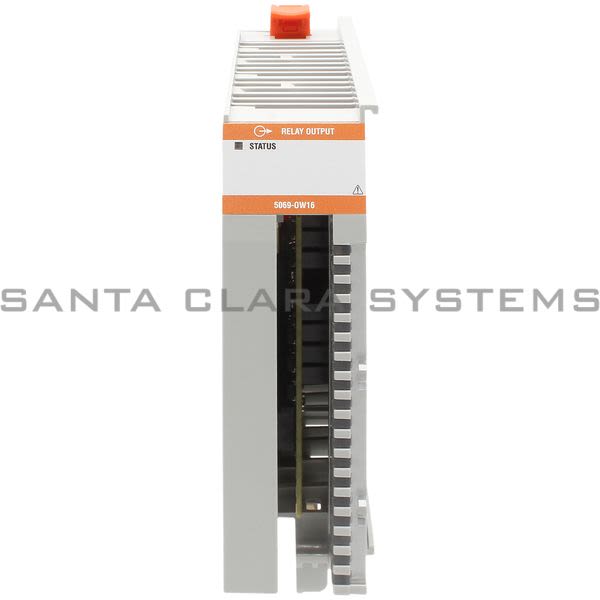

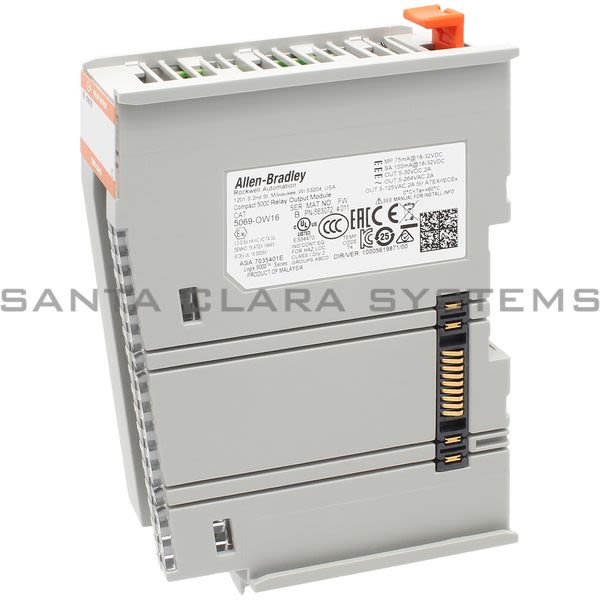

5069-OW16

Allen Bradley - Output Module

Current response time:

By 5AM PT on Wednesday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Output Module
Product Type: Digital 16-point Relay Output Module
Mounting: Din Rail
Enclosure Type Rating: None (Open-Style)
Product Series: 5069 CompactLogix/Compact GuardLogix System
MOD Power: 75 mA @ 18?32V DC
Minimum load current: 1 mA
MOD Power Passthrough, Max: 9.55 A @ 18?32V DC
Power Dissipation, Max: 3.0 W
Thermal Dissipation, Max: 10.2 BTU/hr
Module Keying: Electronic Keying via Programming Software

Weight, approx: 240 g (0.53 lb.)
Dimensions (HxWxD), Approx: 144.57 x 36 x 105.42 mm (5.69 x 1.42 x 4.15 in.)
Temperature, Nonoperating: -40?+85 C (-40?+185 F)
Temperature, Operating: 0 C < Ta < +60 C (+32 F < Ta < +140 F)
Temperature, Surrounding Air, Max: 60 C (140 F)
SA Power: 150 mA @ 18?32V DC
SA Power Passthrough, Max: 9.95 A @ 18?32V DC | Do not exceed 10 A MOD or SA Power (Passthrough) current draw.
Outputs: 16 (Two Groups of 8) - Form A (Normally Open)
Output Voltage Range: 5?125V DC 5?264V AC
Indicators: 1 green/red Module Status Indicator | 16 yellow/red I/O Status Indicators

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 5069-OW16 . Santa Clara Systems carries 54,603 items from Allen Bradley.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
