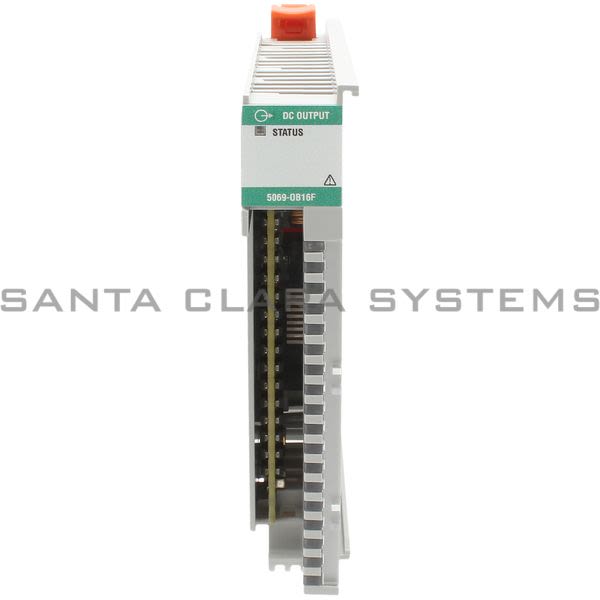

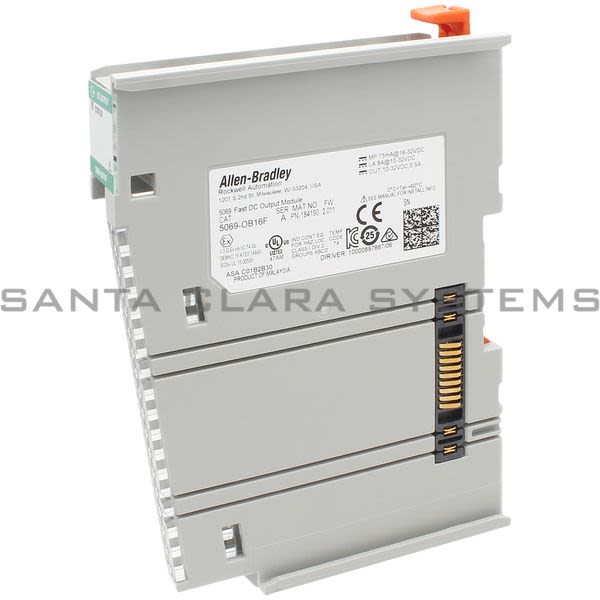

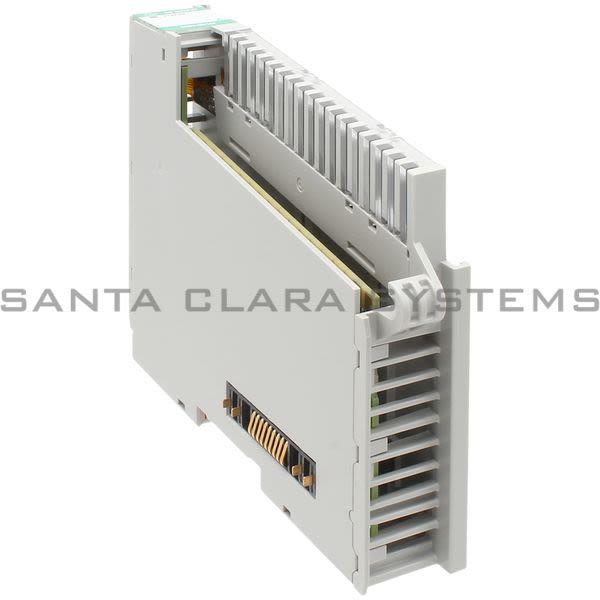

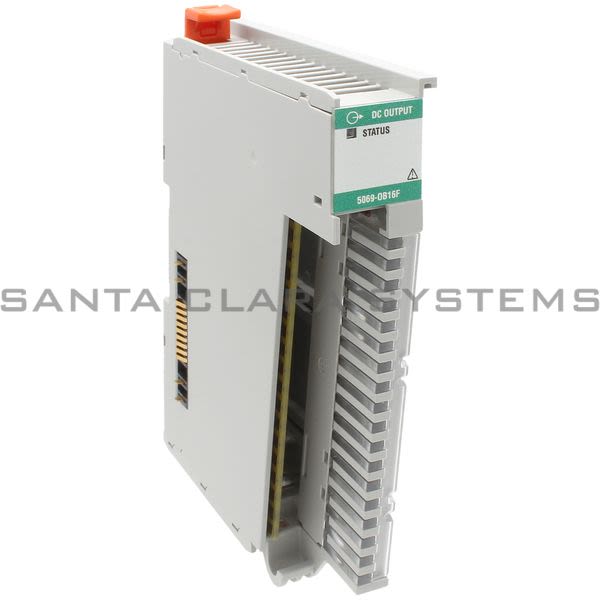

5069-OB16F

Allen Bradley - Output Module

Current response time:

By 5AM PT on Monday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Output Module
Enclosure Type: None (Open - Style)
Product Type: Digital 16-point Sourcing Output Modules
Mounting: DIN Rail
Output Current Rating: 0.5 A Resistive per Channel @ 10...32V DC 8 A Resistive per Module @ 10...32V DC, max
Product Series: 5069 CompactLogix/Compact GuardLogix System
On-State Voltage (Min, Nom, Max): 10V DC, 24V DC, 32V DC
On-State Voltage Drop, Max: < 0.2V DC
On-State Current per Channel, Min: 1 mA
Off-State Voltage, Max: 5V DC with 1 mA min Load
Off-State Leakage Current per Point, Max: < 0.5 mA per Point
Surge Current per Point: 1 A max for 10 ms per Point, Repeatable Every 2 s
Outputs: 16 Channels (1 group of 16), sourcing
Voltage Category: 12/24V DC source

MOD Power: 75 mA @ 18...32V DC
Weight, Approx: 175 g (0.39 lb)
Thermal Dissipation, Max: 11.09 BTU/hr
Temperature, Surrounding Air, Max.: 60 C (140 F)
Temperature, Operating: 0...60 C (32...140 F)
Temperature, Nonoperating: -40...+85 C (-40...+185 F)
SA Power Passthrough, Max: 9.95 A @ 10...32V DC ( Do Not Exceed 10 A MOD or SA Power (Passthrough) Current Draw. )
Power Dissipation, Max: 3.25 W (16 Channels @ 0.5 A)
Module Keying: Electronic, Module Keying, Software Configurable
MOD Power Passthrough, Max: 9.55 A @ 18...32V DC
LA Power: 0.5 A per Channel @ 10...32V DC, 8 A per Module @ 10...32V DC
Indicators: 1 Green/Red Module Status Indicator | 16 Yellow/Red I/O Status Indicators
Dimensions (HxWxD), Approx: 144.57 x 22 x 105.42 mm (5.69 x 0.87 x 4.15 in.)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 5069-OB16F . Santa Clara Systems carries 54,609 items from Allen Bradley.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
