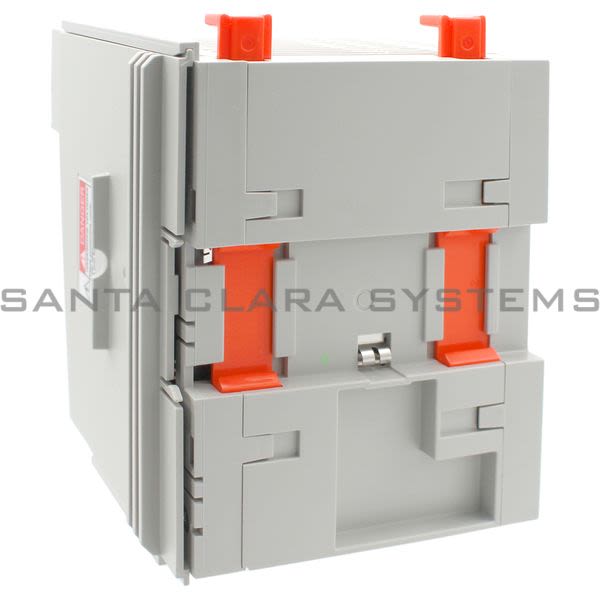

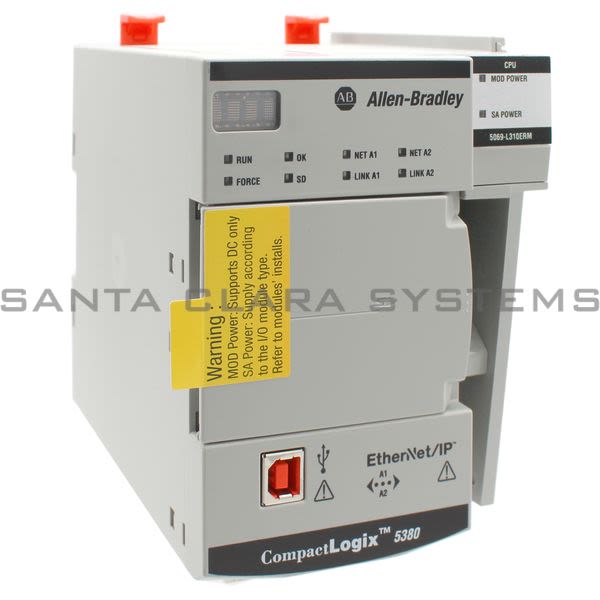

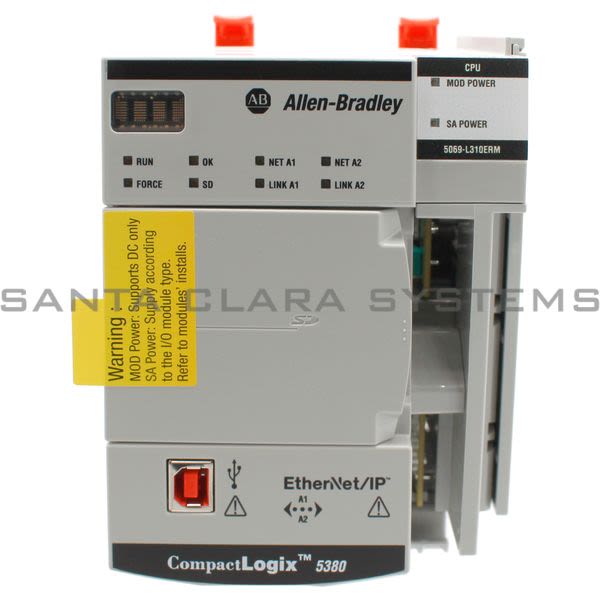

5069-L310ERM

Allen Bradley - Controller

Current response time:

11 Minutes 24 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Controller
Enclosure: None (open-style)
Product Type: CompactLogix 5380 Controllers
Mounting: DIN rail mount (horizontal mount only)

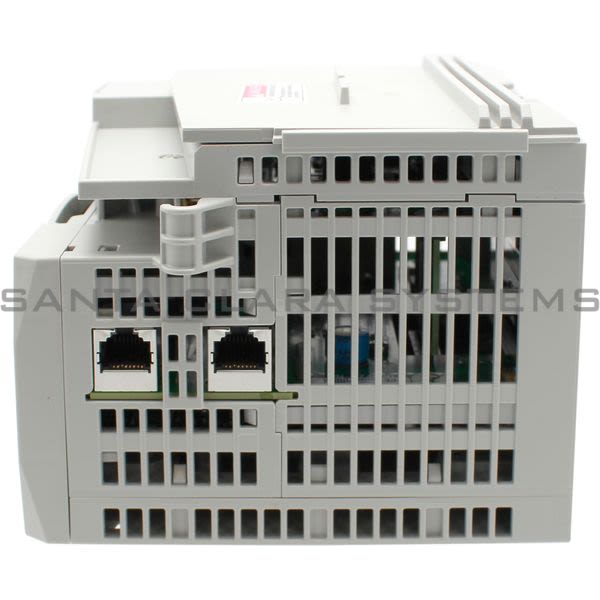

Built-in communication ports: 1 - USB port, 2 - Ethernet ports
Controller Tasks (Continuous, Periodic, Event): 32 tasks, 1000 programs/task, All event triggers
Dimensions (HxWxD), approx.: 143.97 x 98.10 x 136.81 mm (5.67 x 3.86 x 5.39 in.)
Ethernet performance: 10 Mbps, 100 Mbps, 1 Gbps Full-duplex only
EtherNet/IP modes supported: Dual-IP mode (Available with the Studio 5000 Logix Designer application, version 29.00.00 or later) Linear/DLR mode
EtherNet/IP nodes supported, max: 24
Integrated motion: As many as four axes
Local I/O modules, max: 8
MOD Power current rating, max: 10 A (Do not exceed 10 A current draw at the MOD Power RTB.)
MOD Power current, max: 450 mA

MOD Power inrush: 850 mA for 125 ms
MOD Power passthrough: 9.55 A @ 18...32V DC
MOD Power voltage range: 18...32V DC
Power dissipation, max: 8.5 W
User memory: 1 MB
SA Power current rating, max: 10 A (AC or DC power) Do not exceed 10 A current draw at the SA Power RTB
SA Power current, max: 10 mA (DC power) 25 mA (AC power)
SA Power passthrough: 9.95 A @ 0...32V DC 9.975 A @ 0...240V AC, 47...63 Hz ATEX/IECEX, 125V AC max
SA Power voltage ranges: 0...32V DC 0...240V AC, 47...63 Hz ATEX/IECEX, 125V AC max
Socket interfaces supported, max: 32
Thermal dissipation, max: 29 BTU/hr
USB port communication: USB 2.0, Type B Full speed (12 Mbps) Programming, configuration, firmware update, and on-line edits only
Weight, approx.: 0.768 kg (1.693 lb)
Removable Terminal Block Kit Available: 5069-RTB64-SCREW, 5069-RTB64-SPRING
