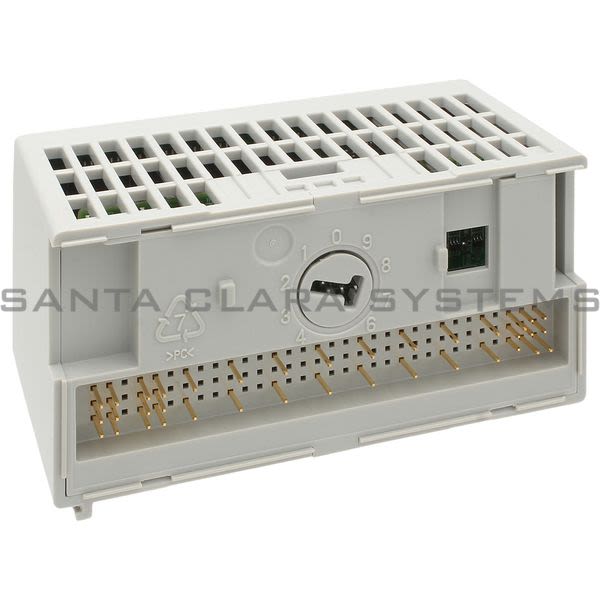

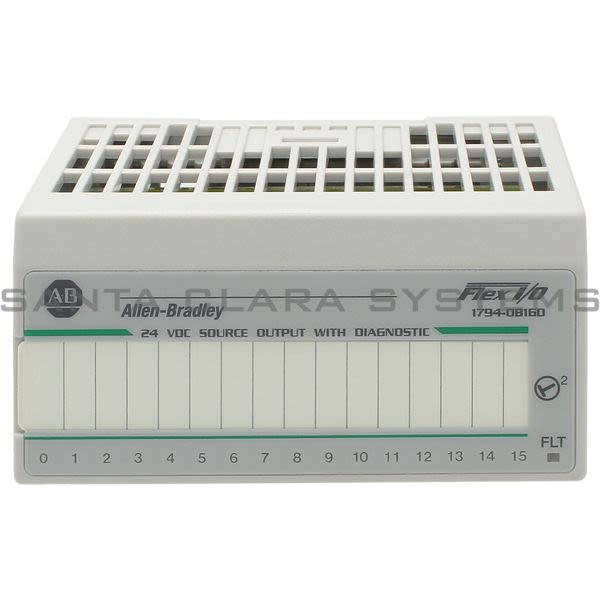

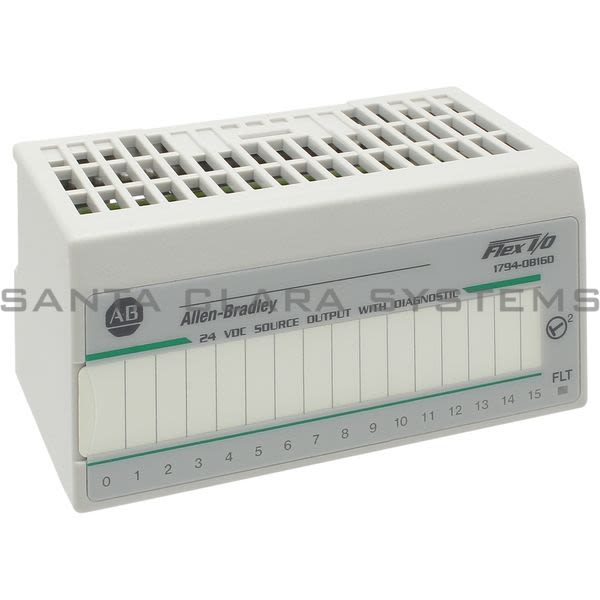

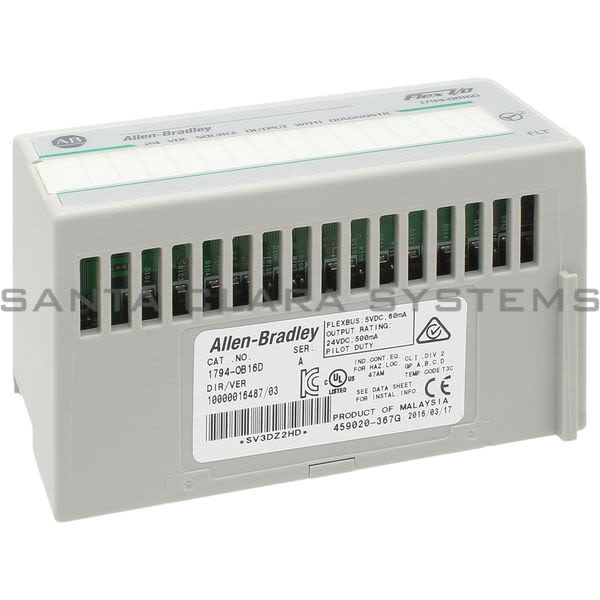

- Description: Output Module | FlexLogix
- Output current rating: 8.0 A (16 outputs @ 0.5 A)
- Number of outputs: 16, nonisolated
- Output voltage, min: 10V DC
- Output voltage, nom: 24V DC
- Output voltage, max: 31.2V DC
- On-state current, min: 1.0 mA per channel
- On-state current, max: 500 mA per channel
- Surge current: 2 A for 50 ms each, repeatable every 2 seconds
- Off-state leakage, max: 0.5 mA
- Isolation voltage: 50V (continuous)
- FlexBus current: 60 mA @ 5V DC
- Power dissipation, max: 4.8 W @ 31.2V DC
- Thermal dissipation, max: 16.4 BTU/hr @ 31.2V DC
- Open wire detect off-state leakage current: 0.1 mA ? When external power active and output signal inactive.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1794-OB16D . Santa Clara Systems carries 54,520 items from Allen Bradley.
