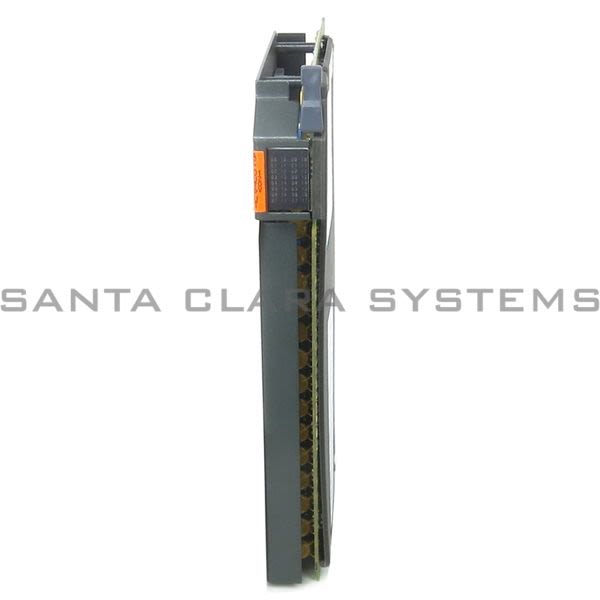

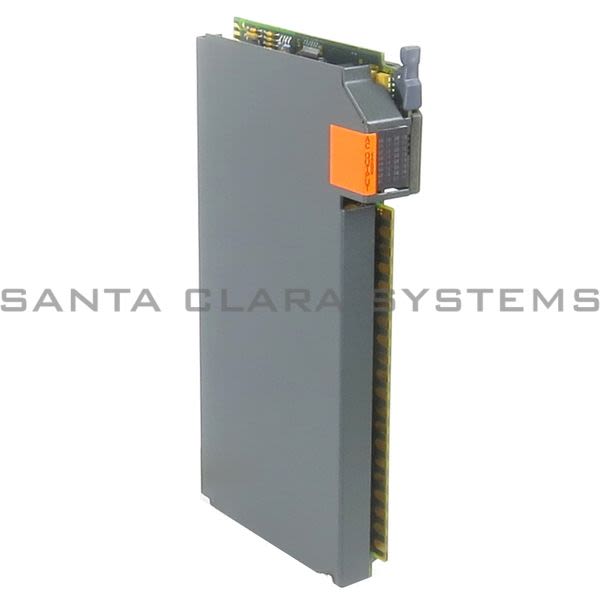

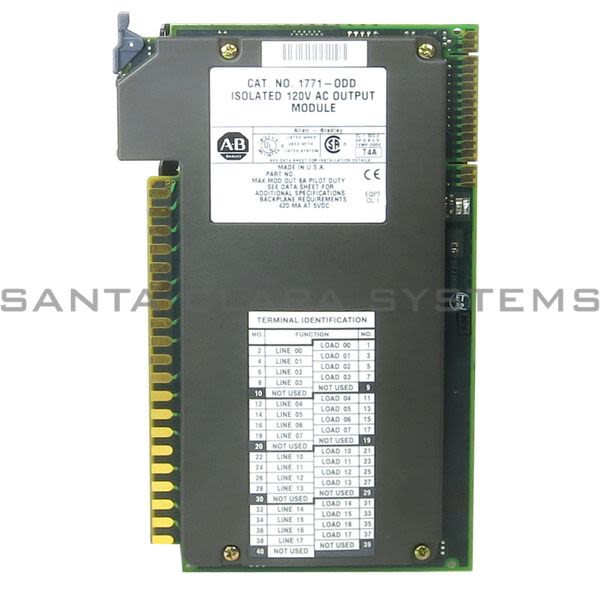

- Description: Isolated Output Module
- Voltage Rating: 85 to 138V ac, 47-63Hz
- Outputs per Module: 16
- Current Rating (per channel): 10mA-2A continuous (max) 20A surge for 100ms; repeatable every 2 seconds 8A per module maximum
- Onstate Voltage Drop (each output): 6.5V RMS (max.) @ load current <65mA 1.5V RMS (max.) @ load current >65mA
- On-state Load Current: 10mA minimum
- Off-state Leakage Current: 3.0mA @ 138V ac; 1.5mA @ 120V ac
- Power Dissipation: 14.2 Watts (max); 0.1 Watts (min)
- Thermal Dissipation: 48.5 BTU/hr (max); 0.4 BTU/hr (min)
- Backplane Current: 420mA 5V dc + 5%
- Field Wiring Arm: Catalog Number 1771-WN
- Cable Length (maximum): 1000 ft (304.8 m)
- Wiring Arm Screw Torque: 7-9 inch pounds
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1771-ODD . Santa Clara Systems carries 54,520 items from Allen Bradley.
