1756-OG16

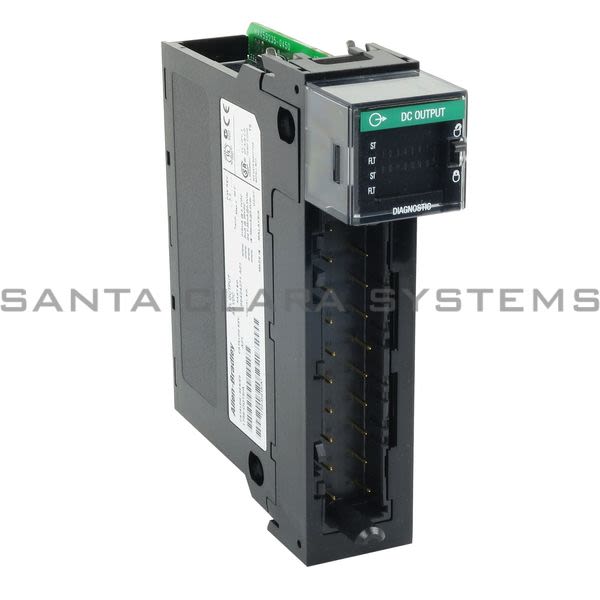

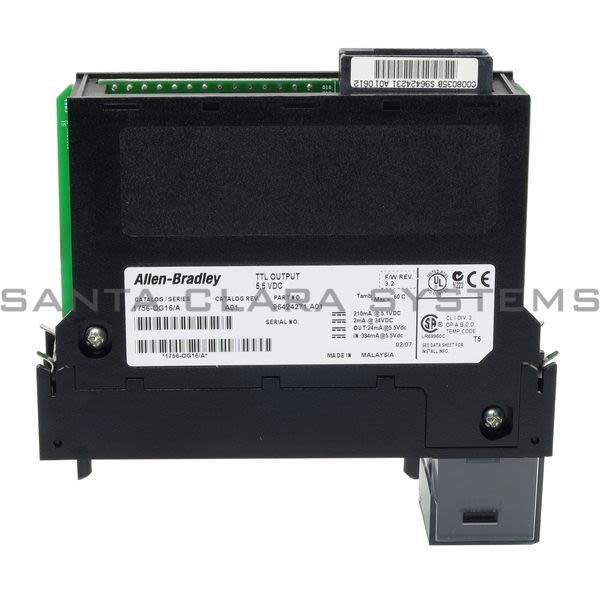

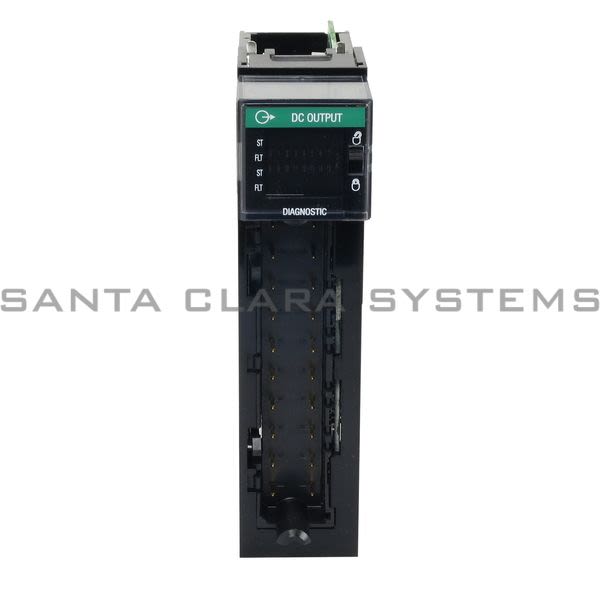

Allen Bradley - 16-Point Output Module | ControlLogix 0-5 VDC TTL Output (Low True)

Current response time:

By 5AM PT on Monday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: 16-Point Output Module | ControlLogix 0-5 VDC TTL Output (Low True)
Product Type: TTL Output Module
Product Series: 1756 ControlLogix I/O Modules
Outputs: 16 (8 points/group)
Voltage category: 5V DC TTL (Low=True) (TTL outputs are inverted)
Operating voltage range: 4.5...5.5V DC source, 50 mV P-P ripple max
Current draw @ 5.1V: 210 mA
Current draw @ 24V: 2 mA
Total backplane power: 1.12 W
Off-state leakage current per point, max: 0.1 mA per point

On-state voltage drop, max: 0.4V DC
Continuous current, max: 24 mA
Load current per point, max: 24 mA
Load current per module, max: 384 mA
Load current: 0.15 mA
Scheduled outputs: Synchronization within 16.7 s max, reference to the Coordinated System Time
Isolation voltage: 250V (continuous)
Module keying: Electronic, software configurable
Fusing: Not protected. A fused IFM is recommended to help protect outputs.
