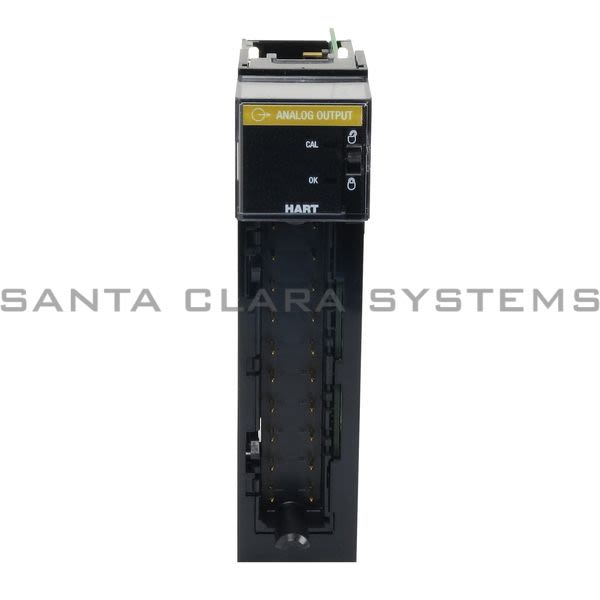

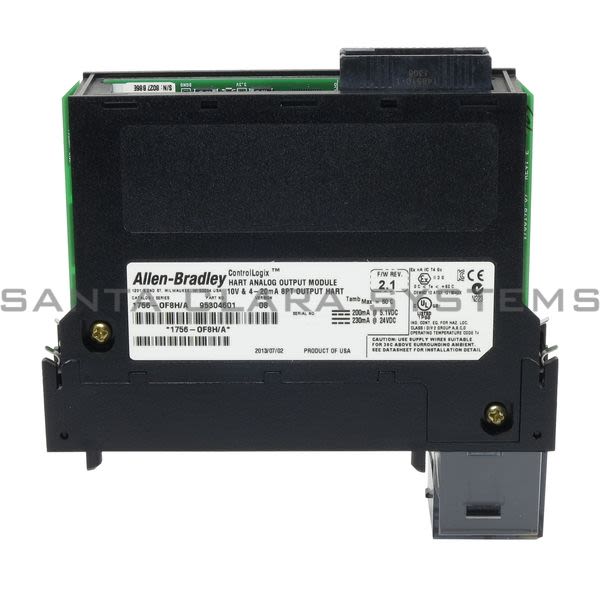

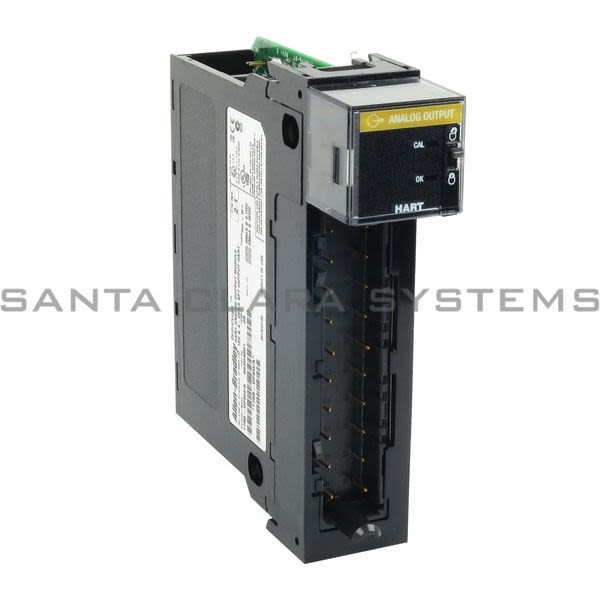

- Description: Output Module | ControlLogix
- Resolution: 15...16 bits for all ranges
- Product Type: Voltage/current output analog module with HART protocol
- Enclosure type rating: None (open-style)
- Outputs: Eight voltages or current, one HART modem per module
- Input Range: 10V voltage 0...20 mA, 4...20 mA current
- Compatible With: HART 5, 6, 7
- Overvoltage Protection: 24V dc
- Calibration Interval: Twelve months typical
- Product Series: 1756 ControlLogix I/O Modules
- Total backplane power: 6.54 W
- Power dissipation: 4.92 W
- Thermal dissipation: 16.78 BTU/hr
- Isolation voltage: 50V (continuous)
- Open circuit detection time: Current output only (output must be set to < 0.1 mA)
- Wire type: Copper
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-OF8H . Santa Clara Systems carries 54,520 items from Allen Bradley.
