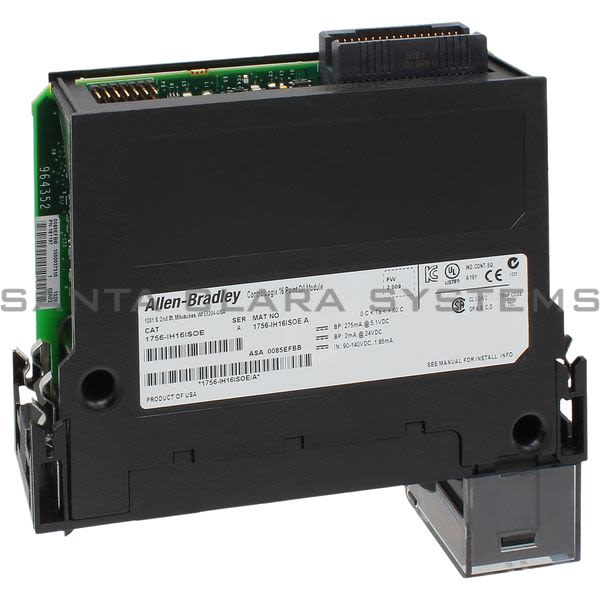

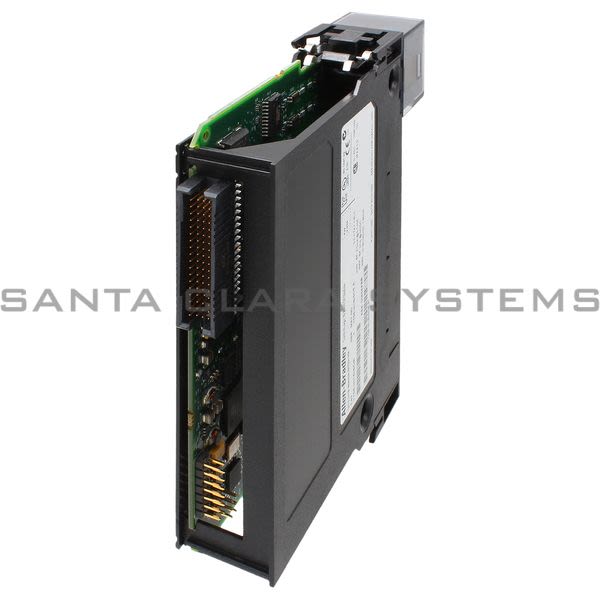

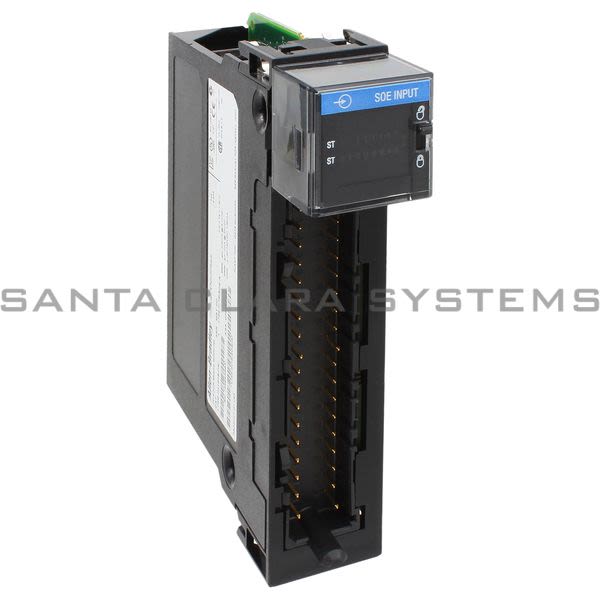

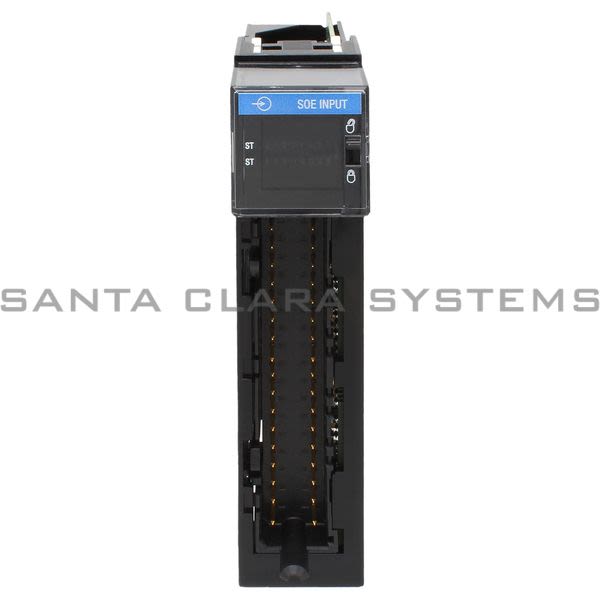

1756-IH16ISOE

Allen Bradley - Input Module | ControlLogix

Current response time:

7 Minutes 19 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Input Module | ControlLogix
Product Type: DC (90...140V) Sequence of Events Input Module
Product Series: 1756 ControlLogix I/O Modules
Inputs: 16 Individually Isolated, Sequence of Events
Voltage category: 125V DC sink/source
Operating voltage range: 90...140V DC
Input voltage, nom: 125V DC
Current draw @ 5.1V: 275 mA
Current draw @ 24V: 2 mA

Total backplane power: 1.3 W
Thermal dissipation: 17.22 BTU/hr
Off-state voltage, max: 20V
Off-state current, max: 0.3 mA
On-state current, min: 1.15 mA @ 90V DC
On-state current, max: 1.85 mA @ 140V DC
Change of state: Software configurable
Isolation voltage: 250V (continuous), basic insulation type, inputs-to-backplane, and input-to-input
Module keying: Electronic, software configurable

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-IH16ISOE . Santa Clara Systems carries 54,595 items from Allen Bradley.
