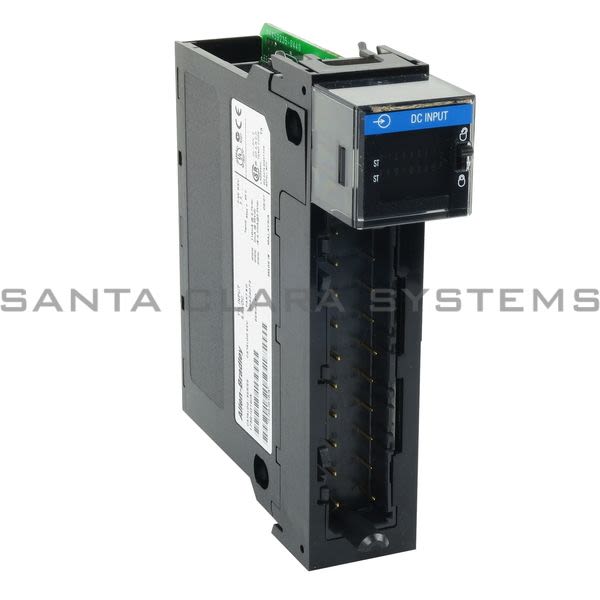

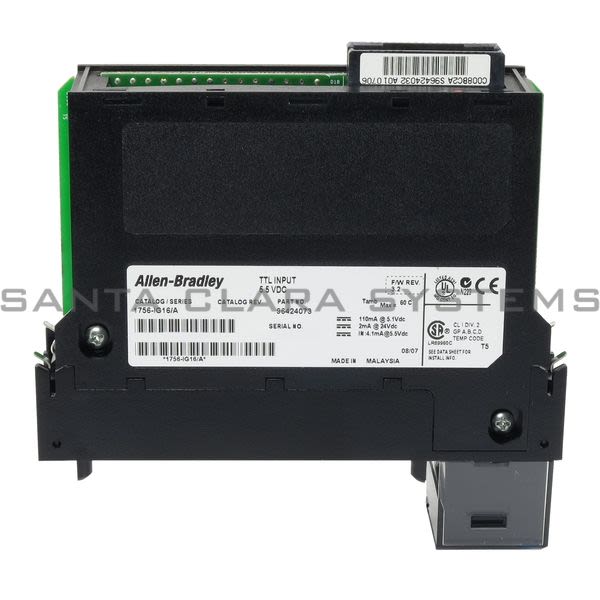

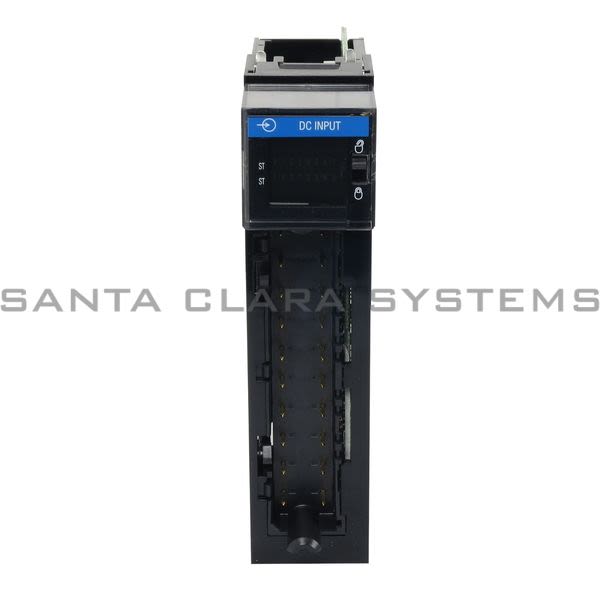

- Description: Input Module | ControlLogix
- Product Type: TTL Input Module
- Product Series: 1756 ControlLogix I/O Modules
- Inputs: 16 (8 points/group)
- Voltage category: 5V DC TTL source (Low=True)(TTL inputs are inverted)
- Operating voltage range: 4.5...5.5V DC | 50 mV P-P ripple max
- Current draw @ 5.1V: 110 mA
- Current draw @ 24V: 2 mA
- Total backplane power: 0.61 W
- Off-state voltage, max: 2V
- Off-state current, max: 4.1 mA
- Input current, nom: 3.7 mA @ 5V DC
- Input current, max: 4.1 mA @ 5V DC
- Change of state: Software configurable
- Isolation voltage: 250V (continuous), basic insulation type, inputs-to-backplane, and input group-to-group | No isolation between individual group inputs
- Module keying: Electronic, software configurable
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-IG16 . Santa Clara Systems carries 54,584 items from Allen Bradley.
