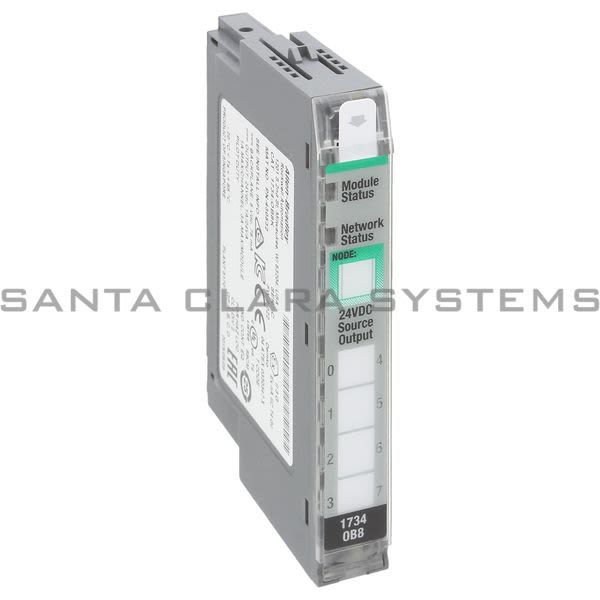

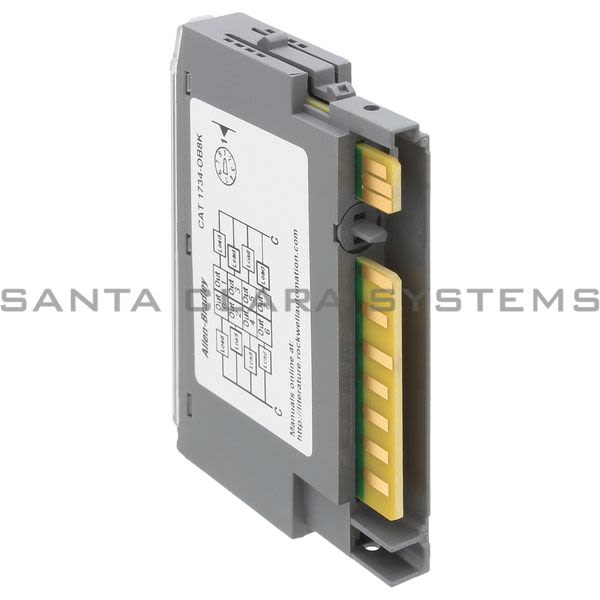

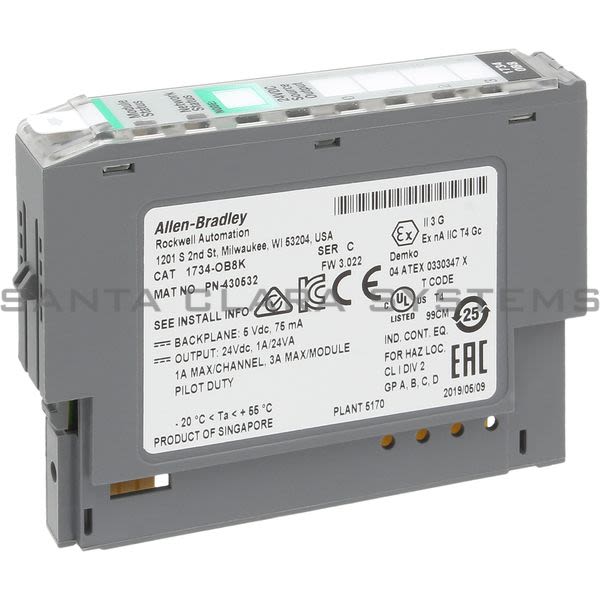

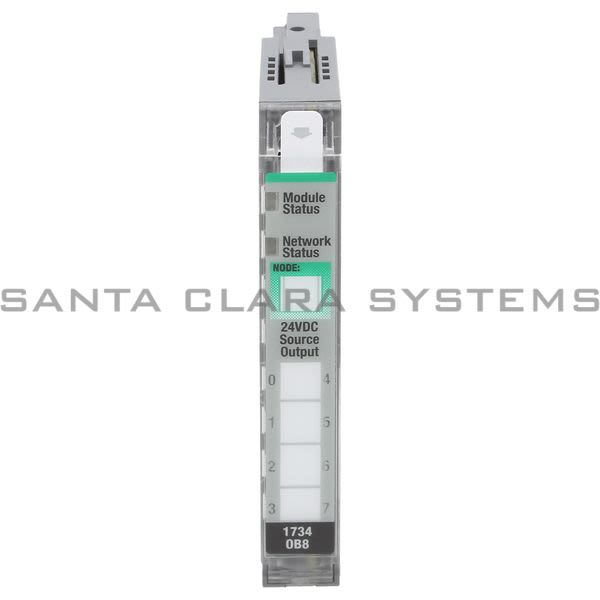

1734-OB8K

Allen Bradley - Output Module

Current response time:

14 Minutes 1 Second

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Output Module
Product Type: POINT I/O Output Module
Output current rating: 1.0 A per output, not to exceed 3.0 A max per module
Dimensions (H x W x D), approx.: 56.0 x 12.0 x 75.5 mm (2.21 x 0.47 x 2.97 in.)
External DC power supply current: 32 mA
Indicators: 8 yellow output status | 2 green/red module/network status
Isolation voltage: 50V (continuous), reinforced insulation type Type tested @ 2500V DC for 60 s, field-side to system
Off-state leakage, max: 0.5 mA
On-state current, min per channel: 1.0 mA
On-state voltage drop, max: 0.2V DC
On-state voltage range and Off-state voltage, max: 28.8V DC

On-state voltage range, min: 10V DC
On-state voltage range, nom: 24V DC
Outputs per module, non-isolated, sourcing: 8 (1 group of 8)
POINTBus current, max @ 5V DC: 75 mA
Power dissipation, max @ 28.8V DC: 2.0 W
Product Series: 1734* C Series POINT I/O
Terminal base screw torque: 0.8 Nm (7 lbin)
Surge current: 2 A for 10 ms, repeatable every 3 s
Thermal dissipation, max @ 28.8V DC: 6.8 BTU/hr
Weight, approx.: 35.4 g (1.25 oz)
K=suffix: Conformal Coating, protects from harsh and/or corrosive environments
