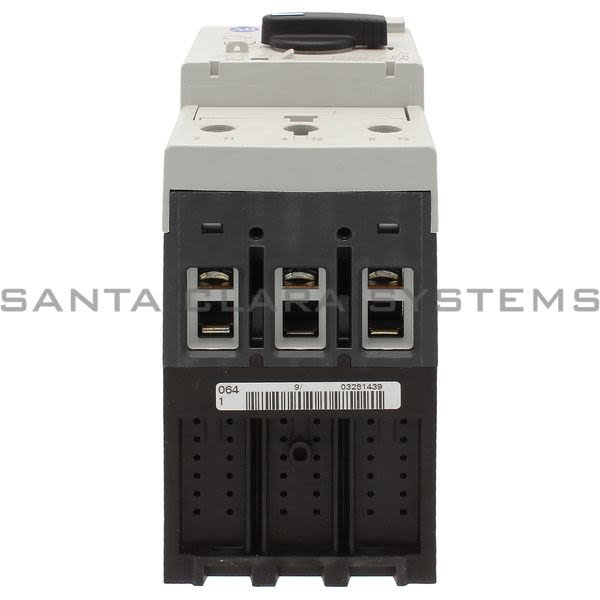

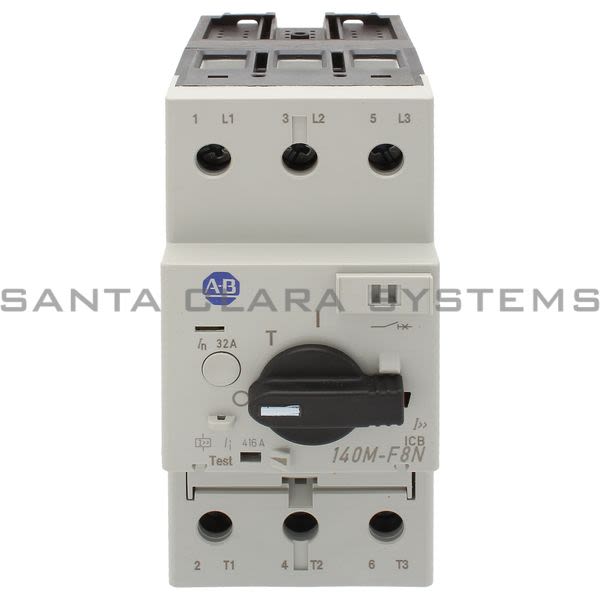

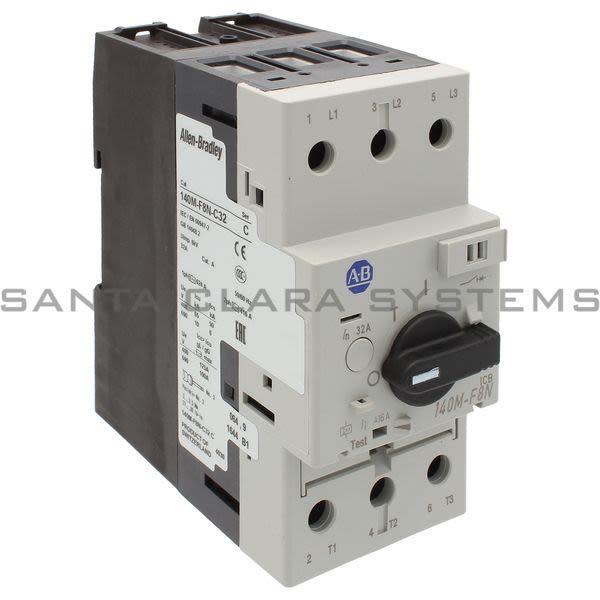

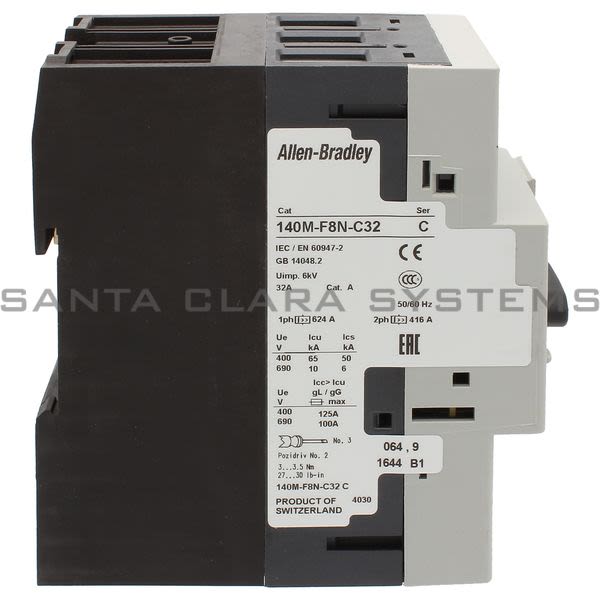

140M-F8N-C32

Allen Bradley - Motor Protection Circuit Breaker

Current response time:

8 Minutes 52 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Motor Protection Circuit Breaker
Frame Size: Frame Size F
Circuit Breaker Type: Motor Circuit Protector
Supply Voltage: 480Y/277 VAC 50/60HZ
Maximum Available Fault Current: 5kA
Breaking Capacity: High Breaking Capacity
Coordination Type: Type 1In case of a short-circuit, damage requiring the exchangeof components or the entire starter is permissible.

Rated Operational Current (A): 32A- F-Frame- Magnetic Trip Current = 416A
Application: Standard Magnetic Trip (Fixed at 13 x le), - Short Circuit Protection Only, - Separate Overload Protection is Required
Magnetic Trip Current (A): 416A Fixed
UL Listed Application Ratings: UL 508 - Manual Motor Controller, Max. Short Circuit Current: 480V 65kA | 600V 30kA, Type 2 Coordination, Max. Short Circuit Current: 480V 65kA | 600V 30kA
Side Mount Shunt Trip and Undervoltage Release: None
Front Mount Auxiliary and Trip Contacts: None
Side Mount Auxiliary and Trip Contacts (TESTDESC): None

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 140M-F8N-C32 . Santa Clara Systems carries 54,950 items from Allen Bradley.

140M-F8N-C32 Catalog
