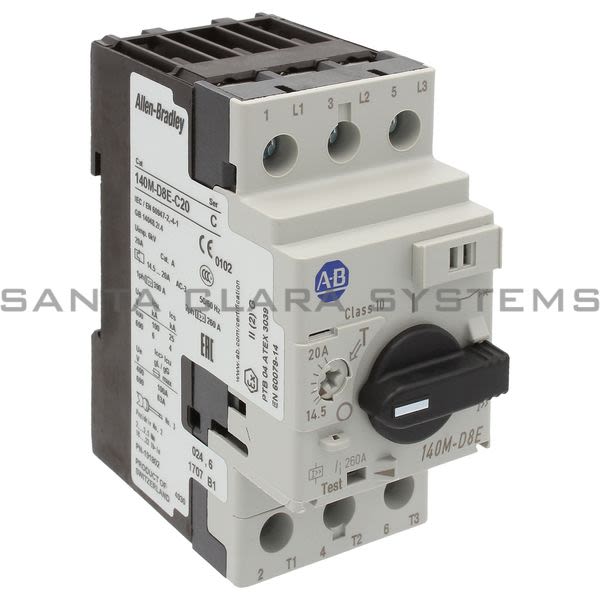

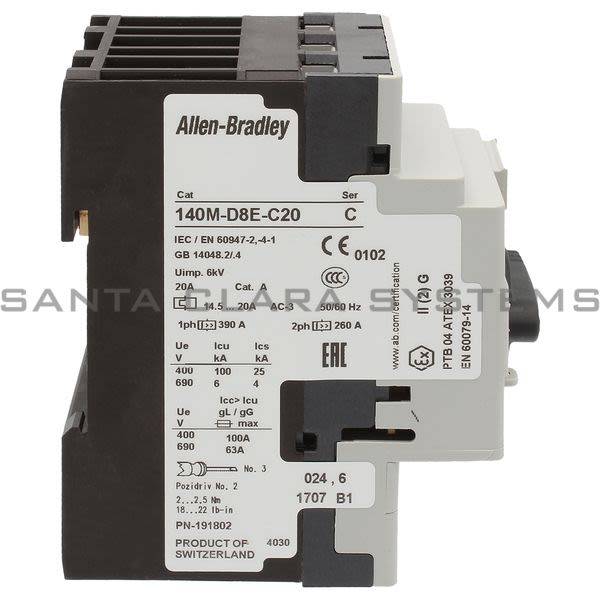

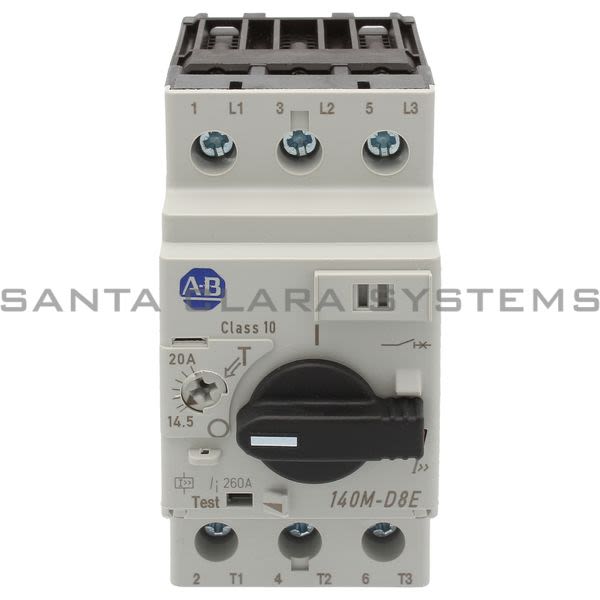

140M-D8E-C20

Allen Bradley - Motor Protection Circuit Breaker

Current response time:

18 Minutes 56 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Motor Protection Circuit Breaker
Frame Size: Frame Size D
Circuit Breaker Type: Motor Protection Circuit Breaker
Supply Voltage: 480Y/277 VAC 50/60HZ
Maximum Available Fault Current: 5 , kA
Breaking Capacity: High Breaking Capacity
Adj. Thermal Current Range (A): 14.5 - 20A

Coordination Type: Type 1 , In case of a short-circuit, damage requiring the exchange , of components or the entire starter is permissible.
Application: Standard Magnetic Trip (Fixed at 13 x le), - Adjustable Overload Protection: Trip Class 10
UL Listed Application Ratings: UL 508 - Manual Motor Controller, Max. Short Circuit Current: 480V 65kA | 600V 30kA, Type 2 Coordination, Max. Short Circuit Current: 480V 65kA | 600V 5kA, UL 508 Manual Self-Protected (Type E) Combination Motor Controller, **Requires 140M-C-TE1 spacing adapter for Type E rating**
Side Mount Shunt Trip and Undervoltage Release: None
Front Mount Auxiliary and Trip Contacts: None
Side Mount Auxiliary and Trip Contacts (TESTDESC): None

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 140M-D8E-C20 . Santa Clara Systems carries 54,520 items from Allen Bradley.
