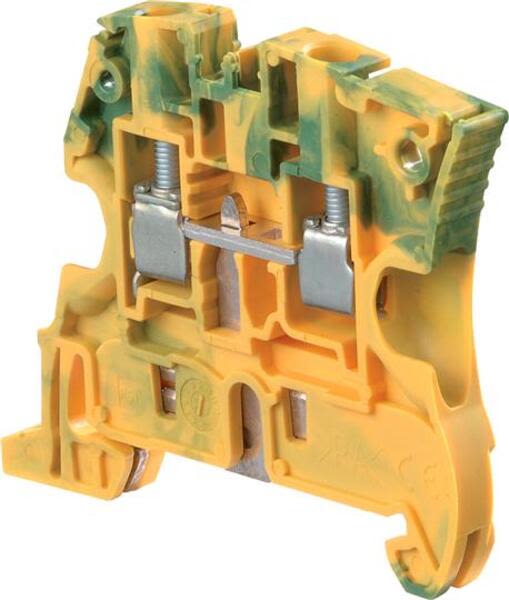

- Description: ZS6-PE Screw Clamp Terminal Block - Ground - Green/Yellow
- Product ID: 1SNK506150R0000
- Extended Product Type: 1SNK506150R0000
- Product Net Weight: 13.7 g
- Product Net Width: 6 mm
- Product Net Height: 59.5 mm
- Product Net Depth: 47.4 mm
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Ambient Air Temperature: Operation -55 ... +110 C Storage -55 ... +110 C
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 8000 V
- Function: Ground
- Color: Green-Yellow
- Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Connecting Capacity Main Circuit: Screw Clamp / Flexible 1x 0.2 ... 6 mm Screw Clamp / Rigid 1x 0.2 ... 6 mm Screw Clamp / With Insulated Ferrrule 1x 0.22 ... 4 mm Screw Clamp / Without Insulated Ferrule 1x 0.22 ... 4 mm
- Product Net Length: 47.4 mm
- Connecting Capacity UL/CSA: Stranded 10 AWG
- Spacing: 6 mm
- Dielectric Test Voltage: 2200 V
- Wire Stripping Length: 10.5 mm
- Insulation Material: Polyamide
- Connecting Capacity Main Circuit UL/CSA: Screw Clamp / Flexible 1x 24 ... 10 AWG Screw Clamp / Rigid 1x 24 ... 10 AWG Screw Clamp / With Insulated Ferrrule 1x 24 ... 12 AWG Screw Clamp / Without Insulated Ferrule 1x 24 ... 12 AWG
- Connection Type: Screw clamp
- Rated Cross-Section: 6 mm
- Number of Levels: 1
- Gauge Type: A4-B3
- EAN: 3472595061501
- Minimum Order Quantity: 20 piece
- Customs Tariff Number: 85369010
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 720 A
- Pollution Degree: 3
- Recommended Screw Driver: 4 mm
- Flammability According to UL94: V0
- Resistance to Vibrations acc. to IEC 60068-2-6: Compliant
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Instructions and Manuals: 1SNK160027C0201
- ATEX Certificate: 1SND162004A1706
- BV Certificate: 1SND161073A0203
- CB Certificate: 1SND161020A0203
- CSA Certificate: 1SND161070A0208
- cUL Certificate: 1SND161040A0206
- Data Sheet, Technical Information: 1SNK161015D0201
- Declaration of Conformity - CE: 1SND225112U1000
- DNV Certificate: 1SND161087A0202
- RINA Certificate: 1SND161088A0200
- RoHS Information: 1SND230491F0206
- E-nummer: 2925934
- ETIM 4: EC000901 - Ground terminal block
- ETIM 5: EC000901 - Ground terminal block
- ETIM 6: EC000901 - Ground terminal block
- Object Classification Code: X
- Package Level 1 Width: 61 mm
- Package Level 1 Length: 117 mm
- Package Level 1 Height: 48 mm
- Package Level 1 Gross Weight: 0.274 kg
- Package Level 1 EAN: 3472595061501
- Package Level 2 Units: 360 piece
- Package Level 2 Width: 200 mm
- Package Level 2 Length: 300 mm
- Package Level 2 Height: 200 mm
- Package Level 2 Gross Weight: 5.110 kg
- Package Level 3 Units: 34560 piece
- Product Packing Type: Box
- Package Level 1 Units: 20 piece
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ZS6-PE . Santa Clara Systems carries 36,937 items from ABB.
- - Secured Snap On Or Remove From The Rail.
- Improve The Safety Of Your Installation In The Event Of A Short-Circuit Thanks To Our Screwless Rail Contact: - Rail Contact Non Operator Dependent
- - Performances Above The Requirements Of Iec 60947-7-2 Terminal Block Standard
