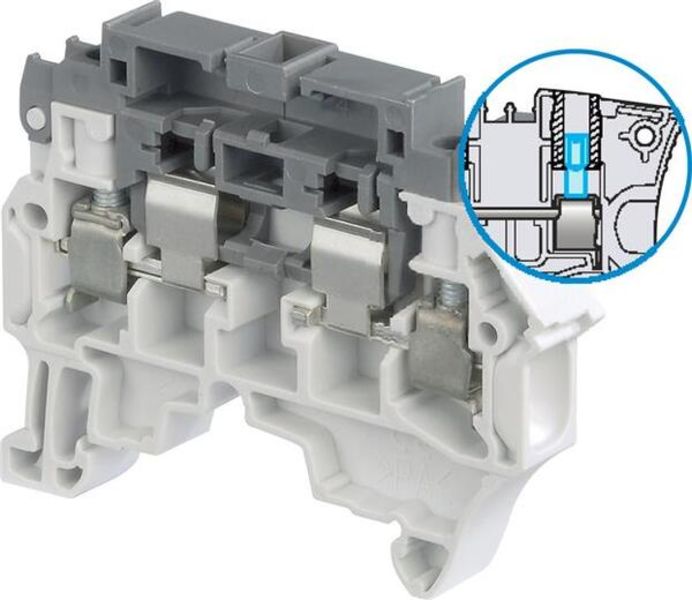

- Description: ZS4-SF1-T2 Screw Clamp Terminal Block - for Fuses 5x20 and 5x25 mm - Grey - with 2 test socket screws DIA 2 mm 0.079 in
- Product ID: 1SNK508411R0000
- Extended Product Type: 1SNK508411R0000
- Product Net Weight: 13.3 g
- Product Net Width: 8 mm
- Product Net Height: 59.7 mm
- Product Net Depth: 45.6 mm
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Ambient Air Temperature: Operation -55 ... +110 C Storage -55 ... +110 C
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 8000 V
- Rated Current (I<sub>n</sub>): Main Circuit 6.3 A
- Function: Fuse
- Color: Grey, Dark Grey
- Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Connecting Capacity Main Circuit: Screw Clamp / Flexible 1x 0.22 ... 4 mm Screw Clamp / Flexible 2x 0.2 ... 2.5 mm Screw Clamp / Rigid 1x 0.2 ... 4 mm Screw Clamp / Rigid 2x 0.2 ... 2.5 mm Screw Clamp / With Insulated Ferrrule 1x 0.22 ... 4 mm Screw Clamp / Without Insulated Ferrule 1x 0.22 ... 4 mm Screw Clamp / With Twin Ferrule 2x 0.22 ... 2.5 mm
- Product Net Length: 45.6 mm
- Maximum Operating Voltage UL/CSA: Main Circuit 300 V
- Rated Voltage (U<sub>r</sub>): 630 V
- Connecting Capacity UL/CSA: Stranded 10 AWG
- Spacing: 8 mm
- Dielectric Test Voltage: 2200 V
- Wire Stripping Length: 11.0 mm
- Insulation Material: Polyamide
- Connecting Capacity Main Circuit UL/CSA: Screw Clamp / Flexible 1x 24 ... 10 AWG Screw Clamp / Flexible 2x 24 ... 14 AWG Screw Clamp / Rigid 1x 24 ... 10 AWG Screw Clamp / Rigid 2x 24 ... 14 AWG Screw Clamp / With Insulated Ferrrule 1x 24 ... 12 AWG Screw Clamp / Without Insulated Ferrule 1x 24 ... 12 AWG Screw Clamp / With Twin Ferrule 2x 24 ... 14 AWG
- Connection Type: Screw clamp
- Rated Cross-Section: 4 mm
- Number of Levels: 1
- Gauge Type: A3-B3
- EAN: 3472595084111
- Minimum Order Quantity: 50 piece
- Customs Tariff Number: 85369010
- Pollution Degree: 3
- Recommended Screw Driver: 3.5 mm
- Flammability According to UL94: V0
- Resistance to Vibrations acc. to IEC 60068-2-6: Compliant
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Instructions and Manuals: 1SNK160027C0201
- BV Certificate: 1SND161073A0203
- CB Certificate: 1SND161030A0204
- CSA Certificate: 1SND161070A0208
- cUL Certificate: 1SND161040A0206
- Data Sheet, Technical Information: 1SNK161036D0201
- Declaration of Conformity - CE: 1SND225103U1000
- DNV Certificate: 1SND161087A0202
- EAC Certificate: 1SND161009A1100
- RINA Certificate: 1SND161088A0200
- RoHS Information: 1SND230491F0206
- E-nummer: 2925968
- ETIM 4: EC000899 - Fuse terminal block
- ETIM 5: EC000899 - Fuse terminal block
- ETIM 6: EC000899 - Fuse terminal block
- Object Classification Code: X
- Package Level 1 Width: 119 mm
- Package Level 1 Length: 201 mm
- Package Level 1 Height: 46 mm
- Package Level 1 Gross Weight: 0.665 kg
- Package Level 1 EAN: 3472595084111
- Package Level 2 Units: 450 piece
- Package Level 2 Width: 300 mm
- Package Level 2 Length: 400 mm
- Package Level 2 Height: 200 mm
- Package Level 2 Gross Weight: 6.530 kg
- Package Level 3 Units: 21600 piece
- Product Packing Type: Box
- Package Level 1 Units: 50 piece
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ZS4-SF1-T2 . Santa Clara Systems carries 36,937 items from ABB.
- - With Built In Test Sockets.
- - Protect Your Circuit With 5x25 And 5x20 Fuse Terminal Blocks (Fuse Not Supplied With The Terminal Blocks)
- - Compliant With Iec 60947-7-3 Standard
