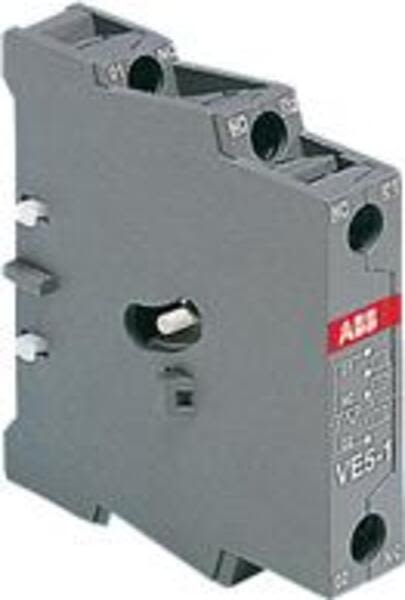

- Description: Block Contactor Accessories | 1SBN030110R1000
- Product ID: 1SBN030110R1000
- Extended Product Type: 1SBN030110R1000
- Product Net Weight: 0.076 kg
- Product Main Type: Accessories for Block Contactors
- Product Name: Block Contactor Accessories
- Rated Insulation Voltage (U<sub>i</sub>): acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V acc. to UL/CSA 600 V
- Terminal Type: Screw Terminals
- Rated Frequency (f): Supply Circuit 50 Hz Supply Circuit 60 Hz
- Power Loss: at Rated Operating Conditions per Pole 0.1 W
- Suitable For: AX06 AX09 AX12 AX18 AX25 AX32 AX40
- Number of Auxiliary Contacts NC: 2
- Mechanical Durability: 5 million
- GOST Certificate: GOST_POCCFRME77B07175
- Mounting Type: rail or plate not supplied
- Version: Mechanical/Electrical
- EAN: 3471522121370
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Package Level 1 Units: 1 piece
- Package Level 1 Gross Weight: 0.076 kg
- Package Level 1 EAN: 3471522121370
- Package Level 2 Units: 90 piece
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Conventional Free-air Thermal Current (I<sub>th</sub>): acc. to IEC 60947-5-1, q = 40 C 16.0 A
- IIT Publishing Status: Level 0 - Information enabled
- Mounted Auxiliary Contacts: 0 NO, 2 NC
- Mounting on Contactors: A 9 ...A 40, N
- Rated Breaking Capacity acc. to IEC 60947-5-1: 10 x Ie AC-15
- Rated Making Capacity acc. to IEC 60947-5-1: 10 x Ie AC-15
- Rated Operational Current AC-15 (I<sub>e</sub>): (220 / 240 V) 4 A (24 / 127 V) 6 A (380 / 440 V) 3 A (500 V) 2 A (690 V) 2 A
- Rated Operational Current DC-13 (I<sub>e</sub>): (125 V) 0.55 A (24 V) 6 A (250 V) 0.3 A (48 V) 2.8 A (72 V) 1 A
- Rated Operational Voltage: Auxiliary Circuit 690 V
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 0.1 s 140.0 A for 1 s 100 A
- Data Sheet, Technical Information: 1SBC100122C0202_Ch04
- Declaration of Conformity - CE: 1SBD250814U1000
- RINA Certificate: RINA_ELE128713XG001
- RoHS Information: 1SBC101061D0201
- E-nummer: 3228825
- ETIM 4: EC002498 - Accessories for low-voltage switch technology
- ETIM 5: EC002498 - Accessories for low-voltage switch technology
- ETIM 6: EC002498 - Accessories for low-voltage switch technology
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VE5-1 . Santa Clara Systems carries 36,936 items from ABB.
- Ve5-1 Block Contactor Accessories
