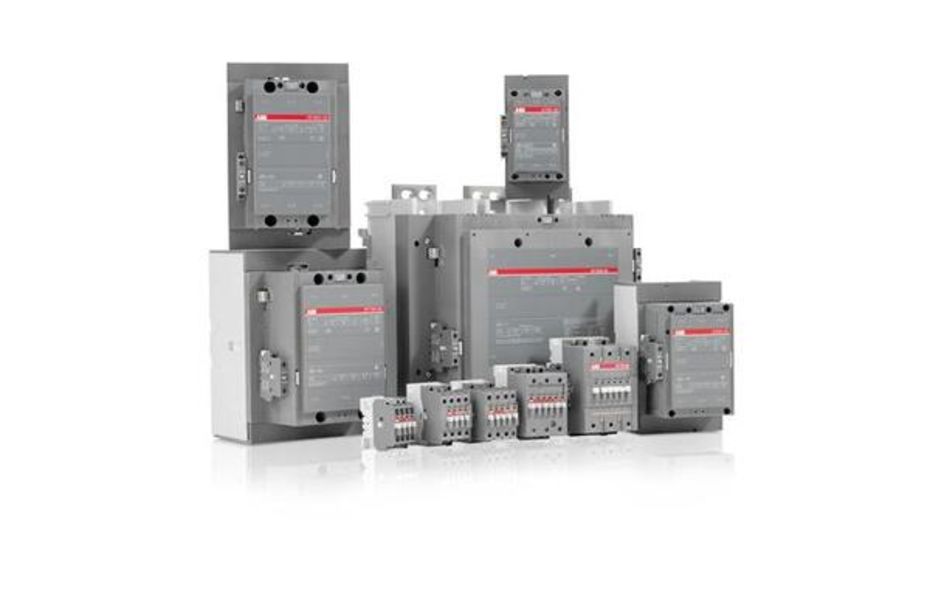

- Description: UA95-30-00RA 230-240V 50Hz Contactor
- Product ID: 1SFL431024R8800
- Extended Product Type: 1SFL431024R8800
- Product Net Weight: 2.000 kg
- Product Net Width: 90.0 mm
- Product Net Height: 170.0 mm
- Product Net Depth: 155.6 mm
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
- Ambient Air Temperature: Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25…+50 °C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40…+70 °C Close to Contactor for Storage -60…+80 °C
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): Main Circuit 8 kV
- Rated Insulation Voltage (U<sub>i</sub>): acc. to UL/CSA 600 V acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
- Terminal Type: Cable Clamp
- Rated Frequency (f): Main Circuit 50 Hz
- Number of Auxiliary Contacts NO: 0
- Number of Auxiliary Contacts NC: 0
- Mechanical Durability: 10 million
- Connecting Capacity Main Circuit: Flexible with Cable End 1x10…70 mm² Bar 30 mm² Rigid 2x6…65 mm²
- Maximum Operating Voltage UL/CSA: Main Circuit 600 V
- Maximum Operating Altitude Permissible: 3000 m
- Rated Control Circuit Voltage (U<sub>c</sub>): 60 Hz 240 … 260 V 50 Hz 230 … 240 V
- Maximum Mechanical Switching Frequency: 3600 cycles per hour
- Connecting Capacity Auxiliary Circuit: Solid 1x1…4 mm² Flexible with Insulated Ferrule 2x0.75…2.5 mm² Stranded 2x1…4 mm² Flexible 2x0.75…2.5 mm² Flexible with Ferrule 1x0.75…2.5 mm²
- Operate Time: Between Coil Energization and NO Contact Closing 10 … 25 ms Between Coil De-energization and NC Contact Closing 7 … 15 ms
- Number of Main Contacts NO: 3
- Number of Main Contacts NC: 0
- Maximum Breaking Capacity: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1160 A cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 800 A
- Coil Consumption: Pull-in at Max. Rated Control Circuit Voltage 60 Hz 450 V·A Holding at Max. Rated Control Circuit Voltage 50 Hz 22 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 350 V·A Holding at Max. Rated Control Circuit Voltage 60 Hz 26 V·A
- Coil Operating Limits: (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) °C
- Connecting terminals (delivered in open position) Main poles: M8 hexagon socket screw with single connector
- EAN: 7320500260432
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Package Level 1 Width: 140 mm
- Package Level 1 Length: 140 mm
- Package Level 1 Height: 170 mm
- Package Level 1 Gross Weight: 2 kg
- Package Level 1 EAN: 7320500260432
- Package Level 1 Units: 1 piece
- Rated Operational Voltage: Main Circuit 1000 V
- Conventional Free-air Thermal Current (I<sub>th</sub>): acc. to IEC 60947-4-1, Open Contactors q = 40 °C 145 A
- Rated Operational Current AC-1 (I<sub>e</sub>): (690 V) 55 °C 135 A (690 V) 40 °C 145 A (690 V) 70 °C 115 A
- Rated Operational Current AC-3 (I<sub>e</sub>): (1000 V) 55 °C 30 A (415 V) 55 °C 96 A (690 V) 55 °C 65 A (220 / 230 / 240 V) 55 °C 96 A (440 V) 55 °C 93 A (380 / 400 V) 55 °C 96 A (500 V) 55 °C 80 A
- Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1: 8 x Ie AC-3
- Rated Making Capacity AC-3 acc. to IEC 60947-4-1: 10 x Ie AC-3
- Maximum Electrical Switching Frequency: AC-3 300 cycles per hour AC-1 300 cycles per hour AC-2 / AC-4 150 cycles per hour
- Resistance to Shock acc. to IEC 60068-2-27: Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: A 20 g Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: A 20 g Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C2 20 g Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: B1 15 g Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C1 20 g Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B2 15 g Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C2 20 g Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B1 5 g Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C1 20 g
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Instructions and Manuals: 5309660-60
- CB Certificate: SE-72476
- CCC Certificate: CQC_2003010304088242
- Data Sheet, Technical Information: 1SBC100122C0202
- Declaration of Conformity - CE: 1SFA1-78
- RoHS Information: 1SFC101046D0203
- ETIM 4: EC001079 - Capacitor magnet contactor
- ETIM 5: EC001079 - Capacitor magnet contactor
- UNSPSC: 39121529
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on UA95-30-00RA-88 . Santa Clara Systems carries 36,972 items from ABB.
- A 3-Phase Contactor Suitable For Capacitor Switching Application. Maximum Permissible Peak Current 100 Times The Nominal Rms Current. Operated With A Control Voltage
- A 3-Phase Contactor Suitable For Capacitor Switching Application. Maximum Permissible Peak Current 100 Times The Nominal Rms Current. Operated With A Control Voltage
- Versions From 24…….690 V
