UA63-30-00-85

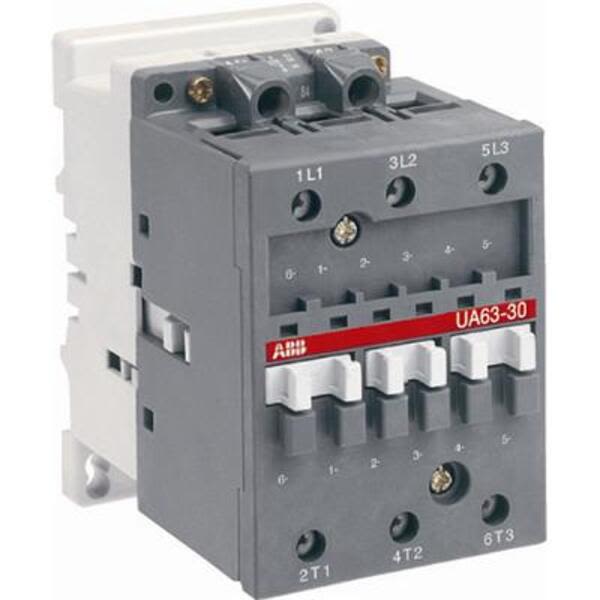

ABB - UA63-30-00 380-400V 50Hz / 400-415V 60Hz Contactor

Current response time:

By 5AM PT on Monday

Emergency?

Description: UA63-30-00 380-400V 50Hz / 400-415V 60Hz Contactor
Product ID: 1SBL371022R8500
Extended Product Type: 1SBL371022R8500
Product Net Weight: 1.160 kg
Product Net Width: 70 mm
Product Net Height: 110 mm
Product Net Depth: 108 mm
Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
Ambient Air Temperature: Near Contactor for Operation in Free Air (0.85 ... 1.1 Uc) -40 ... +55 C Near Contactor for Operation in Free Air (Uc) -40 ... +70 C Close to Contactor for Storage -60 ... +80 C
Rated Impulse Withstand Voltage (Uimp): 8 kV
Rated Insulation Voltage (Ui): acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V acc. to UL/CSA 600 V
Terminal Type: Screw Terminals
Number of Auxiliary Contacts NO: 0
Number of Auxiliary Contacts NC: 0
Mechanical Durability: 10 million
Connecting Capacity Main Circuit: Flexible with Cable End 6 ... 16 mm Rigid Cable 6 ... 25 mm
GOST Certificate: GOST_POCCFRME77B07175
Maximum Operating Altitude Permissible: 3000 m
Rated Control Circuit Voltage (Uc): 50 Hz 380 400 V 60 Hz 400 415 V
Climatic Withstand: acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II
Maximum Mechanical Switching Frequency: 3600 cycles per hour
Connecting Capacity Auxiliary Circuit: Flexible with Cable End 0.75 ... 2.5 mm Rigid Cable 1 ... 4 mm
Operate Time: Between Coil Energization and NO Contact Closing 8 ... 27 ms Between Coil De-energization and NO Contact Opening 4 ... 11 ms
Number of Main Contacts NO: 3
Number of Main Contacts NC: 0
Short-Circuit Protective Devices: gG Type Fuses 1.5 1.8 A
Maximum Breaking Capacity: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 A cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A
Coil Consumption: Pull-in at Max. Rated Control Circuit Voltage 50 Hz 180 V·A Pull-in at Max. Rated Control Circuit Voltage 60 Hz 210 V·A Holding at Max. Rated Control Circuit Voltage 60 Hz 18 V·A Holding at Max. Rated Control Circuit Voltage 60 Hz 5.5 W Holding at Max. Rated Control Circuit Voltage 50 Hz 18 V·A Holding at Max. Rated Control Circuit Voltage 50 Hz 5.5 W Average Holding Value 50 / 60 Hz 18 V·A Average Holding Value 50 / 60 Hz 5.5 W Average Pull-in Value 50 Hz 180 V·A Average Pull-in Value 60 Hz 180 V·A
Coil Operating Limits: (acc. to IEC 60947-4-1) 0.85 ... 1.1 x Uc (at 55 C) C
Connecting terminals (delivered in open position) Main poles: M 6 (+,-) pozidriv 2 screws with 1x (13 x 10 mm) connector

EAN: 3471522090850
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85369085
Package Level 1 Width: 140 mm
Package Level 1 Length: 146 mm
Package Level 1 Height: 96 mm
Package Level 1 Gross Weight: 1.16 kg
Package Level 1 EAN: 3471522090850
Package Level 2 Units: 20 piece
Package Level 3 Units: 160 piece
Package Level 1 Units: 1 piece
Rated Operational Voltage: Main Circuit 690 V
Rated Short-time Withstand Current (Icw): at 40 C Ambient Temp, in Free Air, from a Cold State 10 s 650 A at 40 C Ambient Temp, in Free Air, from a Cold State 15 min 135 A at 40 C Ambient Temp, in Free Air, from a Cold State 1 min 250 A at 40 C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A at 40 C Ambient Temp, in Free Air, from a Cold State 30 s 370 A
RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2008 Q1
Instructions and Manuals: FPTC407700P0003
CB Certificate: CB_FR2880_60002378
CCC Certificate: CCC_2003010304060093
CSA Certificate: CSA_1033838_LR056745
cUL Certificate: UL_071301E39231
Data Sheet, Technical Information: 1SBC101140C0203
Declaration of Conformity - CE: 1SBD250805U1000
EAC Certificate: EAC_RU C-FR ME77 B01010
RoHS Information: 1SBD350079R1000
UL Certificate: UL_071301E39231
ETIM 4: EC001079 - Capacitor magnet contactor
ETIM 5: EC001079 - Capacitor magnet contactor
ETIM 6: EC001079 - Capacitor contactor
UNSPSC: 39121529
Object Classification Code: Q

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on UA63-30-00-85 . Santa Clara Systems carries 36,928 items from ABB.

Electrical Durability Of Contactors Is Equal To 100 000 Operating Cycles. The Ua.. Series 3-Pole Contactors Are Of The Block Type Design. - Main Poles: 3 Main Poles - Control Circuit: Ac Operated With Laminated Magnet Circuit - Accessories: A Wide Range Of Accessories Is Available.

Ua63 3-Pole Contactors For Capacitor Switching
Can Be Used For The Switching Of Capacitor Banks Whose Inrush Current Peaks Are Less Than Or Equal To 100 Times Nominal Rms Current. The Table Below Gives The Permissible Powers According To Operational Voltage And Temperature Close To The Contactor. It Also Specifies The Maximum Peak Current Î Values Accepted By The Contactor. The Capacitors Must Be Discharged (Maximum Residual Voltage At Terminals ≤ 50 V) Before Being Re-Energized When The Contactors Are Making. In These Conditions
