TA200DU-110-V1000

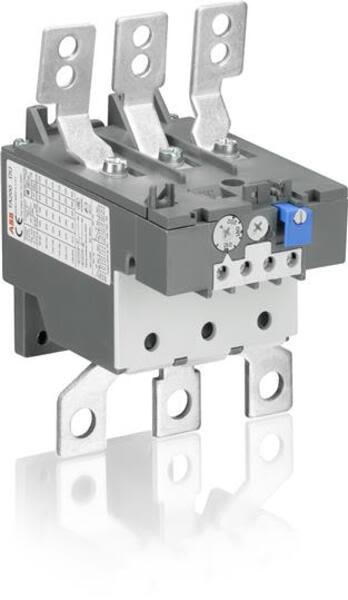

ABB - TA200DU-110-V1000 Thermal Overload Relay

Current response time:

17 Minutes 20 Seconds

Description: TA200DU-110-V1000 Thermal Overload Relay
Product ID: 1SAZ421301R1002
Extended Product Type: 1SAZ421301R1002
Product Net Weight: 0.76 kg
Product Net Width: 104 mm
Product Net Height: 151 mm
Product Net Depth: 126 mm
Degree of Protection: Housing IP20 Main Circuit Terminals IP00
Ambient Air Temperature: Operation -25 ... +55 C Operation Compensated -25 ... +55 C Storage -40 ... +70 C
Standards: IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1
Rated Impulse Withstand Voltage (Uimp): Auxiliary Circuit 6 kV Main Circuit 6 kV
Rated Insulation Voltage (Ui): 690 V
Number of Poles: 3
Rated Frequency (f): Auxiliary Circuit 50 Hz Auxiliary Circuit 60 Hz Auxiliary Circuit DC Main Circuit 60 Hz Main Circuit 50 Hz Main Circuit DC
Power Loss: at Rated Operating Conditions per Pole 2.5 ... 4.7 W
Suitable For: A145 A185 AF145 AF185 AF190 AF205
eClass: 7.0 27371501
Tightening Torque: Auxiliary Circuit 1 ... 1.3 N·m Main Circuit 25 N·m
Mounting Position: Position 1 to 6
Number of Auxiliary Contacts NO: 1
Number of Auxiliary Contacts NC: 1
Connecting Capacity Main Circuit: Hole Diameter > 10 mm Rigid or Flexible with Cable Lug 1x 25 ... 120 mm
GOST Certificate: 1SAA941000-2704
Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC
Maximum Operating Altitude Permissible: 2000 m
Tightening Torque UL/CSA: Auxiliary Circuit 12 in·lb Main Circuit 220 in·lb
Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm Flexible 1/2x 0.75 ... 2.5 mm Rigid 1/2x 0.75 ... 4 mm
Wire Stripping Length: Auxiliary Circuit 9 mm
GL Certificate: 1SAA941000-0403
Connecting Capacity Main Circuit UL/CSA: Flexible 1x 4-0000 AWG Stranded 1x 4-0000 AWG
Ampere Rating UL/CSA: 110 A
Number of Protected Poles: 3
EAN: 4013614305917
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85364900
Package Level 1 Width: 165 mm
Package Level 1 Height: 133 mm
Package Level 1 Length: 151 mm
Package Level 1 Gross Weight: 1.01 kg
Package Level 2 Units: 4 piece
Package Level 2 Width: 280 mm

Package Level 2 Height: 210 mm
Package Level 2 Length: 395 mm
Package Level 2 Gross Weight: 8.786 kg
Package Level 2 EAN: 4013614494307
Package Level 1 Units: 1 piece
Rated Operational Voltage: Auxiliary Circuit 440 V DC Auxiliary Circuit 500 V AC Main Circuit 690 V AC
Rated Operational Current (Ie): 110 A
Rated Operational Current AC-3 (Ie): 110 A
Conventional Free-air Thermal Current (Ith): Auxiliary Circuit NC 10 A Auxiliary Circuit NO 6 A
Rated Operational Current AC-15 (Ie): (120 V) NC 3 A (120 V) NO 1.5 A (240 V) NC 3 A (240 V) NO 1.5 A (400 V) NC 1.9 A (400 V) NO 1 A (440 V) NC 1 A (440 V) NO 1 A (500 V) NC 1 A (500 V) NO 1 A
Rated Operational Current DC-13 (Ie): (125 V) NC 0.25 A (125 V) NO 0.25 A (24 V) NC 1.25 A (24 V) NO 1.25 A (250 V) NC 0.12 A (250 V) NO 0.04 A (60 V) NC 0.25 A (60 V) NO 0.25 A
Pollution Degree: 3
Recommended Screw Driver: Auxiliary Circuit Pozidriv 2 Main Circuit Open Bars
Setting Range: 80 ... 110 A
Ambient Air Temperature Compensation: Yes
Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 12g
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Contact Rating UL/CSA: (NO:) B600 (NC:) C600
Connecting Capacity Auxiliary Circuit UL/CSA: Flexible 1/2x 18-14 AWG Stranded 1/2x 18-14 AWG
Data Sheet, Technical Information (Part 2): 1SAZ400502F0002
Instructions and Manuals: 2CDC106028M6801
Instructions and Manuals (Part 2): 2CDC106006M5701
ABS Certificate: 1SAA941000-0102
ATEX Certificate: 1SAA941000-3901
BV Certificate: 1SAA941000-0201
CB Certificate: 1SAA941004-2003
CCC Certificate: 1SAA941001-3803
cUL Certificate: cUL_E48139
Data Sheet, Technical Information: 1SBC100173C0201
Declaration of Conformity - CE: 1SAD938510-0043
DNV Certificate: 1SAA941000-0303
EAC Certificate: 1SAA941002-2701
LR Certificate: 1SAA941000-0504
RMRS Certificate: 1SAA941000-0703
RoHS Information: 1SAA941003-4404
UL Certificate: UL_E48139
ETIM 4: EC000106 - Thermal overload relay
ETIM 5: EC000106 - Thermal overload relay
ETIM 6: EC000106 - Thermal overload relay
UNSPSC: 39121521
Object Classification Code: F

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TA200DU-110-V1000 . Santa Clara Systems carries 36,881 items from ABB.

Trip-Free Mechanism
Stop- And Test Function And A Trip Indication. The Overload Relays Are Connected Directly To The Block Contactors. Single Mounting Kits Are Available As Accessory.

The Ta200du-110-V1000 Thermal Overload Relay Is An Economic Electromechanical Protection Device For The Main Circuit. It Offers Reliable And Fast Protection For Motors In The Event Of Overload Or Phase Failure. The Device Has Trip Class 10a. Further Features Are The Temperature Compensation
Trip Contact (Nc)
Signal Contact (No)
Automatic- Or Manual Reset Selectable
