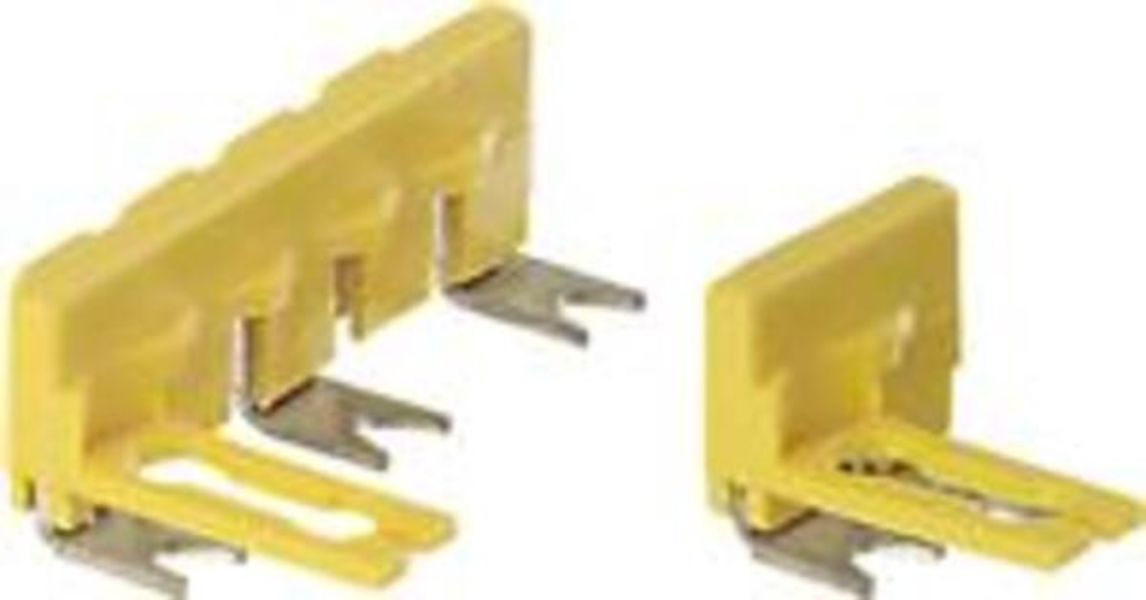

- Description: SC-JB8-3 Short circuit bridges - Yellow
- Product ID: 1SNK900653R0000
- Extended Product Type: 1SNK900653R0000
- Product Net Weight: 3.4 g
- Product Net Width: 8 mm
- Product Net Height: 24.6 mm
- Product Net Depth: 13.9 mm
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Ambient Air Temperature: Operation -55 ... +110 C Storage -55 ... +110 C
- Rated Current (I<sub>n</sub>): Main Circuit 5 A
- Function: Short Circuit Bridges
- Color: Yellow
- Suitable For: D6/8.ST.RS ZS10-PE-R1 ZS10-R1 ZS10-ST ZS10-ST-T4
- Spacing: 8 mm
- Insulation Material: Polyamide
- EAN: 3472599872950
- Minimum Order Quantity: 25 piece
- Customs Tariff Number: 85389099
- Recommended Screw Driver: 3.5 mm
- Flammability According to UL94: V0
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Instructions and Manuals: 1SNK160027C0201
- RoHS Information: 1SND230528F0200
- Object Classification Code: X
- Package Level 1 Width: 125 mm
- Package Level 1 Length: 170 mm
- Package Level 1 Height: 20 mm
- Package Level 1 Gross Weight: 0.085 kg
- Package Level 1 EAN: 3472599872950
- Package Level 2 Units: 500 piece
- Package Level 2 Width: 175 mm
- Package Level 2 Length: 227 mm
- Package Level 2 Height: 130 mm
- Package Level 2 Gross Weight: 1.800 kg
- Package Level 3 Units: 24000 piece
- Product Packing Type: Bag
- Package Level 1 Units: 25 piece
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SC-JB8-3 . Santa Clara Systems carries 36,881 items from ABB.
- - Adapted Hook Shape Maintains The Bridge On The Terminal Block In The Non Short-Circuited Position
- - The Orange Version Can Be Used As Fixed Jumpers.
- - Allow Safe Short-Circuiting Of Current Tranformers Circuits
- - Insulated
- - Fully Operated By Screwdriver
- - Short Circuited Fixed Position Secured Thanks To Ajs9 Tightening
