S801S-UCB20

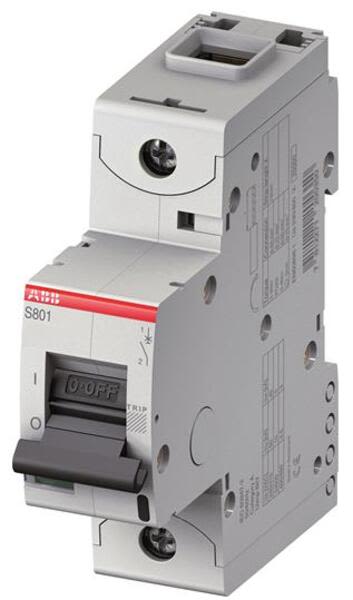

ABB - High Performance Circuit Breaker - S800S - Tripping characteristic B - Number of poles 1 - Rated operational current 20A

Current response time:

12 Minutes 49 Seconds

Description: High Performance Circuit Breaker - S800S - Tripping characteristic B - Number of poles 1 - Rated operational current 20A
Product ID: 2CCS861001R1205
Extended Product Type: 2CCS861001R1205
Product Net Weight: 0.25 kg
Product Net Width: 27 mm
Product Net Height: 95 mm
Product Net Depth: 82.5 mm
Ambient Air Temperature: Operation -25 ... +60 °C Storage -40 ... +70 °C
Standards: IEC/EN 60947-2
Number of Poles: 1
Rated Current (In): 20 A
Power Loss: 3.5 W
Tripping Characteristic: UC-B
Connecting Capacity: Flexible 1 ... 50 mm² Flexible Stranded 1 …70 mm²
Contact Position Indication: ON / OFF / TRIP
EAN: 7612271202873
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362020
Package Level 1 Width: 105 mm

Package Level 1 Length: 33 mm
Package Level 1 Height: 99 mm
Package Level 1 Gross Weight: 0.27 kg
Package Level 1 EAN: 7612271202873
Package Level 2 Units: 1
Package Level 1 Units: 1 piece
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Rated Operational Voltage: 250 V DC
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (250 V DC) 50 kA
Rated Service Short-Circuit Breaking Capacity (Ics): (250 V DC) 50 kA
Instructions and Manuals: 2CCC413016M0002
Data Sheet, Technical Information: 2CCC413003C0203
Declaration of Conformity - CE: 2CCC413016D0601
RoHS Information: 2CCC413008D0201
ETIM 4: EC000042 - Miniature circuit breaker (MCB)
ETIM 5: EC000042 - Miniature circuit breaker (MCB)
ETIM 6: EC000042 - Miniature circuit breaker (MCB)
Object Classification Code: F
