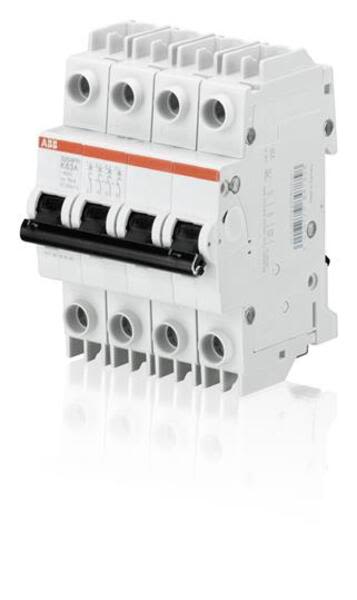

- Description: Miniature Circuit Breaker - S200PR - 4P - K - 32 A
- Product ID: 2CDS274427R0537
- Extended Product Type: 2CDS274427R0537
- Product Net Weight: 0.56 kg
- Product Net Width: 70 mm
- Product Net Height: 100 mm
- Product Net Depth: 71 mm
- Degree of Protection: IP20
- Ambient Air Temperature: Operation -25 ... +55 C Storage -40 ... +70 C
- Standards: IEC/EN 60947-2 UL 1077 CSA 22.2 No. 235
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 4 kV (6.2 kV @ sea level) (5.0 kV @ 2000 m)
- Rated Insulation Voltage (U<sub>i</sub>): acc. to IEC/EN 60664-1 500 V
- Number of Poles: 4
- Terminal Type: Ring-Tongue Terminals
- Rated Current (I<sub>n</sub>): 32 A
- Rated Frequency (f): 50 Hz 60 Hz
- Power Loss: 18.8 W at Rated Operating Conditions per Pole 4.7 W
- Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- eClass: 7.0 27141901
- Tightening Torque: 2.8 N·m
- Actuator Type: Insulation group II, black, sealable
- Mounting Position: Any
- Tripping Characteristic: K
- Maximum Operating Voltage UL/CSA: 480Y / 277 V AC
- Contact Position Indication: Red ON / Green OFF
- Tightening Torque UL/CSA: 25 in·lb
- Overvoltage Category: III
- Environmental Conditions: 28 cycles with 55 C / 90-96 % and 25 C / 95-100 %
- Housing Material: Insulation Group I, RAL 7035
- Electrical Endurance: 10000 AC cycle
- Mechanical Endurance: 20000 cycle
- Connecting Capacity UL/CSA: Conductor 14-4 AWG
- Operational Voltage: Minimum 12 V AC
- Dielectric Test Voltage: 50 / 60 Hz, 1 min: 2 kV
- Energy Limiting Class: 3
- Screw Terminal Type: Ring-Tongue Terminal with Captive Screw
- Interrupting Rating acc. to UL1077: 10 kA
- EAN: 4016779847803
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362010
- Package Level 1 Width: 121 mm
- Package Level 1 Length: 191 mm
- Package Level 1 Height: 82 mm
- Package Level 1 Gross Weight: 1.17 kg
- Package Level 1 EAN: 4016779849807
- Package Level 2 EAN: 4016779983310
- Package Level 1 Units: 2 piece
- Resistance to Shock acc. to IEC 60068-2-27: 25g / 2 shocks / 13 ms
- Resistance to Vibrations acc. to IEC 60068-2-6: 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
- Rated Operational Voltage: acc. to IEC 60947-2 400 V AC
- Rated Ultimate Short-Circuit Breaking Capacity (I<sub>cu</sub>): 15 kA 15 kA (DC) kA
- Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>): 11.2 kA 15 kA
- Pollution Degree: 2
- Remarks: IP40 in enclosure with cover
- Recommended Screw Driver: Pozidriv 2
- Instructions and Manuals: 2CDC002138D0201
- Data Sheet, Technical Information: 2CDC002138D0201
- Declaration of Conformity - CE: 2CDK400586D2702
- ETIM 4: EC000042 - Miniature circuit breaker (MCB)
- ETIM 5: EC000042 - Miniature circuit breaker (MCB)
- ETIM 6: EC000042 - Miniature circuit breaker (MCB)
- UNSPSC: 39121614
- Object Classification Code: F
