OVR-PV-40-1000P-TS

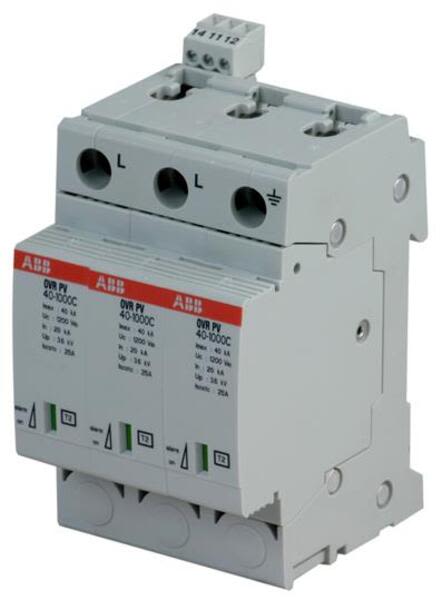

ABB - OVR PV 40 1000P TS

Current response time:

By 5AM PT on Tuesday

Emergency?

Description: OVR PV 40 1000P TS
Product ID: 2CTB803953R6500
Extended Product Type: 2CTB803953R6500
Product Net Weight: 375 g
Product Net Width: 53.4 mm
Product Net Height: 95 mm
Product Net Depth: 64.8 mm
Product Main Type: T2
Product Name: Surge Protective Devices
Standards: EN 50539-11
Suitable For: To protect the systems against the transient overvoltage (lightning)
Number of Protected Poles: 2
Version: Plug-in
EAN: 3660308516541
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85363090
Arrester Class: II
Discharge Current (<sub></sub>): Nominal 20 kA Maximum 40 kA
Impulse Current: 2 kA

Maximum Continuous Operating Voltage (U<sub>c</sub>): 1100 V
Voltage Rating DC: 1100 V
Voltage Protection Level ( Up): (L-N) 3.8 kV (N-PE) 3.8 kV (L-PE) 3.8 kV
Short Circuit Withstand Icc: 10 kA
Auxiliary Circuit Load: Minimum 12Vdc - 10mA Maximum 250Vac - 1A
Width in Number of Modular Spacings: 3
Package Level 1 Units: 1 piece
Package Level 1 Width: 117 mm
Package Level 1 Length: 61 mm
Package Level 1 Height: 82 mm
Package Level 1 Gross Weight: 400 g
Package Level 1 EAN: 3660308516541
Data Sheet, Technical Information: 2CTC432081D1701
Declaration of Conformity - CE: 2CTC436004G1701
Instructions and Manuals: 2CTC432008M1701
UL Certificate: N
ETIM 4: EC000941 - Surge protection device for power supply systems
ETIM 5: EC000941 - Surge protection device for power supply systems
