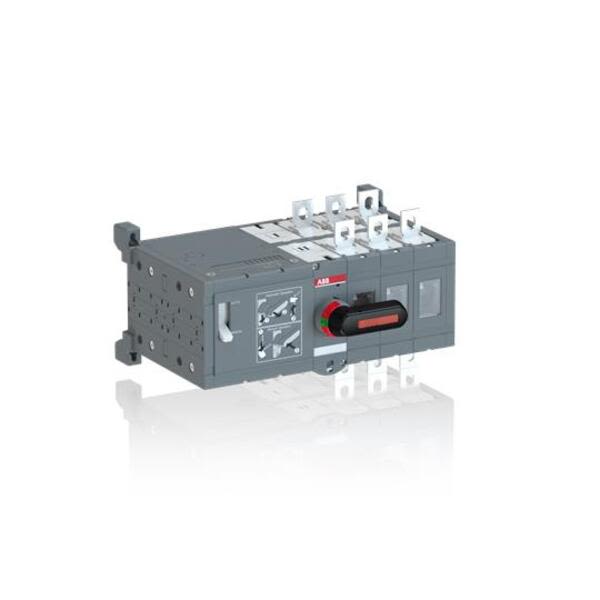

- Description: OTM250E3CM24D MOTORIZED C/O SWITCH
- Product ID: 1SCA022845R8370
- Extended Product Type: 1SCA022845R8370
- Product Net Weight: 6.6 kg
- Product Net Width: 272 mm
- Product Net Height: 150 mm
- Product Net Depth: 197 mm
- Product Main Type: OTM250_CM
- Product Name: MOTORIZED C/O SWITCH
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 12 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1000 V
- Number of Poles: 3
- Power Loss: 6.5 W
- Switches Operating Mechanism: Mechanism at the End of the Switch
- Position of Line Terminals: Top In - Bottom Out
- EAN: 6417019296623
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 212 mm
- Package Level 1 Height: 219 mm
- Package Level 1 Length: 389 mm
- Package Level 1 Gross Weight: 5.7 kg
- Package Level 1 EAN: 6417019296623
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 C 250 A
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 250 A
- IIT Publishing Status: Level 0 - Information enabled
- Pollution Degree: 3
- Rated Operational Current AC-21A (I<sub>e</sub>): (500 V) 250 A (690 V) 250 A
- Rated Operational Current AC-22A (I<sub>e</sub>): (500 V) 250 A (690 V) 250 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (220 ... 240 V) 75 kW (400 V) 140 kW (500 V) 170 kW (690 V) 250 kW
- Rated Operational Voltage: 1000 V
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 8 kiloampere rms
- Data Sheet, Technical Information: 1SCC303003C0201
- Declaration of Conformity - CE: 1SCC303031D0201
- RoHS Information: 1SCC303036D0202
- ETIM 5: EC000216 - Switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OTM250E3CM24D . Santa Clara Systems carries 36,937 items from ABB.
- Including A Handle For Manual Operation
- Including A Handle For Manual Operation
- Bolt Kit With Nut And Washers For All Terminals And Male Connectors For Control Circuits. Include A Storage Clip For The Handle And Spare Fuses.
