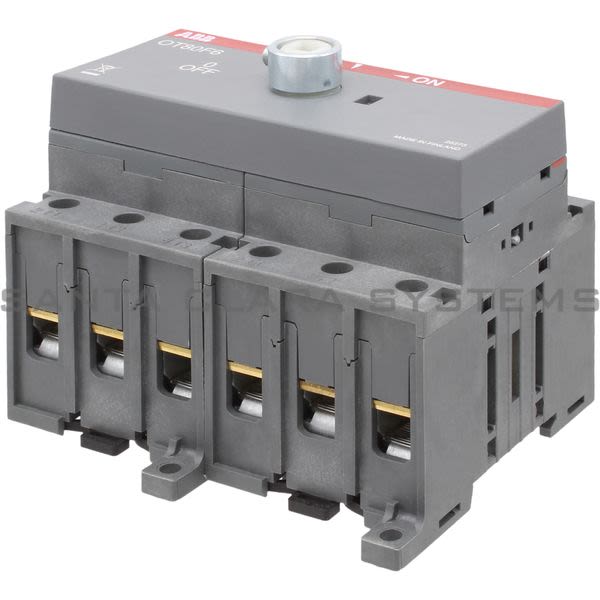

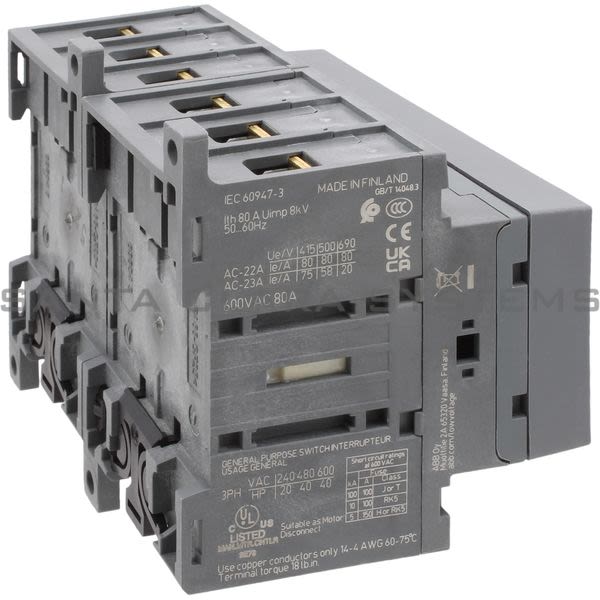

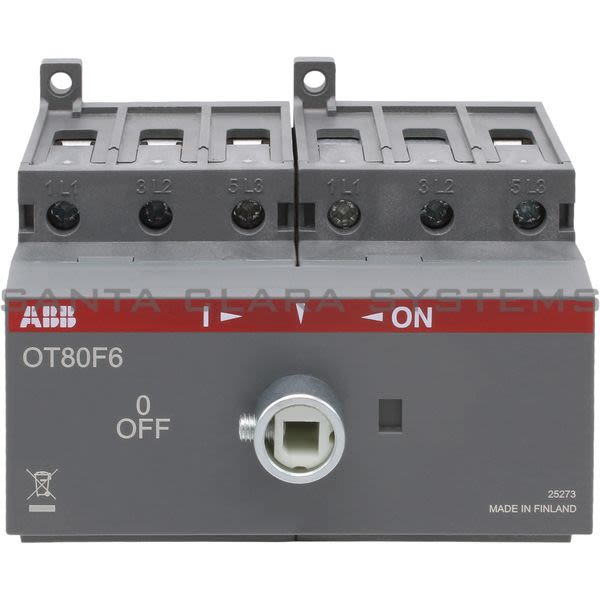

- Description: OT80F6 switch-disconnector
- Product ID: 1SCA105427R1001
- Extended Product Type: 1SCA105427R1001
- Product Net Weight: 0.61 kg
- Product Net Width: 105 mm
- Product Net Height: 92 mm
- Product Net Depth: 85 mm
- Product Main Type: OT80
- Product Name: Switch-disconnector
- Standards: IEC
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 8 kV
- Rated Insulation Voltage (U<sub>i</sub>): 750 V
- Number of Poles: 6
- Terminal Type: Screw Terminals
- Power Loss: at Rated Operating Conditions per Pole 2.8 W
- Mounting Type: Modular
- Handle Type: None
- Cable Cross-Section: 1.535 mm
- Ampere Rating UL/CSA: 60 A
- Horsepower Rating UL/CSA: (acc. to UL 200 V) 20 Hp (acc. to UL 208 V) 20 Hp (acc. to UL 240 V) 20 Hp (acc. to UL 480 V) 40 Hp (acc. to UL 600 V) 40 Hp
- Switches Operating Mechanism: Mechanism on Top of the Switch
- Position of Line Terminals: Top In - Bottom Out
- Special Functions: No
- Operating Mode: Front Operated
- EAN: 6417019393629
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 102 mm
- Package Level 1 Height: 102 mm
- Package Level 1 Length: 205 mm
- Package Level 1 Gross Weight: 0.61 kg
- Package Level 1 EAN: 6417019393629
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q3
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 C 80 A
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 80 A
- Earthing Switch Type: No Additional Type
- IIT Publishing Status: Level 0 - Information enabled
- Includes: None
- Pollution Degree: 3
- Rated Operational Current AC-21A (I<sub>e</sub>): (690 V) 80 A (500 V) 80 A (380 ... 415 V) 80 A
- Rated Operational Current AC-22A (I<sub>e</sub>): (380 ... 415 V) 80 A (500 V) 80 A (690 V) 80 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (500 V) 58 A (690 V) 20 A (380 ... 415 V) 75 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (220 ... 240 V) 22 kW (400 V) 37 kW (415 V) 37 kW (500 V) 37 kW (690 V) 18.5 kW
- Rated Operational Voltage: 750 V
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 1 kiloampere rms
- Data Sheet, Technical Information: 1SCC301020C0201
- Declaration of Conformity - CE: 1SCC301167D0201
- RoHS Information: 1SCC301183D0201
- ETIM 5: EC000216 - Switch disconnector
- Object Classification Code: Q
