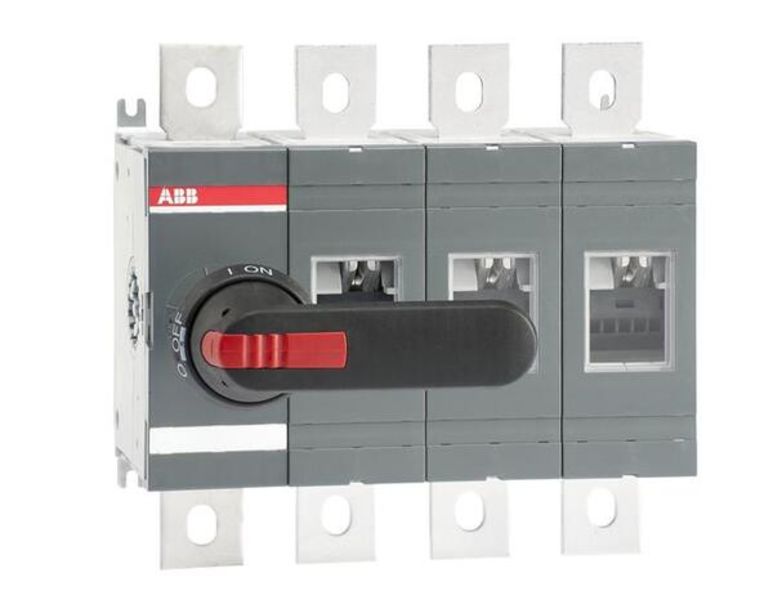

- Description: OT630E03N3P switch-disconnector
- Product ID: 1SCA022779R4860
- Extended Product Type: 1SCA022779R4860
- Product Net Weight: 6.7 kg
- Product Net Width: 266 mm
- Product Net Height: 250 mm
- Product Net Depth: 140 mm
- Product Main Type: OT630
- Product Name: Switch-disconnector
- Standards: IEC
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 12 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1000 V
- Number of Poles: 4
- Terminal Type: Lug terminals
- Power Loss: at Rated Operating Conditions per Pole 25 W
- Tightening Torque: Wire-Clamp 50 ... 75 N·m
- Dielectric Test Voltage: 10000 V
- Mounting Type: Normal
- Handle Type: Pistol
- Switches Operating Mechanism: Mechanism at the End of the Switch
- Position of Line Terminals: Top In - Bottom Out
- Special Functions: No
- Operating Mode: Front Operated
- EAN: 6417019253725
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 260 mm
- Package Level 1 Height: 152 mm
- Package Level 1 Length: 335 mm
- Package Level 1 Gross Weight: 6.7 kg
- Package Level 1 EAN: 6417019253725
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-06-01
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 C 630 A
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 630 A
- Earthing Switch Type: No Additional Type
- IIT Publishing Status: Level 0 - Information enabled
- Includes: Handle and Shaft
- Pollution Degree: 3
- Rated Operational Current AC-21A (I<sub>e</sub>): (690 V) 630 A (500 V) 630 A (380 ... 415 V) 630 A
- Rated Operational Current AC-21B (I<sub>e</sub>): (690 V) 630 A (500 V) 630 A (380 ... 415 V) 630 A
- Rated Operational Current AC-22A (I<sub>e</sub>): (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A
- Rated Operational Current AC-22B (I<sub>e</sub>): (690 V) 630 A (500 V) 630 A (415 V) 630 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (500 V) 630 A (380 ... 415 V) 630 A (690 V) 630 A
- Rated Operational Current AC-23B (I<sub>e</sub>): (690 V) 630 A (500 V) 630 A (380 ... 415 V) 630 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (690 V) 630 kW (500 V) 400 kW (400 ... 415 V) 355 kW (400 V) 355 kW (220 ... 240 V) 200 kW
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 20000 A
- Terminal Width: 39 mm
- BV Certificate: 1SCC301103D0201
- Data Sheet, Technical Information: 1SCC301020C0201
- Declaration of Conformity - CE: 1SCC301140D0201
- RoHS Information: 1SCC301149D0202
- ETIM 5: EC000216 - Switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OT630E03N3P . Santa Clara Systems carries 36,881 items from ABB.
- Including A Black On-Off Plastic Handle And Shaft As Standard. The Handle Is Ip65 Protected
- Including A Black On-Off Plastic Handle And Shaft As Standard. The Handle Is Ip65 Protected
- <Br/>padlockable In The Off-Position And With Door Interlock In The On-Position. The Shaft Is Adjustable For<Br/>a Range Of Installation Depths.
