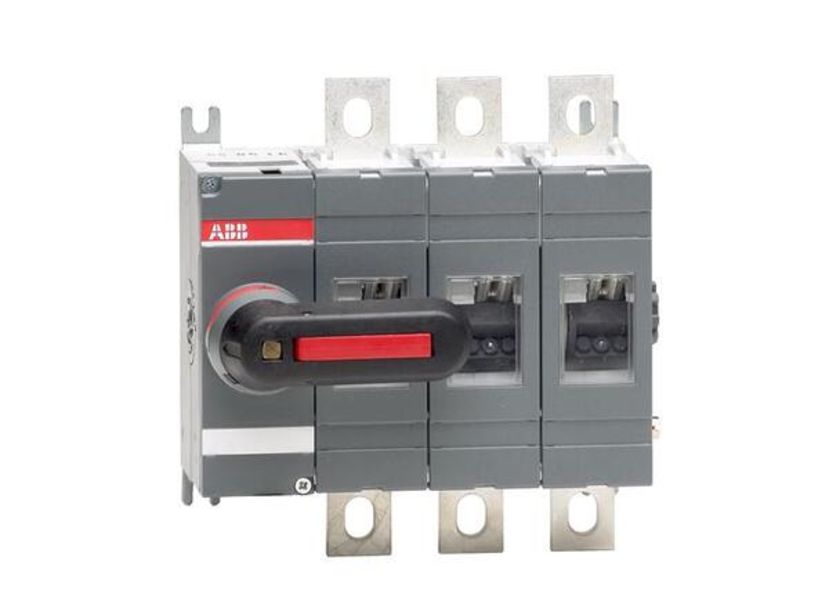

- Description: OT250E03K switch-disconnector
- Product ID: 1SCA022763R5040
- Extended Product Type: 1SCA022763R5040
- Product Net Weight: 1.5 kg
- Product Net Width: 146 mm
- Product Net Height: 150 mm
- Product Net Depth: 107 mm
- Product Main Type: OT250
- Product Name: Switch-disconnector
- Standards: IEC
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 12 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1000 V
- Number of Poles: 3
- Terminal Type: Lug terminals
- Power Loss: at Rated Operating Conditions per Pole 6.5 W
- Tightening Torque: Wire-Clamp 15 ... 22 N·m
- Dielectric Test Voltage: 10000 V
- GL Certificate: 1SCC301139D0201
- Mounting Type: Normal
- Handle Type: Direct
- Switches Operating Mechanism: Mechanism at the End of the Switch
- Position of Line Terminals: Top In - Bottom Out
- Special Functions: No
- Operating Mode: Front Operated
- EAN: 6417019249292
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 260 mm
- Package Level 1 Height: 130 mm
- Package Level 1 Length: 212 mm
- Package Level 1 Gross Weight: 1.5 kg
- Package Level 1 EAN: 6417019249292
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-06-01
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 C 250 A
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 250 A
- Earthing Switch Type: No Additional Type
- IIT Publishing Status: Level 0 - Information enabled
- Includes: Handle and Shaft
- Pollution Degree: 3
- Rated Operational Current AC-21A (I<sub>e</sub>): (500 V) 250 A (380 ... 415 V) 250 A (690 V) 250 A
- Rated Operational Current AC-21B (I<sub>e</sub>): (690 V) 250 A (500 V) 250 A (380 ... 415 V) 250 A
- Rated Operational Current AC-22A (I<sub>e</sub>): (380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A
- Rated Operational Current AC-22B (I<sub>e</sub>): (690 V) 250 A (500 V) 250 A (415 V) 250 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (500 V) 250 A (690 V) 250 A (380 ... 415 V) 250 A
- Rated Operational Current AC-23B (I<sub>e</sub>): (690 V) 250 A (500 V) 250 A (380 ... 415 V) 250 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (690 V) 250 kW (500 V) 170 kW (400 ... 415 V) 145 kW (400 V) 140 kW (220 ... 240 V) 75 kW
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 8000 A
- Terminal Width: 20 mm
- BV Certificate: 1SCC301103D0201
- Data Sheet, Technical Information: 1SCC301020C0201
- Declaration of Conformity - CE: 1SCC301134D0202
- LR Certificate: 1SCC301144D0201
- RoHS Information: 1SCC301149D0202
- ETIM 5: EC000216 - Switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OT250E03K . Santa Clara Systems carries 36,939 items from ABB.
- Including A Black Test-Off-On Plastic Handle And Shaft As Standard. The Handle Is Padlockable In The Off-Position.
