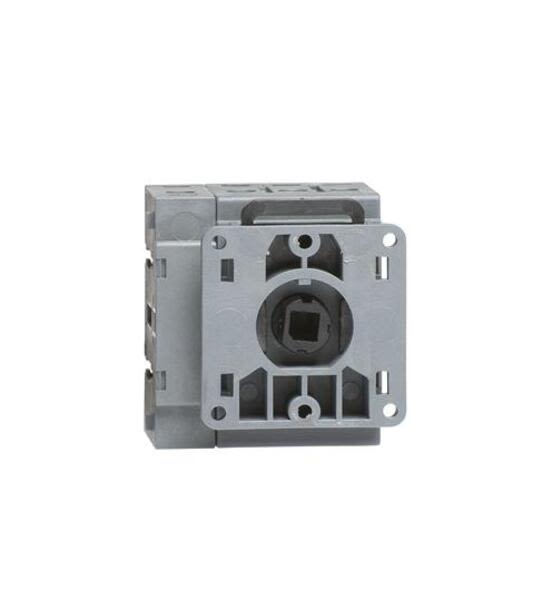

- Description: OT16FT4N2 switch-disconnector
- Product ID: 1SCA105711R1001
- Extended Product Type: 1SCA105711R1001
- Product Net Weight: 0.16 kg
- Product Net Width: 49 mm
- Product Net Height: 54 mm
- Product Net Depth: 52 mm
- Product Main Type: OT16
- Product Name: Switch-disconnector
- Standards: IEC
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 8 kV
- Rated Insulation Voltage (U<sub>i</sub>): 750 V
- Number of Poles: 4
- Terminal Type: Screw Terminals
- Power Loss: at Rated Operating Conditions per Pole 0.3 W
- Mounting Type: Door Mounting
- Handle Type: None
- Order Multiple: 10 piece
- Cable Cross-Section: 0.7510 mm
- Ampere Rating UL/CSA: 16 A
- Horsepower Rating UL/CSA: (acc. to UL 200 V) 3 Hp (acc. to UL 208 V) 3 Hp (acc. to UL 240 V) 5 Hp (acc. to UL 480 V) 10 Hp (acc. to UL 600 V) 10 Hp
- Switches Operating Mechanism: Mechanism on Top of the Switch
- Position of Line Terminals: Top In - Bottom Out
- Special Functions: No
- Operating Mode: Front Operated
- EAN: 6417019389950
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 67 mm
- Package Level 1 Height: 61 mm
- Package Level 1 Length: 79 mm
- Package Level 1 Gross Weight: 0.16 kg
- Package Level 1 EAN: 6417019389950
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q3
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 C 25 A
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 25 A
- Earthing Switch Type: No Additional Type
- IIT Publishing Status: Level 0 - Information enabled
- Includes: None
- Pollution Degree: 3
- Rated Operational Current AC-21A (I<sub>e</sub>): (380 ... 415 V) 16 A (500 V) 16 A (690 V) 10 A
- Rated Operational Current AC-22A (I<sub>e</sub>): (380 ... 415 V) 16 A (500 V) 16 A (690 V) 16 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (500 V) 16 A (690 V) 16 A (380 ... 415 V) 16 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (220 ... 240 V) 3 kW (400 V) 7.5 kW (415 V) 7.5 kW (500 V) 7.5 kW (690 V) 7.5 kW
- Rated Operational Voltage: 750 V
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 0.5 kiloampere rms
- Data Sheet, Technical Information: 1SCC301020C0201
- Declaration of Conformity - CE: 1SCC301166D0201
- RoHS Information: 1SCC301183D0201
- ETIM 5: EC000216 - Switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OT16FT4N2 . Santa Clara Systems carries 36,935 items from ABB.
- Front Operated Switch-Disconnector. Types Ot 16...125 Include Protected Terminal Clamps
- Front Operated Switch-Disconnector. Types Ot 16...125 Include Protected Terminal Clamps
- Ip 20.
