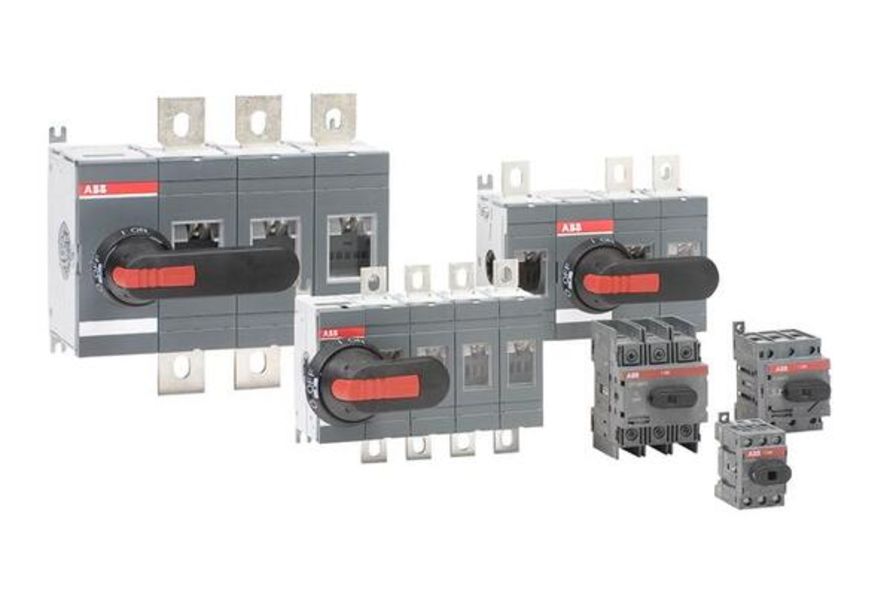

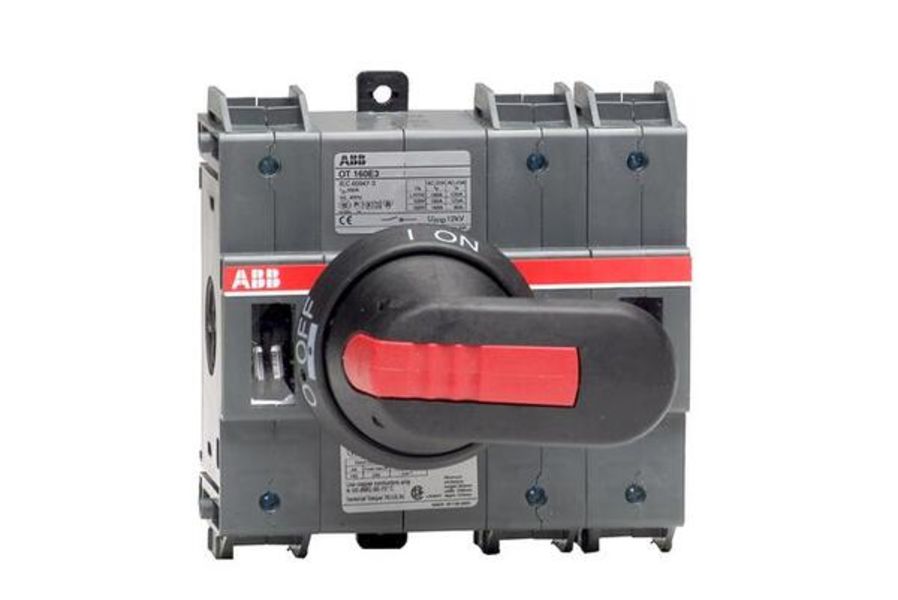

- Description: Switch-Disconnector | OT160ET3
- Product ID: 1SCA022350R1960
- Extended Product Type: 1SCA022350R1960
- Product Net Weight: 1.40 kg
- Product Net Width: 127 mm
- Product Net Height: 131 mm
- Product Net Depth: 90 mm
- Product Main Type: OT160
- Product Name: Switch-disconnector
- Standards: IEC
- Number of Poles: 3
- Power Loss: at Rated Operating Conditions per Pole 6.5 W
- GL Certificate: 1SCC301042D0201
- Switches Operating Mechanism: Mechanism Between the Poles
- Position of Line Terminals: Top In - Bottom Out
- EAN: 6417019100456
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 181 mm
- Package Level 1 Height: 133 mm
- Package Level 1 Length: 209 mm
- Package Level 1 Gross Weight: 1.40 kg
- Package Level 1 EAN: 6417019100456
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-05-01
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 C 200 A
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 160 A
- IIT Publishing Status: Level 0 - Information enabled
- Rated Operational Current AC-21A (I<sub>e</sub>): (500 V) 160 A (690 V) 160 A (380 ... 415 V) 160 A
- Rated Operational Current AC-22A (I<sub>e</sub>): (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (500 V) 125 A (690 V) 80 A (380 ... 415 V) 135 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (220 ... 240 V) 45 kW (400 V) 75 kW (415 V) 75 kW (500 V) 75 kW (690 V) 75 kW
- BV Certificate: 1SCC301048D0202
- Data Sheet, Technical Information: 1SCC301013M0003
- Declaration of Conformity - CE: 1SCC301012D0201
- DNV Certificate: 1SCC301051D0201
- KEMA Certificate: 1SCC301084D0201
- LR Certificate: 1SCC301039D0202
- RoHS Information: 1SCC301148D0201
- E-nummer: 3171148
- ETIM 5: EC000216 - Switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OT160ET3 . Santa Clara Systems carries 36,928 items from ABB.
- Length 130 Mm.
- For Mounting Into The Door Or Side Wall. Includes Handle Ohb65j6
- Ip 65
- And Shaft Oxp6x130
