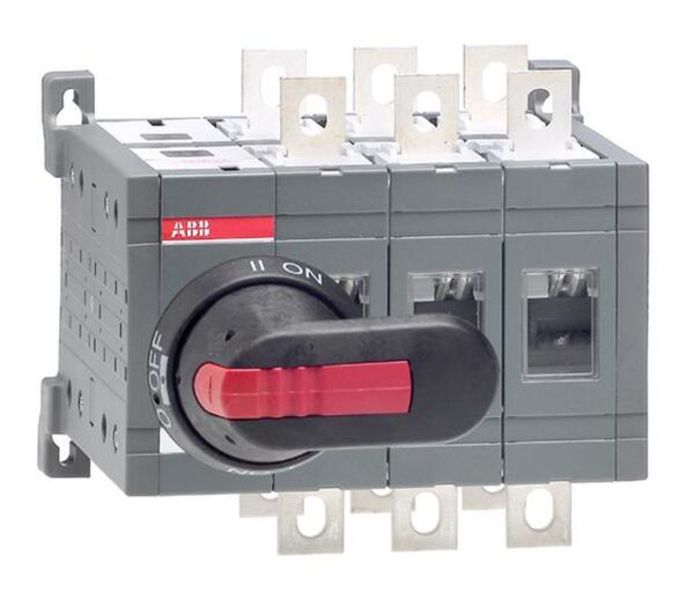

- Description: OT160E03CP CHANGE-OVER SWITCH
- Product ID: 1SCA022772R6510
- Extended Product Type: 1SCA022772R6510
- Product Net Weight: 3.3 kg
- Product Net Width: 170 mm
- Product Net Height: 150 mm
- Product Net Depth: 160 mm
- Product Main Type: OT160_C
- Product Name: CHANGE-OVER SWITCH
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 12 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1000 V
- Number of Poles: 3
- Power Loss: 2.4 W
- Tightening Torque: acc. IEC 60947-1 15 22 N·m
- Switches Operating Mechanism: Mechanism at the End of the Switch
- EAN: 6417019251974
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 160 mm
- Package Level 1 Height: 185 mm
- Package Level 1 Length: 245 mm
- Package Level 1 Gross Weight: 3.35 kg
- Package Level 1 EAN: 6417019251974
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 C 160 A
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 160 A
- IIT Publishing Status: Level 0 - Information enabled
- Pollution Degree: 3
- Rated Operational Current AC-21A (I<sub>e</sub>): (500 V) 160 A (690 V) 160 A
- Rated Operational Current AC-22A (I<sub>e</sub>): (500 V) 160 A (690 V) 160 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (220 ... 240 V) 45 kW (400 V) 90 kW (500 V) 110 kW (690 V) 160 kW
- Rated Operational Voltage: 1000 V
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 8 kiloampere rms
- Terminal Width: 20 mm
- Data Sheet, Technical Information: 1SCC303003C0201
- Declaration of Conformity - CE: 1SCC303001D0202
- E-nummer: 3171267
- ETIM 5: EC000216 - Switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OT160E03CP . Santa Clara Systems carries 36,937 items from ABB.
- Door Interlock In The I- And Iipositions And When Padlocked.
- Including A Black Plastic Ip65 I-0-Ii Pistol Type Handle (See The Table Below)
- Shaft And Bolt Set For The Cable Connection. Handle Padlockable In The 0-Position
