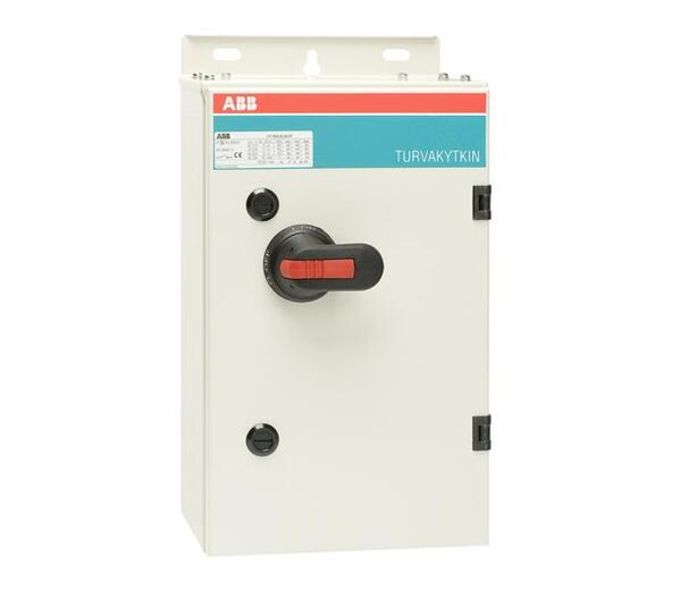

- Description: OT125EAUA3T Safety switch
- Product ID: 1SCA022277R3670
- Extended Product Type: 1SCA022277R3670
- Product Net Weight: 10 kg
- Product Net Width: 400 mm
- Product Net Height: 400 mm
- Product Net Depth: 230 mm
- Product Main Type: OT125
- Product Name: Safety switch
- Degree of Protection: acc. to IEC 60529 IP54
- Number of Poles: 3
- Number of Auxiliary Contacts NO: 1
- Enclosure Material: Steel sheet
- Order Multiple: 1 piece
- Position of Line Terminals: Bottom In - Bottom Out
- Cable Outlets Per Side: Bottom side is open
- Cable Entry Position: Bottom
- EAN: 6417019063492
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85371099
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 405 mm
- Package Level 1 Height: 315 mm
- Package Level 1 Length: 500 mm
- Package Level 1 Gross Weight: 10.3 kg
- Package Level 1 EAN: 6417019063492
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 160 A
- IIT Publishing Status: Level 0 - Information enabled
- Pollution Degree: 3
- Position of PE Terminals: Bottom In - Bottom Out
- Rated Operational Current AC-22A (I<sub>e</sub>): (500 V) 125 A (690 V) 125 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (380 ... 415 V) 125 A (500 V) 90 A (690 V) 70 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (220 ... 240 V) 37 kW (400 V) 55 kW (500 V) 55 kW (690 V) 55 kW
- Rated Operational Voltage: 750 V
- Data Sheet, Technical Information: 1SCC340006C0201
- Declaration of Conformity - CE: 1SCC340001D0202
- ETIM 5: EC000249 - Protection switch disconnector housing
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OT125EAUA3T . Santa Clara Systems carries 36,935 items from ABB.
- Safety Switch 3-P.400v Ac23a 55kw Ac22a 125a Steel Enclosure Ip54 Black Pistol Handle
