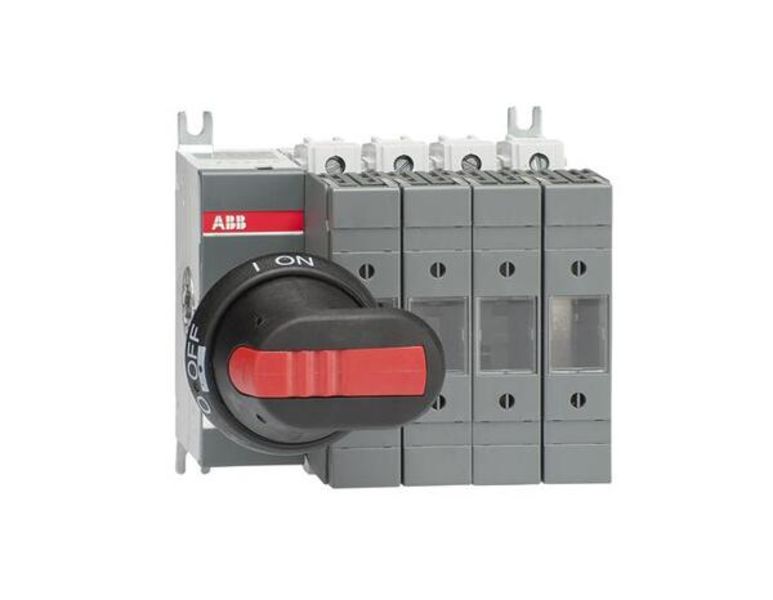

- Description: OS63GD04N2P Switch fuse
- Product ID: 1SCA115209R1001
- Extended Product Type: 1SCA115209R1001
- Product Net Weight: 1.5 kg
- Product Net Width: 136 mm
- Product Net Height: 125 mm
- Product Net Depth: 121 mm
- Product Main Type: OS63G
- Product Name: Switch fuse
- Standards: IEC
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 12 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1000 V
- Number of Poles: 4
- Terminal Type: Screw Terminals
- Power Loss: 4 W
- Mounting Type: Normal
- Handle Type: Pistol Handle
- Switches Operating Mechanism: Mechanism at the End of the Switch
- Position of Line Terminals: Top In - Bottom Out
- Fuse Size: 000
- Operating Mode: Front Operated
- Fuse Type: DIN
- EAN: 6417019476490
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 146 mm
- Package Level 1 Height: 137 mm
- Package Level 1 Length: 192 mm
- Package Level 1 Gross Weight: 1.5 kg
- Package Level 1 EAN: 6417019476490
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-07-01
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 °C 63 A
- Fuse System: DIN
- IIT Publishing Status: Level 0 - Information enabled
- Includes: Handle and Shaft
- Pollution Degree: 3
- Rated Operational Current AC-21A (I<sub>e</sub>): (380 ... 415 V) 63 A (500 V) 63 A (690 V) 63 A
- Rated Operational Current AC-22A (I<sub>e</sub>): (380 ... 415 V) 63 A (500 V) 63 A (690 V) 63 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (380 ... 415 V) 63 A (500 V) 63 A (690 V) 63 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (220 ... 240 V) 18,5 kW (400 V) 30 kW (415 V) 30 kW (500 V) 37 kW (690 V) 55 kW
- Rated Operational Voltage: 690 V AC
- Data Sheet, Technical Information: 1SCC311013C0201
- Declaration of Conformity - CE: 1SCC311136D0201
- RoHS Information: 1SCC311138D0201
- ETIM 5: EC001040 - Fuse switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OS63GD04N2P . Santa Clara Systems carries 36,973 items from ABB.
- Padlockable In The Off-Position And With Door Interlock In The On-Position. The Shaft Is Adjustable For A Range Of Installation Depths.
- Including Terminal Bolt Kit
- A Black On-Off Plastic Handle And Shaft As Standard. The Handle Is Ip65 Protected
