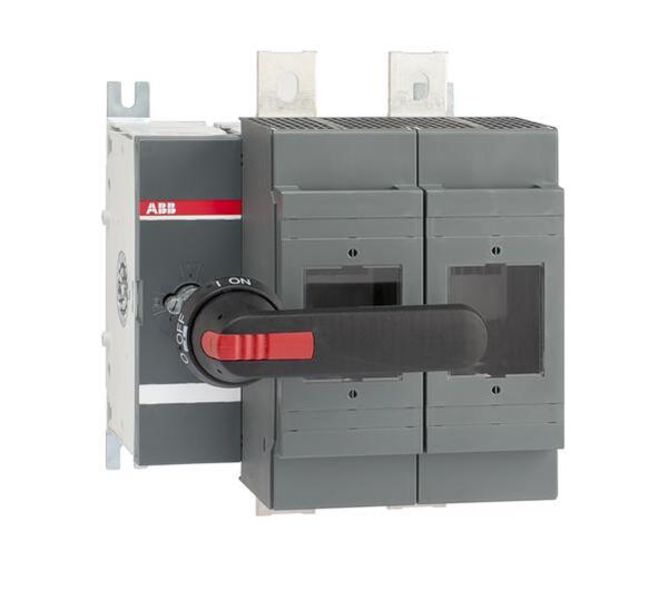

- Description: OS630D02P Switch fuse
- Product ID: 1SCA107745R1001
- Extended Product Type: 1SCA107745R1001
- Product Net Weight: 10 kg
- Product Net Width: 255 mm
- Product Net Height: 306 mm
- Product Net Depth: 233 mm
- Product Main Type: OS630
- Product Name: Switch fuse
- Standards: IEC
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 12 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1000 V
- Number of Poles: 2
- Terminal Type: Lug terminals
- Power Loss: 46 W
- Mounting Type: Normal
- Handle Type: Pistol Handle
- Switches Operating Mechanism: Mechanism at the End of the Switch
- Position of Line Terminals: Top In - Bottom Out
- Fuse Size: 3
- Operating Mode: Front Operated
- Fuse Type: DIN
- EAN: 6417019400235
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 328 mm
- Package Level 1 Height: 260 mm
- Package Level 1 Length: 365 mm
- Package Level 1 Gross Weight: 10 kg
- Package Level 1 EAN: 6417019400235
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 °C 630 A
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 800 A
- Fuse System: DIN
- IIT Publishing Status: Level 0 - Information enabled
- Includes: Handle and Shaft
- Pollution Degree: 3
- Rated Operational Current AC-21A (I<sub>e</sub>): (500 V) 630 A (690 V) 630 A
- Rated Operational Current AC-22A (I<sub>e</sub>): (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (220 ... 240 V) 200 kW (400 V) 355 kW (415 V) 355 kW (500 V) 450 kW (690 V) 630 kW
- Rated Operational Voltage: 690 V AC
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 18 kiloampere rms
- Data Sheet, Technical Information: 1SCC311013C0201
- Declaration of Conformity - CE: 1SCC311112D0203
- ETIM 5: EC001040 - Fuse switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OS630D02P . Santa Clara Systems carries 36,972 items from ABB.
- Padlockable In The Off-Position And With Door Interlock In The On-Position. The Shaft Is Adjustable For A Range Of Installation Depths.
- Including Terminal Bolt Kit
- A Black On-Off Plastic Handle And Shaft As Standard. The Handle Is Ip65 Protected
