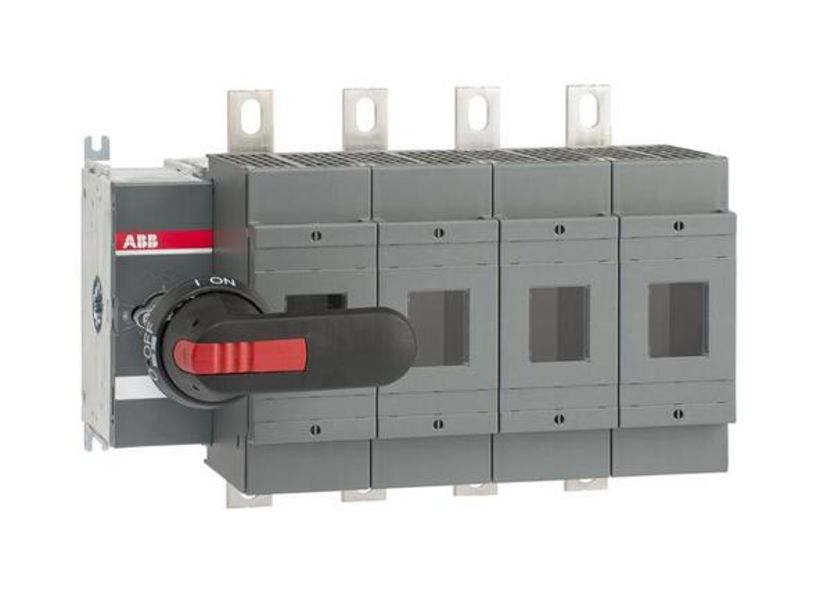

- Description: OS400D04FP Switch fuse
- Product ID: 1SCA022753R7110
- Extended Product Type: 1SCA022753R7110
- Product Net Weight: 9.1 kg
- Product Net Width: 319 mm
- Product Net Height: 230 mm
- Product Net Depth: 193 mm
- Product Main Type: OS400
- Product Name: Switch fuse
- Standards: IEC
- Number of Poles: 4
- Terminal Type: Lug terminals
- Power Loss: at Rated Operating Conditions per Pole 30 W
- GL Certificate: 1SCC311097D0201
- Mounting Type: Normal
- Handle Type: Pistol Handle
- Switches Operating Mechanism: Mechanism at the End of the Switch
- Position of Line Terminals: Top In - Bottom Out
- Fuse Size: 0, 1, 2
- Operating Mode: Front Operated
- Fuse Type: DIN
- EAN: 6417019245300
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 240 mm
- Package Level 1 Height: 206 mm
- Package Level 1 Length: 335 mm
- Package Level 1 Gross Weight: 9.1 kg
- Package Level 1 EAN: 6417019245300
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-05-01
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 °C 400 A
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 400 A
- Fuse System: DIN
- IIT Publishing Status: Level 0 - Information enabled
- Includes: Handle and Shaft
- Rated Operational Current AC-21A (I<sub>e</sub>): (690 V) 400 A (380 ... 415 V) 400 A (500 V) 400 A
- Rated Operational Current AC-22A (I<sub>e</sub>): (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (500 V) 400 A (690 V) 400 A (380 ... 415 V) 400 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (220 ... 240 V) 132 kW (400 V) 220 kW (415 V) 230 kW (500 V) 280 kW (690 V) 400 kW
- Rated Operational Voltage: 690 V AC
- BV Certificate: 1SCC311103D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Declaration of Conformity - CE: 1SCC311100D0201
- LR Certificate: 1SCC311102D0201
- RoHS Information: 1SCC311108D0202
- ETIM 5: EC001040 - Fuse switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OS400D04FP . Santa Clara Systems carries 36,973 items from ABB.
- Padlockable In The Off-Position And With Door Interlock In The On-Position. The Shaft Is Adjustable For A Range Of Installation Depths.
- Including Terminal Bolt Kit
- A Black On-Off Plastic Handle And Shaft As Standard. The Handle Is Ip65 Protected
