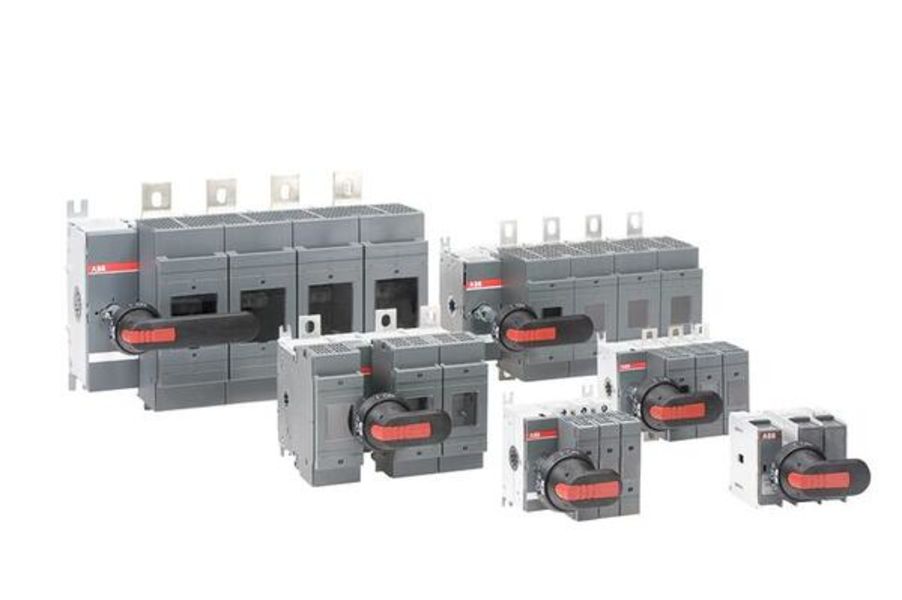

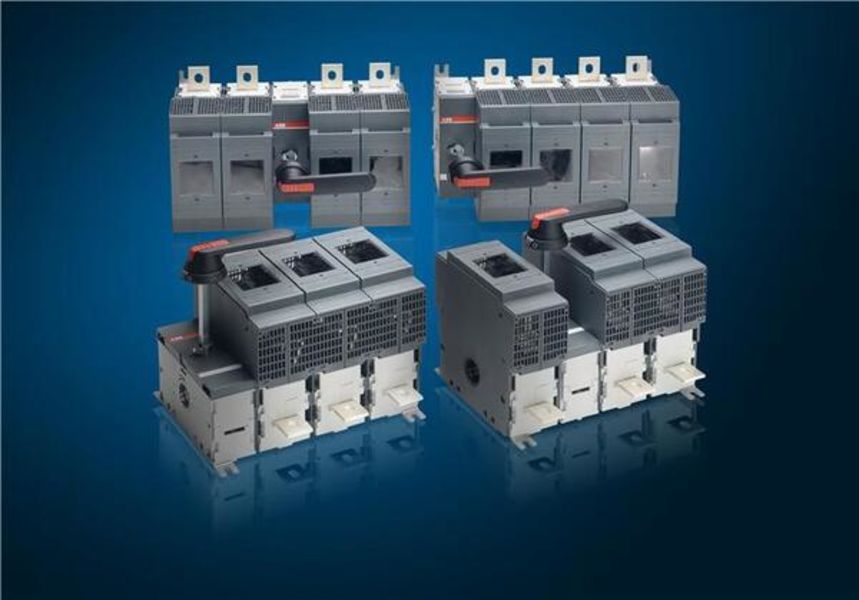

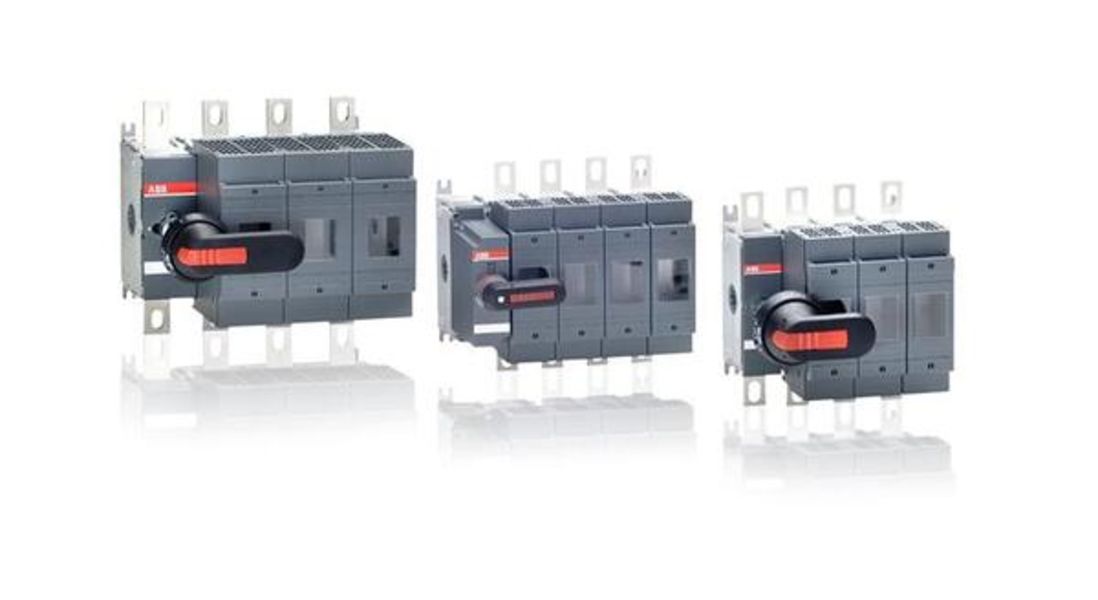

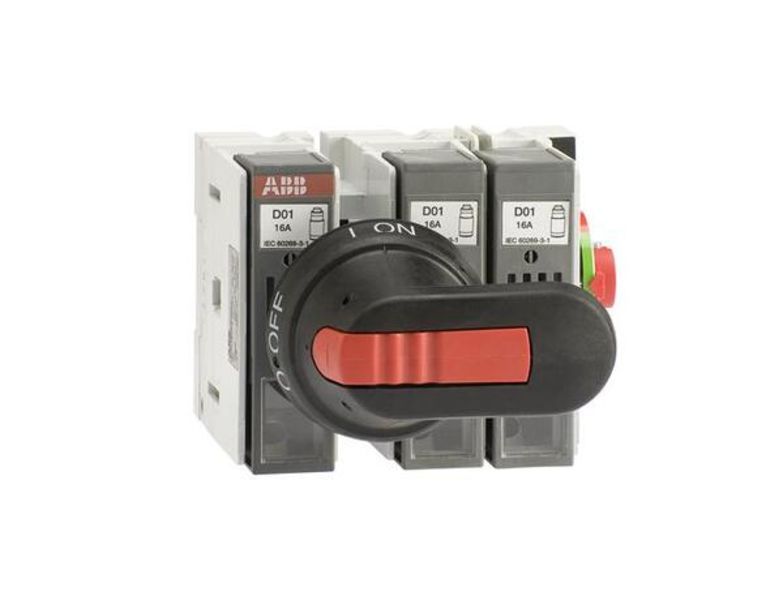

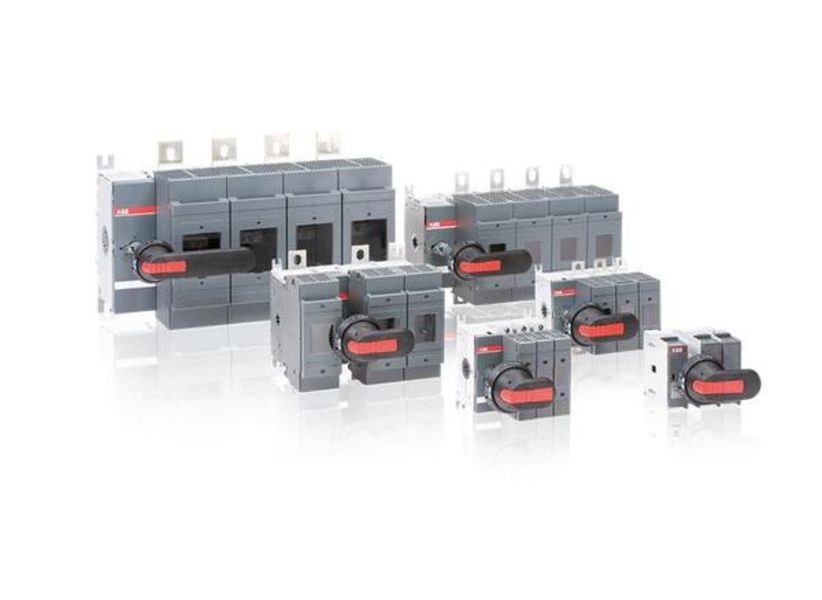

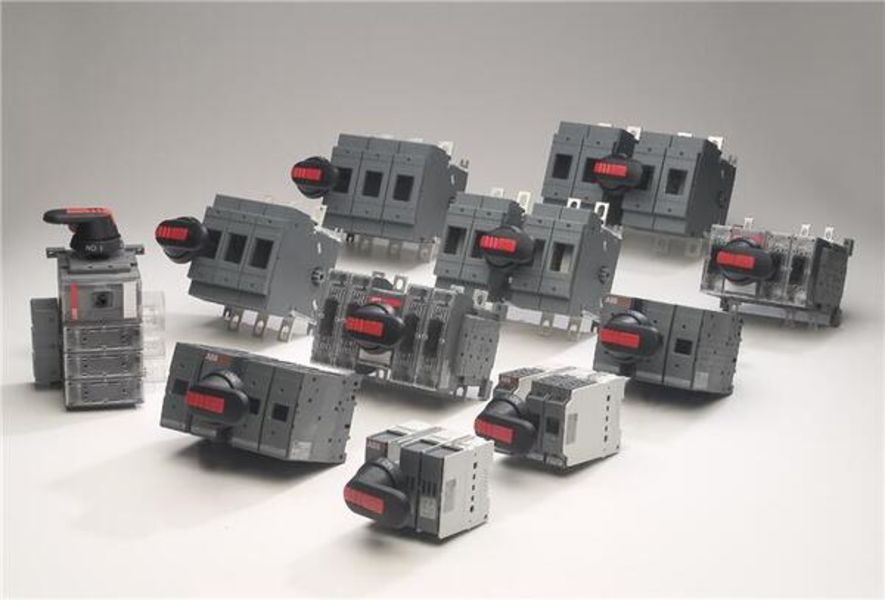

- Description: OS30FAJ22FP Fusible disconnect switch
- Product ID: 1SCA108831R1001
- Extended Product Type: 1SCA108831R1001
- Product Net Weight: 0.8 kg
- Product Net Width: 142 mm
- Product Net Height: 97 mm
- Product Net Depth: 105 mm
- Product Main Type: OS Mini 30
- Product Name: Fusible disconnect switch
- Standards: UL
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 12 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1000 V
- Number of Poles: 4
- Terminal Type: Screw Terminals
- Power Loss: 2 W
- Mounting Type: Normal
- Handle Type: Pistol Handle
- Order Multiple: 1 piece
- Ampere Rating UL/CSA: 30 A
- Horsepower Rating UL/CSA: (acc. to UL 240 V) 7.5 Hp (acc. to UL 480 V) 15 Hp (acc. to UL 600 V) 20 Hp
- Switches Operating Mechanism: Mechanism Between the Poles
- Position of Line Terminals: Top In - Bottom Out
- Fuse Size: J, 30A
- Operating Mode: Front Operated
- Fuse Type: J
- EAN: 6417019421056
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 240 mm
- Package Level 1 Height: 130 mm
- Package Level 1 Length: 108 mm
- Package Level 1 Gross Weight: 0.82 kg
- Package Level 1 EAN: 6417019421056
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 C 32 A
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 32 A
- Fuse System: Class J
- IIT Publishing Status: Level 0 - Information enabled
- Includes: Handle and Shaft
- Pollution Degree: 3
- Rated Operational Current AC-23A (I<sub>e</sub>): (500 V) 32 A (690 V) 32 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (220 ... 240 V) 7.5 kW (400 V) 15 kW (415 V) 15 kW (500 V) 18.5 kW (690 V) 22 kW
- Rated Operational Voltage: 690 V AC
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 1 kiloampere rms
- Data Sheet, Technical Information: 1SCC311013C0201
- Declaration of Conformity - CE: 1SCC311010D0201
- RoHS Information: 1SCC311106D0201
- ETIM 5: EC001040 - Fuse switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OS30FAJ22FP . Santa Clara Systems carries 36,928 items from ABB.
- Padlockable In The Off-Position And With Door Interlock In The On-Position. Shaft Mounting Depths Measured From The Left Side Of The Switch
- 3-Pole: H=154...166mm And 4-Pole: H=189...201mm. Fuse Standards Ul 248.
- Including A Black On-Off Plastic Handle And Shaft As Standard. The Shaft Is Adjustable For A Range Of Mounting Depths. The Handle Is Ip65 Protected
- Nema Type 1
- 3r
- 12
