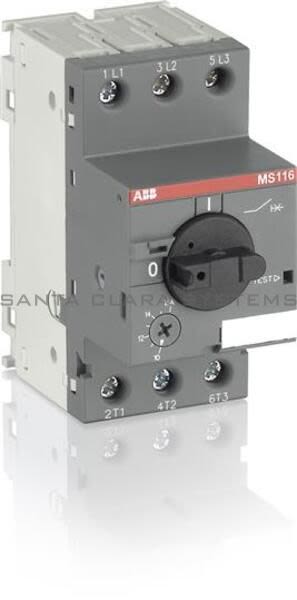

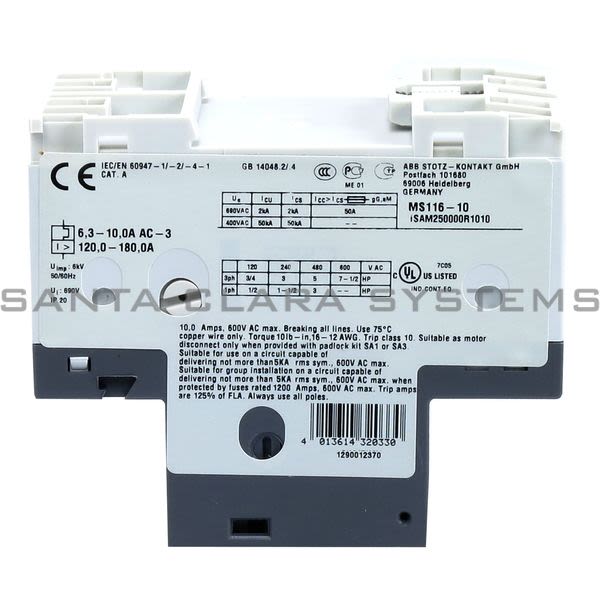

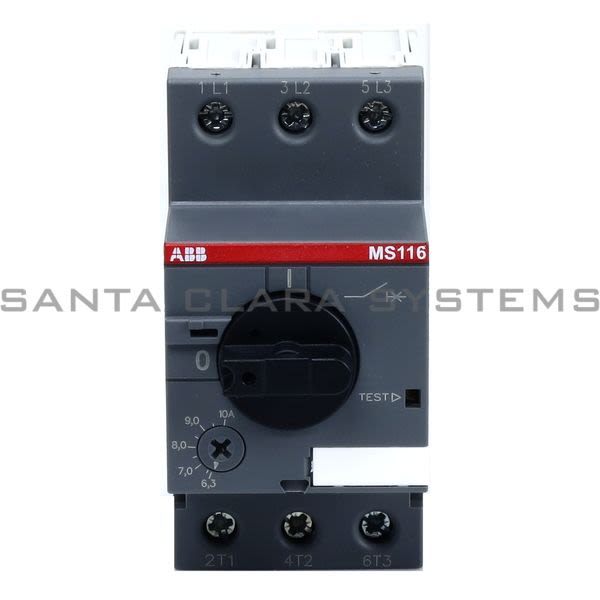

ABB MS116-10-1SAM250000R1010 Manual Motor Starter | 1SAM250000R1010 Product Image

MS116-10-1SAM250000R1010

ABB - Manual Motor Starter | 1SAM250000R1010

Current response time:

By 5AM PT on Tuesday

Emergency?

Description: Manual Motor Starter | 1SAM250000R1010
Product ID: 1SAM250000R1010
Extended Product Type: 1SAM250000R1010
Product Net Weight: 0.265 kg
Product Net Width: 45 mm
Product Net Height: 90 mm
Product Net Depth: 85.6 mm
Degree of Protection: Housing IP20 Main Circuit Terminals IP10
Ambient Air Temperature: Around the Enclosure 0 ... +40 °C Operation -25 ... +70 °C Operation Compensated -25 ... +55 °C Storage -50 ... +80 °C
Standards: IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 UL 60947-1 UL 60947-4-1
Rated Impulse Withstand Voltage (Uimp): Main Circuit 6 kV
Rated Insulation Voltage (Ui): 690 V
Number of Poles: 3
Rated Frequency (f): Main Circuit 50 Hz Main Circuit 60 Hz
Power Loss: at Rated Operating Conditions per Pole 0.9 ... 2.4 W
Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
eClass: 7.0 27370401
Tightening Torque: Main Circuit 0.8 ... 1.2 N·m
Actuator Type: Rotary Handle
Mounting Position: Position 1 to 6
Mechanical Durability: 100000 cycle
Connecting Capacity Main Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm² Flexible 1/2x 0.75 ... 2.5 mm² Rigid 1/2x 1 ... 4 mm²
GOST Certificate: 1SAA963001-2702
Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC
Contact Position Indication: ON / OFF
Maximum Operating Altitude Permissible: 2000 m
Tightening Torque UL/CSA: Main Circuit 10 in·lb
Operational Voltage: 690 V AC
Country of Origin: Switzerland (CH)
Wire Stripping Length: Main Circuit 9 mm
GL Certificate: 1SAA963000-0402
Connecting Capacity Main Circuit UL/CSA: Flexible 1/2x 16-12 AWG Stranded 1/2x 16-12 AWG
Ampere Rating UL/CSA: 10 A
Horsepower Rating UL/CSA: (220 ... 240 V AC) Three Phase 3 Hp (440 ... 480 V AC) Three Phase 5 Hp (550 ... 600 V AC) Three Phase 7.5 Hp
General Use Rating UL/CSA: (600 V AC) 10 A
Lead Time: 999 day(s)
Electrical Durability: 100000 cycle
Poles: 3
Operational Current: 10 A
Setting Range: 6.3 - 10 A
Operational Power: 4 kW (400 V)
EAN: 4013614320330
Criticality: No
Replacement Part ID: <a href='javascript:constructLinkToDetailPage("ABB.PARTS.FISER64693000", "", "ROOT","");'>64693000</a>
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362010
Package Level 1 Width: 92 mm
Package Level 1 Length: 95 mm

Package Level 1 Height: 50 mm
Package Level 1 Gross Weight: 0.28 kg
Package Level 2 Units: 40 piece
Package Level 2 Width: 280 mm
Package Level 2 Length: 395 mm
Package Level 2 Height: 210 mm
Package Level 2 Gross Weight: 11.586 kg
Package Level 2 EAN: 4013614408700
Package Level 1 Units: 1 piece
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (230 V AC) 50 kA (400 V AC) 50 kA (440 V AC) 6 kA (500 V AC) 6 kA (690 V AC) 2 kA
Rated Instantaneous Short-Circuit Current Setting (Ii): 150 A
Setting Range: 6.3 ... 10 A
Rated Operational Power AC-3 (Pe): (400 V) Three Phase 4 kW
Rated Operational Voltage: Main Circuit 690 V AC
Rated Operational Current (Ie): 10 A
Rated Operational Current AC-3 (Ie): 10 A
Conventional Free-air Thermal Current (Ith): Main Circuit 10 A
Pollution Degree: 3
Recommended Screw Driver: Pozidriv 2
Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 50 kA (400 V AC) 50 kA (440 V AC) 6 kA (500 V AC) 6 kA (690 V AC) 2 kA
Ambient Air Temperature Compensation: Yes
Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 25g
Resistance to Vibrations acc. to IEC 60068-2-6: 5g / 3 ... 150 Hz
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Data Sheet, Technical Information (Part 2): 1SAM200505F0010
Data Sheet, Technical Information (Part 3): 1SAM200507F0001 1SAM200507F0002 1SAM200507F0003 1SAM200508F0001 1SAM200508F0002 1SAM200508F0003
Instructions and Manuals: 2CDC131011M6802
ABS Certificate: 1SAA963000-0104
BV Certificate: 1SAA963000-0202
CB Certificate: 1SAA963000-2003
CCC Certificate: 1SAA963000-3803
cUL Certificate: cUL_E137861
Data Sheet, Technical Information: 2CDC131025D0201
Declaration of Conformity - CE: 1SAD938516-0060
DNV Certificate: 1SAA963000-0303
EAC Certificate: 1SAA963000-2701
LR Certificate: 1SAA963000-0505
RMRS Certificate: 1SAA918000-0703
RoHS Information: 1SAA963001-4407
UL Certificate: UL_E137861
E-nummer: 3111948
ETIM 4: EC000074 - Motor protective circuit-breaker
ETIM 5: EC000074 - Motor protective circuit-breaker
ETIM 6: EC000074 - Motor protection circuit-breaker
UNSPSC: 39121521
Object Classification Code: F
Package Level 1 EAN: 4013614409400

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MS116-10-1SAM250000R1010 . Santa Clara Systems carries 36,972 items from ABB.

The Ms116-10 Manual Motor Starter Is A Compact 45 Mm Width Devices With A Rated Operational Current Of Ie = 10.0 A. This Device Is Used To Manually Switch On And Off Motors And To Protect Them Reliably And Without The Need For A Fuse From Short-Circuits

The Ms116-10 Manual Motor Starter Is A Compact 45 Mm Width Devices With A Rated Operational Current Of Ie = 10.0 A. This Device Is Used To Manually Switch On And Off Motors And To Protect Them Reliably And Without The Need For A Fuse From Short-Circuits
Overload And Phase Failures. The Manual Motor Starter Offers A Rated Service Short-Circuit Breaking Capacity Ics = 50 Ka At 400 Vac And The Trip Class 10a.
