HKF1-11

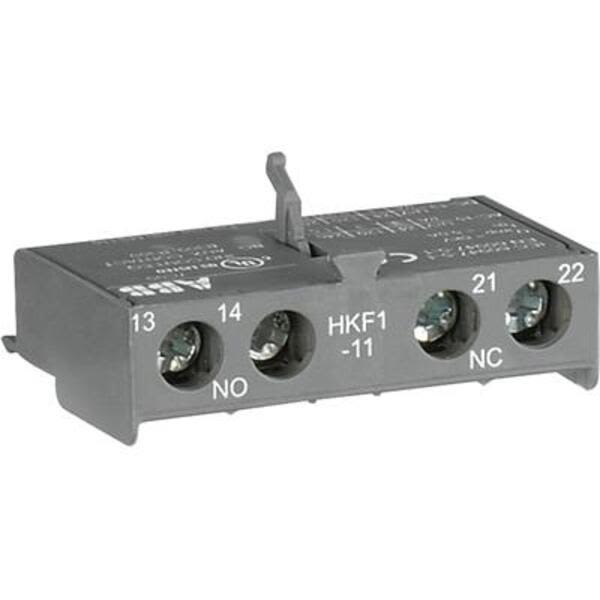

ABB - Auxiliary Contact | 1SAM201901R1001

Current response time:

By 5AM PT on Friday

Emergency?

Description: Auxiliary Contact | 1SAM201901R1001
Product ID: 1SAM201901R1001
Extended Product Type: 1SAM201901R1001
Product Net Weight: 0.015 kg
Product Net Width: 45 mm
Product Net Height: 12.5 mm
Product Net Depth: 26.5 mm
Product Name: Auxiliary Contact
Ambient Air Temperature: Operation -20 ... +55 C Storage -50 ... +80 C
Standards: IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1
Rated Impulse Withstand Voltage (Uimp): Auxiliary Circuit 6 kV
Rated Insulation Voltage (Ui): 250 V
Suitable For: MS116 MS132 MO132
eClass: 7.0 27379201
Tightening Torque: Auxiliary Circuit 0.8 ... 1.2 N·m
Number of Auxiliary Contacts NO: 1
Number of Auxiliary Contacts NC: 1
GOST Certificate: 1SAA937000-2703
Maximum Operating Voltage UL/CSA: Main Circuit 250 V AC
Tightening Torque UL/CSA: Auxiliary Circuit 7 in·lb
Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 0.75 ... 1.5 mm Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm Flexible 1/2x 0.75 ... 1.5 mm Rigid 1/2x 1 ... 1.5 mm
Country of Origin: Germany (DE)
Wire Stripping Length: Auxiliary Circuit 8 mm
GL Certificate: 1SAA963001-0401 1SAA963000-0402
Lead Time: 999 day(s)
EAN: 4013614320354
Criticality: No
Replacement Part ID: <a href='javascript:constructLinkToDetailPage("TEMP.FIDRI64693026", "", "ROOT","");'>64693026</a>
Made To Order: No
Product Sales Status: Active
Quote Only: No
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85365080
Package Level 1 Length: 36 mm

Package Level 1 Height: 50 mm
Package Level 1 Gross Weight: 0.195 kg
Package Level 1 EAN: 4013614481413
Package Level 1 Units: 10 piece
Package Level 1 Width: 148 mm
Rated Operational Current AC-15 (Ie): (240 V) 4 A (24 V) 6 A (380 / 400 V) 3 A (690 V) 1 A
Rated Operational Current DC-13 (Ie): (125 V) 0.55 A (24 V) 2 A (250 V) 0.27 A (440 V) 0 A (600 V) 0 A
Recommended Screw Driver: M3 Pozidriv 2
Suitable for Product Class: Manual Motor Starter
Rated Operational Voltage: 250 V
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Connecting Capacity Auxiliary Circuit UL/CSA: Flexible 1/2x 16-14 AWG Stranded 1/2x 16-14 AWG
Contact Rating UL/CSA: B300 R300
Instructions and Manuals: 2CDC131011M6802 2CDC131034M6801 2CDC131022M6802
ABS Certificate: 1SAA963001-0101
BV Certificate: 1SAA963000-0202
CB Certificate: 1SAA963003-2001
CCC Certificate: 1SAA963002-3804
cUL Certificate: cUL_E137861
Data Sheet, Technical Information: 1SBC100192C02--
Declaration of Conformity - CE: 1SAD938501-0191 1SAD938516-0060 1SAD938502-0188 1SAD938504-0183 1SAD938502-0190 1SAD938510-0125
DNV Certificate: 1SAA963001-0303
EAC Certificate: 1SAA963000-2701
LR Certificate: 1SAA963001-0501 1SAA963001-0502 1SAA963000-0505
RINA Certificate: 1SAA963000-0802
RoHS Information: 1SAA963001-4407
UL Certificate: UL_E137861
E-nummer: 3112001
ETIM 4: EC002498 - Accessories for low-voltage switch technology
ETIM 5: EC002498 - Accessories for low-voltage switch technology
ETIM 6: EC002498 - Accessories for low-voltage switch technology
UNSPSC: 39121500
Object Classification Code: Q
