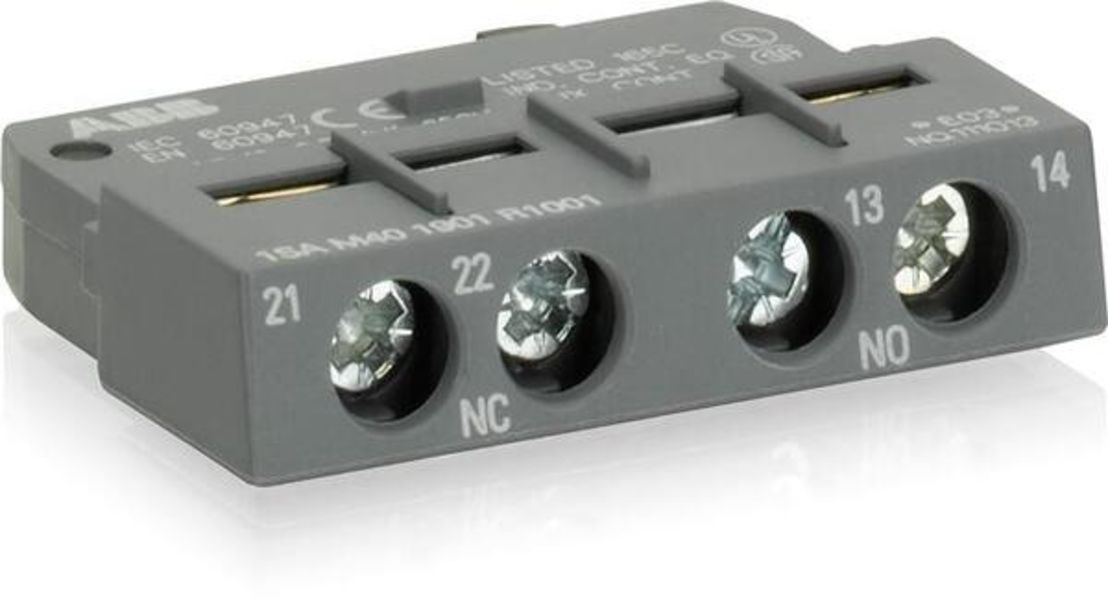

- Description: Auxiliary Contact | 1SAM401901R1001
- Product ID: 1SAM401901R1001
- Extended Product Type: 1SAM401901R1001
- Product Net Weight: 0.017 kg
- Product Net Width: 16 mm
- Product Net Height: 55 mm
- Product Net Depth: 35 mm
- Product Name: Auxiliary Contact
- Degree of Protection: IP20
- Ambient Air Temperature: Operation -25 . +70 C Storage -50 +80 C
- Standards: IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 508 CSA 22.2 No. 14
- Rated Insulation Voltage (U<sub>i</sub>): 300 V
- Suitable For: MS450 MS451 MO450 MS495 MS496 MS497 MO495 MO496
- eClass: 7.0 27379201
- Tightening Torque: Auxiliary Circuit 0.8 1.2 N·m
- Number of Auxiliary Contacts NO: 1
- Number of Auxiliary Contacts NC: 1
- GOST Certificate: 1SAA937000-2703
- Maximum Operating Voltage UL/CSA: Auxiliary Circuit 250 V
- Tightening Torque UL/CSA: Auxiliary Circuit 7 10.3 in·lb
- Connecting Capacity Auxiliary Circuit: Rigid 1/2x 0.5 ... 1.5 mm Rigid 1/2x 0.75 2.5 mm Flexible with Ferrule 1/2x 0.5 ... 1.5 mm Flexible with Ferrule 1/2x 0.75 2.5 mm Flexible 1/2x 0.5 ... 1.5 mm Flexible 1/2x 0.75 2.5 mm
- Country of Origin: Germany (DE)
- Wire Stripping Length: Auxiliary Circuit 10 mm
- GL Certificate: 1SAA937000-0404
- Lead Time: 22 day(s)
- EAN: 4013614265846
- Criticality: No
- Made To Order: No
- Product Sales Status: Active
- Quote Only: No
- Storage Location: 4001
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85369085
- Package Level 1 Length: 50 mm
- Package Level 1 Height: 106 mm
- Package Level 1 Gross Weight: 0.017 kg
- Package Level 1 Units: 10 piece
- Package Level 1 Width: 46 mm
- Rated Operational Current AC-15 (I<sub>e</sub>): (24 V) 2 A (230 V) 0.5 A
- Rated Operational Current DC-13 (I<sub>e</sub>): (24 V) 1 A (48 V) 0.3 A
- Recommended Screw Driver: Pozidriv 2
- Number of Auxiliary Contacts CO (SPDT): 0
- Conventional Free-air Thermal Current (I<sub>th</sub>): 2.5 A
- Suitable for Product Class: Manual Motor Starter
- Rated Operational Voltage: 230 V AC 220 V DC
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2008 Q1
- Connecting Capacity Auxiliary Circuit UL/CSA: Stranded 1/2x 18 ... 14 AWG Flexible 1/2x 18 ... 14 AWG
- Contact Rating UL/CSA: C300 R300
- BV Certificate: 1SAA937000-0201
- CCC Certificate: 1SAA937002-3803
- Data Sheet, Technical Information: 1SBC100173C0201
- Declaration of Conformity - CE: 1SAD938504-0050 1SAD938504-0051 1SAD938505-0050
- DNV Certificate: 1SAA937000-0301
- RoHS Information: 1SAA918002-4401
- UL Certificate: UL_E149922
- E-nummer: 3112302
- ETIM 4: EC002498 - Accessories for low-voltage switch technology
- ETIM 5: EC002498 - Accessories for low-voltage switch technology
- ETIM 6: EC002498 - Accessories for low-voltage switch technology
- UNSPSC: 39121500
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HK4-11 . Santa Clara Systems carries 36,937 items from ABB.
- Hk4-11 Auxiliary Contact 1no/1nc
