Out of Stock

CP651-WEB

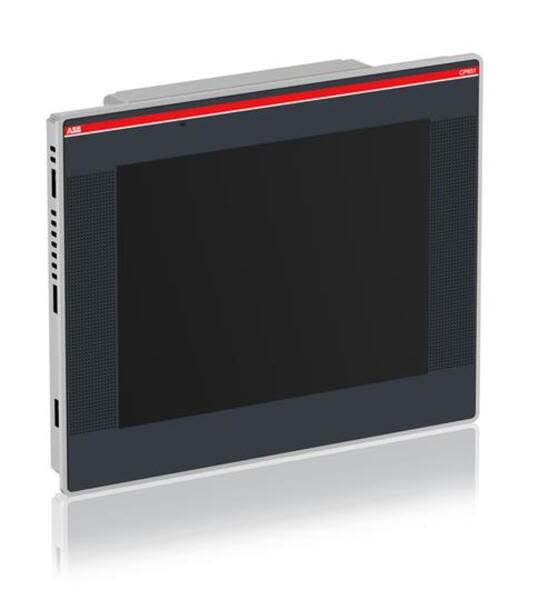

ABB - CP651-WEB:CP600, control panel, TFT graphic display, touchscreen, 10.4", 800 x 600 pixel, microbrowser

Current response time:

6 Minutes 32 Seconds

Description: CP651-WEB:CP600, control panel, TFT graphic display, touchscreen, 10.4", 800 x 600 pixel, microbrowser
Product ID: 1SAP551200R0001
Extended Product Type: 1SAP551200R0001
Product Net Weight: 2.1 kg
Product Net Width: 287 mm
Product Net Height: 60 mm
Product Main Type: CP651
Product Name: Control Panels
Degree of Protection: acc. to IEC 60529 Front IP66 acc. to IEC 60529 Housing IP20
Ambient Air Temperature: Operation 0 ... +50 C Storage -20 ... +70 C
Product Net Length: 232 mm
Housing Material: Front side: Aluminium Reverse side: Aluminium
Country of Origin: Italy (IT)
Country of Origin: Italy (IT) Germany (DE)
GL Certificate: 1SAA960004-0304
Mounting Type: Front face
Order Multiple: 1 piece
Lead Time: 1 day(s)
Power Supply: 24 (18 ... 30) V DC
ABB Type Designation: CP651-WEB
EAN: 4013614493126
Criticality: No
Made To Order: No
Product Sales Status: Active
Quote Only: No
CSA Certificate: 1SAA960000-1710
Communication Interface: 2x Ethernet 10/100MBit 1x RS232/422/485 1x USB 2.0 Host 1x SD-card slot 1x Expansion slot
Customs Tariff Number: 85381000

DNV Certificate: 1SAA960004-0304
Declaration of Conformity - CE: 1SAD938502-0169
EPLAN Catalog Tree: Electrical engineering / PLC / General
Gross Weight: 3 kg
Instructions and Manuals: 3ADR059041M6801
Instructions and Manuals (Part 2): 3ADR059030M0203
Invoice Description: CP651-WEB:CP600, control panel, TFT grafic display, touchscreen, 10.4", 800 x 600 pixel, microbrowser
Language: English
Memory Size User Data: 256 MB
Memory Size User Program: 256 MB
Memory Type User Data: Flash Disk
Memory Type User Program: DDR RAM
Minimum Order Quantity: 1 piece
Power Consumption: 24 W
Real-time Clock: Hardware clock, battery back-up
Replaced Product ID (OLD): <a href='javascript:constructLinkToDetailPage("ABB1SAP550200R0001", "", "ROOT","");'>1SAP550200R0001</a>
Screen Color: 64k colors
Screen Resolution: 800 x 600 pixel
Screen Size: 4:3 screen 10.4 in
Screen Type: TFT color, LED backlight, touch screen
Security: Password protection with 8 user levels
Selling Unit of Measure: piece
Serial Port 1 Type: RS232/RS422/RS485
Service Life: 40000 hour(s)
Short Description: CP651-WEB Control Panel 10.4" TFT touch screen
USB Port 1 Type: Host, version 2.0
USB Port 2 Type: Host, version 2.0
