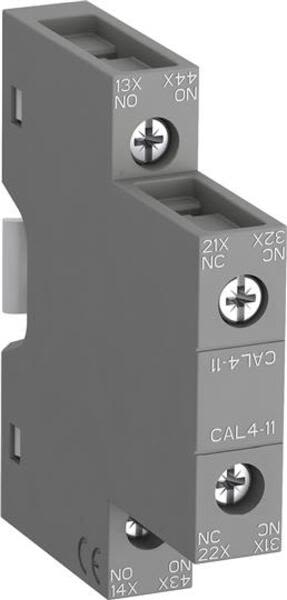

- Description: CAL4-11-T Auxiliary Contact Block
- Product ID: 1SBN010120T1011
- Extended Product Type: 1SBN010120T1011
- Product Net Weight: 0.040 kg
- Product Main Type: Accessories for Block Contactors
- Product Name: Auxiliary Contact Block
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 6 kV
- Rated Insulation Voltage (U<sub>i</sub>): acc. to UL/CSA 600 V acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
- Terminal Type: Screw Terminals
- Rated Frequency (f): Auxiliary Circuit 50 / 60 Hz
- Suitable For: AF09 AF12 AF16 AF26 AF30 AF38 AF40 AF52 AF65 AF80 AF96 NF
- Tightening Torque: Auxiliary Circuit 1.2 N·m
- Number of Auxiliary Contacts NO: 1
- Number of Auxiliary Contacts NC: 1
- GOST Certificate: GOST_POCCFR.ME77.B07175.pdf
- Tightening Torque UL/CSA: Auxiliary Circuit 11 in·lb
- Maximum Mechanical Switching Frequency: 3600 cycles per hour
- Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm Rigid 1/2x 1...2.5 mm
- Wire Stripping Length: Auxiliary Circuit 10 mm
- EAN: 3471523130418
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Package Level 1 Units: 10 piece
- Package Level 1 Width: 76 mm
- Package Level 1 Height: 68 mm
- Package Level 1 Length: 160 mm
- Package Level 1 Gross Weight: 0.4 kg
- Package Level 1 EAN: 3471523130418
- Package Level 2 Units: 420 piece
- Package Level 3 Units: 7560 piece
- Product Packing Type: Box
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2008 Q1
- Conventional Free-air Thermal Current (I<sub>th</sub>): acc. to IEC 60947-5-1, q = 40 C 16 A
- IIT Publishing Status: Level 0 - Information enabled
- Maximum Electrical Switching Frequency: AC-15 1200 cycles per hour DC-13 900 cycles per hour
- Mounted Auxiliary Contacts: 1 NO, 1 NC
- Rated Operational Current AC-15 (I<sub>e</sub>): (220 / 240 V) 4 A (24 / 127 V) 6 A (400 / 440 V) 3 A (500 V) 2 A (690 V) 2 A
- Rated Operational Current DC-13 (I<sub>e</sub>): (110 V) 0.55 A / 60 W (125 V) 0.55 A / 69 W (220 V) 0.27 A / 60 W (24 V) 6 A / 144 W (250 V) 0.27 A / 68 W (400 V) 0.15 A / 60 W (48 V) 2.8 A / 134 W (500 V) 0.13 A / 65 W (600 V) 0.1 A / 60 W (72 V) 1 A / 72 W
- Rated Operational Voltage: Auxiliary Circuit 24 ... 690 V
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 0.1 s 140 A for 1 s 100 A
- RoHS Date: 20090609
- ABS Certificate: ABS_15-GE1349500-PDA_90682247
- CB Certificate: CB_SE_70921
- CCC Certificate: CCC_2011010304496319
- cUL Certificate: UL_20091128-E252354-3-1
- Data Sheet, Technical Information: 1SBC100173C0201
- Declaration of Conformity - CE: 1SBD250007U1000
- EAC Certificate: EAC_RU C-FR ME77 B01048
- LR Certificate: LRS_1300087E1
- RINA Certificate: RINA_ELE084013XG
- RMRS Certificate: RMRS_1300133124
- RoHS Information: 1SBD251010E1000
- E-nummer: 3211436
- ETIM 4: EC002498 - Accessories for low-voltage switch technology
- ETIM 5: EC002498 - Accessories for low-voltage switch technology
- ETIM 6: EC002498 - Accessories for low-voltage switch technology
- Object Classification Code: K
- UNSPSC: 39121500
