- Description: Auxiliary Contact Block | 1SBN010040R1022
- Product ID: 1SBN010040R1022
- Extended Product Type: 1SBN010040R1022
- Product Net Weight: 0.060 kg
- Product Net Width: 44 mm
- Product Net Height: 47 mm
- Product Net Depth: 39 mm
- Product Main Type: Accessories for Block Contactors
- Product Name: Auxiliary Contact Block
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
- Rated Insulation Voltage (U<sub>i</sub>): acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V acc. to UL/CSA 600 V
- Terminal Type: Screw Terminals
- Rated Frequency (f): Supply Circuit 50 Hz Supply Circuit 60 Hz
- Power Loss: at Rated Operating Conditions per Pole 0.1 W
- Mounting Position: Front face
- Number of Auxiliary Contacts NO: 2
- Number of Auxiliary Contacts NC: 2
- Mechanical Durability: A9 ... A75 10 million A95 ... A110 3 million
- GOST Certificate: GOST_POCCFRME77B07175
- Maximum Mechanical Switching Frequency: 3600 cycles per hour
- Auxiliary Contacts: 2 NO | 2 NC
- Main Circuit Voltage: 24 V
- Auxiliary Circuit Voltage: 690 V
- EAN: 3471522121103
- Minimum Order Quantity: 2 piece
- Customs Tariff Number: 85389099
- Package Level 1 Units: 2 piece
- Package Level 1 Gross Weight: 0.12 kg
- Package Level 1 EAN: 3471522121103
- Package Level 2 Units: 120 piece
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- IIT Publishing Status: Level 0 - Information enabled
- Maximum Electrical Switching Frequency: 1200 cycles per hour
- Minimum Switching Capacity: A9 ... A75 17 / 5 volt per milliamp A95 ... A110 24 / 50 volt per milliamp
- Mounting on Contactors: A 9...A 75
- Rated Breaking Capacity acc. to IEC 60947-5-1: 10 x Ie AC-15
- Rated Making Capacity acc. to IEC 60947-5-1: 10 x Ie AC-15
- Rated Operational Current AC-15 (I<sub>e</sub>): (220 / 240 V) 4 A (24 / 127 V) 6 A (380 / 440 V) 3 A (500 V) 2 A (690 V) 2 A
- Rated Operational Current DC-13 (I<sub>e</sub>): (125 V) 0.55 / 69 A (24 V) 6 / 144 A (250 V) 0.3 / 75 A (48 V) 2.8 / 134 A (72 V) 1 / 72 A
- Rated Operational Voltage: Auxiliary Circuit 690 V Main Circuit 24 V
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 140.0 A
- Remarks: 100
- CSA Certificate: CSA_1033838
- cUL Certificate: UL_071301E48139
- Data Sheet, Technical Information: 1SBC100122C0202_Ch04
- Declaration of Conformity - CE: 1SBD250809U1000
- EAC Certificate: EAC_RU C-FR ME77 B01048
- RINA Certificate: RINA_ELE128713XG001
- RoHS Information: 1SBD350058R1000
- UL Certificate: UL_071301E48139
- E-nummer: 3228805
- ETIM 4: EC002498 - Accessories for low-voltage switch technology
- ETIM 5: EC002498 - Accessories for low-voltage switch technology
- ETIM 6: EC002498 - Accessories for low-voltage switch technology
- Object Classification Code: K
- UNSPSC: 39121500
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CA5-22E . Santa Clara Systems carries 36,937 items from ABB.

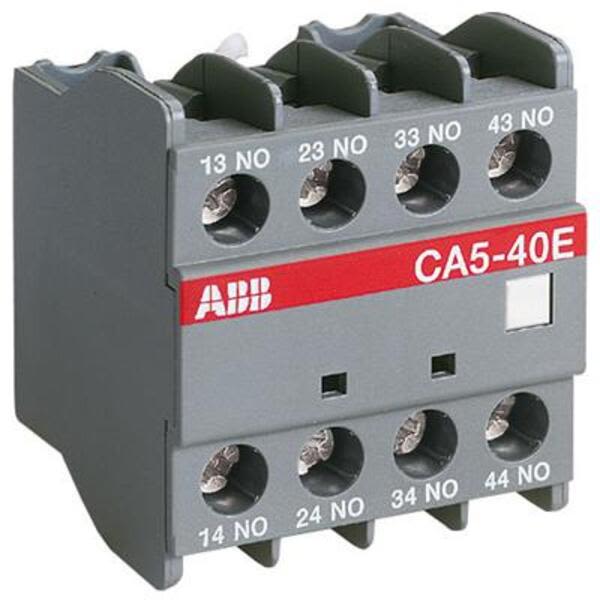

- Ca5-22e Auxiliary Contact Block
