BADL-1SNA399903R0200

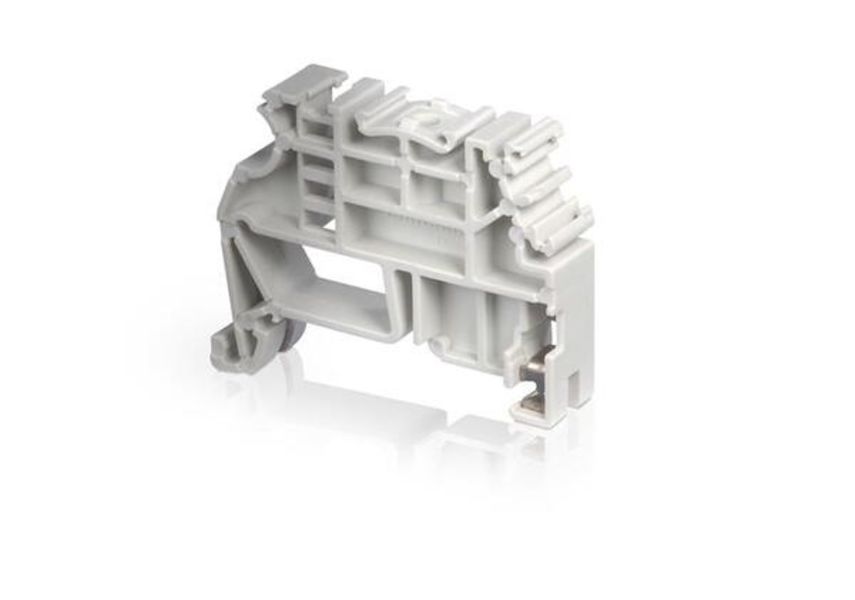

ABB - BADL End Stops - Grey

Current response time:

By 5AM PT on Friday

Emergency?

Description: BADL End Stops - Grey
Product ID: 1SNA399903R0200
Extended Product Type: 1SNA399903R0200
Product Net Weight: 4.7 g
Product Net Width: 9 mm
Product Net Height: 48 mm
Product Net Depth: 28.5 mm
Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Ambient Air Temperature: Operation -55 ... +110 C Storage -55 ... +110 C
Function: End Stops
Color: Grey
Suitable For: 165ETTM5TM5 165LTTM5TM5 BRT BRTC BRU C10/10 C10/10.P C16/12 C2.5/5 C2.5/5.P C2.5/6 C2.5/6.P C4/6 C4/6.P C4/6.S C4/6.SF C4/6.SFD24 C6/8 C6/8.P C6/8.ST4 D1.5/4.2L D1.5/4.2L.2L D1.5/4.4L D1.5/4.P.2L D1.5/4.P.4L D1.5/6.ADO D1.5/6.ADO.D D1.5/6.NT.ADO D1.5/6.P.ADO D1.5/6.S.ADO D1.5/6.SNT2.ADO D1.5/7.2ADO-CPE D1.5/7.ADO-CPE D1.5/8.SF.ADO D1.5/8.SNN.ADO D1/5.ADO D1/5.C2.ADO D1/5.C3.ADO D1/5.P.ADO D1/5.S.ADO D1/5.SF.ADO D1/5.SNT2.ADO D10/10.1.2L D10/10.1.P.2L D10/10.2L D10/10.3L D10/10.NT.L D10/10.P.2L D10/10.P.3L D16/12.2L D16/12.3L D16/12.NT.L D16/12.P.2L D16/12.P.3L D16/12.PEN.2L D2.5/5.2L D2.5/5.2L.2L D2.5/5.3L D2.5/5.4L D2.5/5.A.L.L D2.5/5.A.LL.L D2.5/5.A.LLP.L D2.5/5.A.N.L D2.5/5.A.NL.L D2.5/5.A.NLP.L D2.5/5.A.NTLP.L D2.5/5.ADO D2.5/5.C3.L D2.5/5.C4.L D2.5/5.D2.L D2.5/5.DD.L D2.5/5.DE.L D2.5/5.DE1.D.L D2.5/5.DE1.L D2.5/5.DE2.D2.L D2.5/5.DE2.L D2.5/5.DL.L D2.5/5.I.3L D2.5/5.I.4L D2.5/5.I.P.3L D2.5/5.I.P.4L D2.5/5.L.L D2.5/5.LL.L D2.5/5.LLP.L D2.5/5.N.L D2.5/5.NL.L D2.5/5.NLP.L D2.5/5.NT.L D2.5/5.NTLP.L D2.5/5.P D2.5/5.P.2L D2.5/5.P.3L D2.5/5.P.4L D2.5/5.P.ADO D2.5/5.S.ADO D2.5/5.SB.2L D2.5/5.SB.4L D2.5/5.SFA.ADO D2.5/5.SN.ADO D2.5/5.SNB.2L D2.5/5.SNB.4L D2.5/5.SNBT.2L D2.5/5.SNBT.4L D2.5/7.2ADO-CPE D2.5/7.ADO-CPE D2.5/8.ADO D2.5/8.NT.ADO D2.5/8.P.ADO D2.5/8.S.ADO D2.5/8.SF.2L D2.5/8.SF.ADO2 D2.5/8.SNNT.ADO2 D2.5/8.SNT.2L D2.5/8.SNT2.ADO D35/16.2L D35/16.NT.L D35/16.PEN.2L D4/6.2L D4/6.3L D4/6.4L D4/6.ADO D4/6.LNTP D4/6.LNTP.L D4/6.NT.L D4/6.P D4/6.P.2L D4/6.P.3L D4/6.P.4L D4/6.P.ADO D4/6.S.ADO D4/6.SN.ADO D4/6.SNT2.ADO D4/7.2ADO-CPE D4/7.ADO-CPE D4/8.ADO D4/8.P.ADO D4/8.S.2A.ADO2 D4/8.S.ADO D4/8.SF.I.ADO D4/8.SN.ADO D4/8.SN.I.ADO D6/10.SNBTB D6/8.2L D6/8.3L D6/8.ADO D6/8.ADO.RS D6/8.NT.L D6/8.P D6/8.P.2L D6/8.P.3L D6/8.P.ADO D6/8.ST.RS DBL DS1.5/6.ADO DS1/5.ADO DS2.5/10.4L DS2.5/5.2L DS2.5/5.ADO DS2.5/8.ADO DS2.5/8.P.ADO DS4/6.ADO DS4/8.A.ADO3 DS4/8.A.P.ADO3 DS4/8.ADO DS4/8.P.ADO DSE1.5/6.ADO DSE1/5.ADO DSE2.5/5.ADO DSE2.5/8.ADO DSE4/6.ADO DSE4/8.A.ADO3 DSE4/8.ADO DSE4/8.ADO3 ES8-CG M10/10 M10/10.NT M10/10.P M10/10.PE.N M10/10.RS M10/10.ST-Sn M10/12.5.STI-Sn M10/16.SF M10/16.SN M16/12 M16/12.NT M16/12.P M16/12.PE.N M35/16 M35/16.2A.2G M35/16.NT M35/16.P M35/16.PE.N M4/6 M4/6.3A M4/6.3A.NC M4/6.3A.P M4/6.4A M4/6.4A.P M4/6.NC M4/6.NT M4/6.P M4/6.P.NC M4/6.RS M4/6.S M4/6.SB M4/6.SBT.4A M4/6.SNB M4/6.SNBT M4/6.SNTS M4/6.ST M4/8 M4/8.5.STI M4/8.SF M4/8.SF.NC M4/8.SN M6/13.FF M6/8 M6/8.NC M6/8.NT M6/8.P M6/8.P.NC M6/8.RS M6/8.S M6/8.SB M6/8.SNB M6/8.ST M6/8.STP M6/8.STP.RS M6/9.EE MA2.5/5 MA2.5/5.NT MA2.5/5.P MA2.5/5.SB MA2.5/5.SNB MA2.5/5.SNBT MA2.5/5-2CPE MA2.5/5-CPE MA2.5/5-SFA-CPE MA2.5/5-SNB-CPE MB10/12.SF MB10/22.SF MB10/22.SN MB10/24.SF MB25/30.SF ML10/13.SF ML10/13.SN MS4/6 MS6/8 MTC6 MU10/13.SF MU10/13.SN MU10/14.5.SF MU10/14.5.SN
Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Spacing: 9 mm
Insulation Material: Polyamide
EAN: 3472593999035
Minimum Order Quantity: 50 piece
Customs Tariff Number: 85369010
Recommended Screw Driver: 6.5 mm
Flammability According to UL94: V0

RoHS Status: Following EU Directive 2011/65/EC
Declaration of Conformity - CE: 1SND225001C1009
RoHS Information: 1SND230479F0206
E-nummer: 2925699
ETIM 4: EC001041 - End bracket for terminal block
ETIM 5: EC001041 - End bracket for terminal block
ETIM 6: EC001041 - End bracket for terminal block
Object Classification Code: X
Package Level 1 Width: 200 mm
Package Level 1 Length: 300 mm
Package Level 1 Height: 5 mm
Package Level 1 Gross Weight: 0.235 kg
Package Level 1 EAN: 3472593999035
Package Level 2 Units: 1500 piece
Package Level 2 Width: 300 mm
Package Level 2 Length: 500 mm
Package Level 2 Height: 300 mm
Package Level 3 Units: 36000 piece
Product Packing Type: Bag
Package Level 1 Units: 50 piece
