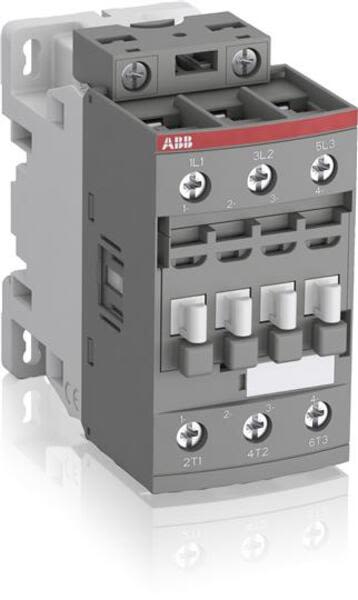

AF38-30-00-13

ABB - Contactor | 1SBL297001R1300

Current response time:

By 5AM PT on Monday

Emergency?

Description: Contactor | 1SBL297001R1300
Product ID: 1SBL297001R1300
Extended Product Type: 1SBL297001R1300
Product Net Weight: 0.310 kg
Product Net Width: 45 mm
Product Net Height: 86 mm
Product Net Depth: 86 mm
Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Ambient Air Temperature: Close to Contactor for Storage -60...+80 °C Close to Contactor Fitted with Thermal O/L Relay -25 ... +60 °C Close to Contactor without Thermal O/L Relay -40 ... +70 °C
Standards: IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14
Rated Impulse Withstand Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): acc. to UL/CSA 600 V acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
Terminal Type: Screw Terminals
Rated Frequency (f): Main Circuit 50 / 60 Hz
Number of Auxiliary Contacts NO: 0
Number of Auxiliary Contacts NC: 0
Connecting Capacity Main Circuit: Flexible with Insulated Ferrule 1x 1.5...10 mm² Flexible with Insulated Ferrule 2x 1.5...4 mm² Flexible with Ferrule 1/2x 1.5...10 mm² Rigid 1/2x 2.5...10 mm²
GOST Certificate: GOST_POCCFR.ME77.B07175.pdf
Maximum Operating Altitude Permissible: 3000 m
Rated Control Circuit Voltage (Uc): 50 Hz 100 ... 250 V 60 Hz 100 ... 250 V DC Operation 100 ... 250 V
Climatic Withstand: Category B according to IEC 60947-1 Annex Q
Tightening Torque UL/CSA: Control Circuit 11 in·lb Main Circuit 22 in·lb
Maximum Mechanical Switching Frequency: 3600 cycles per hour
Operate Time: Between Coil De-energization and NC Contact Closing 13...98 ms Between Coil De-energization and NO Contact Opening 11...95 ms Between Coil Energization and NC Contact Opening 38...90 ms Between Coil Energization and NO Contact Closing 40...95 ms
Wire Stripping Length: Control Circuit 10 mm Main Circuit 14 mm
Number of Main Contacts NO: 3
GL Certificate: DNV-GL_E13871
Number of Main Contacts NC: 0
Maximum Breaking Capacity: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 500 A cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 200 A
Connecting Capacity Control Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² Rigid 1/2x 1 ... 2.5 mm²
Horsepower Rating UL/CSA: (120 V AC) Single Phase 2 Hp (240 V AC) Single Phase 5 Hp (200 ... 208 V AC) Three Phase 10 Hp (220 ... 240 V AC) Three Phase 10 Hp (440 ... 480 V AC) Three Phase 25 Hp (550 ... 600 V AC) Three Phase 30 Hp
General Use Rating UL/CSA: (600 V AC) 50 A
EAN: 3471523111530
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85369085
Package Level 1 Width: 87 mm
Package Level 1 Length: 87 mm
Package Level 1 Height: 47 mm

Package Level 1 Gross Weight: 0.31 kg
Package Level 1 EAN: 3471523111530
Package Level 2 Units: 45 piece
Package Level 2 Width: 250 mm
Package Level 2 Length: 300 mm
Package Level 2 Height: 315 mm
Package Level 3 Units: 1080 piece
Package Level 1 Units: 1 piece
Rated Operational Voltage: Main Circuit 690 V
Conventional Free-air Thermal Current (Ith): acc. to IEC 60947-4-1, Open Contactors q = 40 °C 50 A
Rated Operational Current AC-1 (Ie): (690 V) 40 °C 50 A (690 V) 60 °C 42 A (690 V) 70 °C 37 A
Rated Operational Current AC-3 (Ie): (220 / 230 / 240 V) 60 °C 40 A (380 / 400 V) 60 °C 38 A (415 V) 60 °C 38 A (440 V) 60 °C 38 A (500 V) 60 °C 33 A (690 V) 60 °C 24 A
Rated Operational Power AC-3 (Pe): (220 / 230 / 240 V) 11 kW (380 / 400 V) 18.5 kW (400 V) 18.5 kW (415 V) 18.5 kW (440 V) 22 kW (500 V) 22 kW (690 V) 22 kW
Rated Short-time Withstand Current (Icw): at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 350 A at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 50 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 700 A at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 A
Maximum Electrical Switching Frequency: AC-1 600 cycles per hour AC-2 / AC-4 150 cycles per hour AC-3 1200 cycles per hour
Resistance to Vibrations acc. to IEC 60068-2-6: 5...300 Hz 4 g closed position / 2 g open position
Resistance to Shock acc. to IEC 60068-2-27: Closed, Shock Direction: B1 25 g Open, Shock Direction: B1 5 g Shock Direction: A 30 g Shock Direction: B2 15 g Shock Direction: C1 25 g Shock Direction: C2 25 g
RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2008 Q1
Instructions and Manuals: 1SBC101027M6801
ABS Certificate: ABS_15-GE1349500-PDA_90682247
CB Certificate: CB_SE_70856M1
CCC Certificate: CCC_2010010304445623
cUL Certificate: UL_20091124-E312527-7-1
Data Sheet, Technical Information: 1SBC101412D0201
Declaration of Conformity - CE: 1SBD250000U1000
DNV Certificate: DNV-GL_E13871
EAC Certificate: EAC_RU C-FR ME77 B01010
LR Certificate: LRS_1300087E1
RINA Certificate: RINA_ELE084013XG
RMRS Certificate: RMRS_1400682124
RoHS Information: 1SBD251012E1000
E-nummer: 3211386
ETIM 4: EC000066 - Magnet contactor, AC-switching
ETIM 5: EC000066 - Magnet contactor, AC-switching
ETIM 6: EC000066 - Power contactor, AC switching
UNSPSC: 39121529
Object Classification Code: Q

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AF38-30-00-13 . Santa Clara Systems carries 36,972 items from ABB.

Front And Side-Mounted Add-On Auxiliary Contact Blocks (Mechanically-Linked Auxiliary Contacts Compliant With Annex L Of Iec 60947-5-1. N.c. Mirror Contacts Compliant With Annex F Of Iec 60947-4-1) - Control Circuit: Ac Or Dc Operated - Accessories: A Wide Range Of Accessories Is Available.

Af38 Contactors Are Used For Controlling Power Circuits Up To 690 V Ac And 220 V Dc. They Are Mainly Used For Controlling 3-Phase Motors
Non-Inductive Or Slightly Inductive Loads. Af... Contactors Include An Electronic Coil Interface Accepting A Wide Control Voltage Uc Min. ... Uc Max. Only Four Coils Cover Control Voltages Between 24...500 V 50/60 Hz Or 20...500 V Dc. Af Contactors Can Manage Large Control Voltage Variations. One Coil Can Be Used For Different Control Voltages Used Worldwide Without Any Coil Change. Af Contactors Have Built-In Surge Protection And Do Not Require Additional Surge Suppressors. The Af... Series 1-Stack 3-Pole Contactors Are Of The Block Type Design. - Main Poles And Auxiliary Contact Blocks: 3 Main Poles
