A50-30-00-34

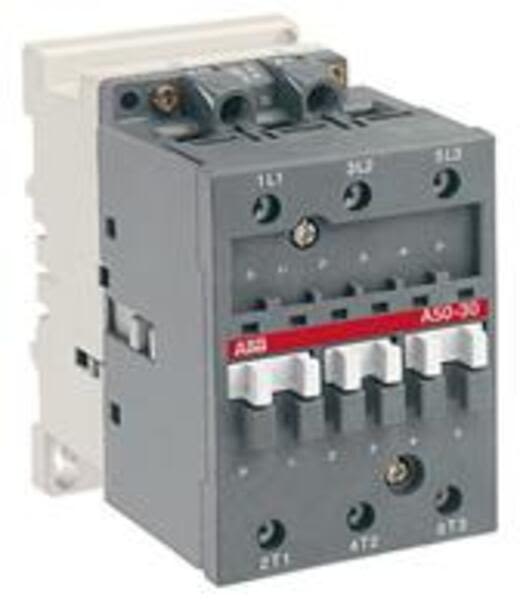

ABB - A50-30-00 175V 50Hz / 208V 60Hz Contactor

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: A50-30-00 175V 50Hz / 208V 60Hz Contactor
Product ID: 1SBL351001R3400
Extended Product Type: 1SBL351001R3400
Product Net Weight: 1.160 kg
Product Net Width: 70 mm
Product Net Height: 110 mm
Product Net Depth: 108 mm
Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
Ambient Air Temperature: Close to Contactor Fitted with Thermal O/L Relay -25 ... +55 C Close to Contactor for Storage -60 ... +80 C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... +55 C Close to Contactor without Thermal O/L Relay (Uc) -40 ... +70 C
Standards: Devices complying with international standards IEC 947-1 / 947-4-1, and European standards EN 60 947-1 / 60 947-4-1. Electromagnetic compatibility (EMC) acc. to amendment A11 to IEC 947-1; EN 60 947-1 and amendment 2 to IEC 947-4-1
Rated Impulse Withstand Voltage (Uimp): 8 kV
Rated Insulation Voltage (Ui): acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V acc. to UL/CSA 600 V
Terminal Type: Screw Terminals
Number of Auxiliary Contacts NO: 0
Number of Auxiliary Contacts NC: 0
Connecting Capacity Main Circuit: Flexible with Cable End 6 ... 16 mm Rigid Cable 6 ... 25 mm
GOST Certificate: GOST_POCCFRME77B07175
Maximum Operating Altitude Permissible: 3000 m
Rated Control Circuit Voltage (Uc): 50 Hz 175 V 60 Hz 208 V
Climatic Withstand: acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II
Maximum Mechanical Switching Frequency: 3600 cycles per hour
Connecting Capacity Auxiliary Circuit: Flexible with Cable End 0.75 ... 2.5 mm Rigid Cable 1 ... 4 mm
Operate Time: Between Coil Energization and NO Contact Closing 8 ... 27 ms Between Coil De-energization and NO Contact Opening 4 ... 11 ms
Number of Main Contacts NO: 3
GL Certificate: DNV-GL_TAE00000TX
Number of Main Contacts NC: 0
Short-Circuit Protective Devices: gG Type Fuses 100 A
Maximum Breaking Capacity: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 A cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A
Coil Consumption: Average Holding Value 50 Hz 18 V·A Average Holding Value 50 Hz 5.5 W Average Holding Value 60 Hz 18 V·A Average Holding Value 60 Hz 5.5 W Average Pull-in Value 50 Hz 180 V·A Average Pull-in Value 60 Hz 210 V·A
Coil Operating Limits: (acc. to IEC 60947-4-1) 0.85 ... 1.1 x Uc (at 55 C) C
Connecting terminals (delivered in open position) Main poles: M 6 (+,-) pozidriv 2 screws with 1x (13 x 10 mm) connector
EAN: 3471522081346
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85369085
Package Level 1 Width: 140 mm
Package Level 1 Length: 146 mm
Package Level 1 Height: 96 mm

Package Level 1 Gross Weight: 1.16 kg
Package Level 1 EAN: 3471522081346
Package Level 2 Units: 20 piece
Package Level 3 Units: 160 piece
Package Level 1 Units: 1 piece
Rated Operational Voltage: Main Circuit 1000 V
Conventional Free-air Thermal Current (Ith): acc. to IEC 60947-4-1, Open Contactors q = 40 C 100 A
Rated Operational Current AC-1 (Ie): (690 V) 40 C 100 A (690 V) 55 C 85 A (690 V) 70 C 70 A
Rated Operational Current AC-3 (Ie): (1000 V) 55 C 23 A (220 / 230 / 240 V) 55 C 53 A (380 / 400 V) 55 C 50 A (415 V) 55 C 50 A (440 V) 55 C 45 A (500 V) 55 C 45 A (690 V) 55 C 35 A
Rated Operational Power AC-3 (Pe): (220 / 230 / 240 V) 15 kW (380 / 400 V) 22 kW (415 V) 25 kW (440 V) 25 kW (500 V) 30 kW (690 V) 30 kW
Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1: 8 x Ie AC-3
Rated Making Capacity AC-3 acc. to IEC 60947-4-1: 10 x Ie AC-3
Rated Short-time Withstand Current (Icw): at 40 C Ambient Temp, in Free Air, from a Cold State 10 s 650 A at 40 C Ambient Temp, in Free Air, from a Cold State 15 min 110 A at 40 C Ambient Temp, in Free Air, from a Cold State 1 min 250 A at 40 C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A at 40 C Ambient Temp, in Free Air, from a Cold State 30 s 370 A
Maximum Electrical Switching Frequency: AC-1 600 cycles per hour AC-2 / AC-4 150 cycles per hour AC-3 600 cycles per hour
Resistance to Shock acc. to IEC 60068-2-27: Shock Direction: A 20 g Closed, Shock Direction: B1 10 g Open, Shock Direction: B1 5 g Shock Direction: B2 15 g Shock Direction: C1 20 g Shock Direction: C2 20 g
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Instructions and Manuals: FPTC407700P0003
BV Certificate: BV_2634H07559D0
CB Certificate: CB_FR_602227A
CCC Certificate: CCC_2002010304016447
CSA Certificate: CSA_1033838_LR056745
cUL Certificate: UL_071301E39231
Data Sheet, Technical Information: 1SBC100122C0202_Ch02
Declaration of Conformity - CE: 1SBD250801U1000
DNV Certificate: DNV-GL_TAE00000TX
EAC Certificate: EAC_RU C-FR ME77 B01010
LR Certificate: LRS_9830011E4
RINA Certificate: RINA_ELE128713XG001
RMRS Certificate: RMRS_0507015250
RoHS Information: 1SBD350054R1000
UL Certificate: UL_071301E39231
ETIM 4: EC000066 - Magnet contactor, AC-switching
ETIM 5: EC000066 - Magnet contactor, AC-switching
ETIM 6: EC000066 - Power contactor, AC switching
UNSPSC: 39121529
Object Classification Code: Q

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on A50-30-00-34 . Santa Clara Systems carries 36,936 items from ABB.

Front And Side-Mounted Add-On Auxiliary Contact Blocks - Control Circuit: Ac Operated With Laminated Magnet Circuit - Accessories: A Wide Range Of Accessories Is Available.

A50 Contactors Are Mainly Used For Controlling 3-Phase Motors And Generally For Controlling Power Circuits Up To 690 V Ac / 1000 V Ac Or 220 V Dc. The Contactors Can Also Be Used For Many Other Applications Such As Isolation
Capacitor Switching
Lighting. The A... Series 1-Stack 3-Pole Contactors Are Of The Block Type Design. - Main Poles And Auxiliary Contact Blocks: 3 Main Poles
