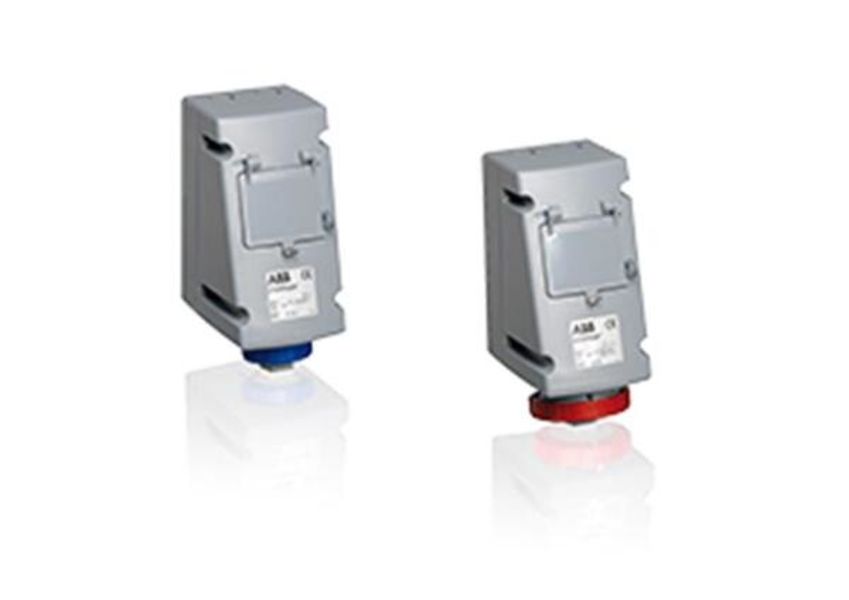

- Description: Switched interlocked socket-outlet with RCD, 6h, 30mA, 16A, IP44, 3P+E
- Product ID: 2CMA167764R1000
- Extended Product Type: 2CMA167764R1000
- Product Net Weight: 1.74 kg
- Product Net Width: 130 mm
- Product Net Height: 366 mm
- Product Net Depth: 366 mm
- Product Main Type: MPR
- Product Name: Industrial Switched Interlocked Socket Outlet
- Degree of Protection: acc. to IEC 60529 IP44
- Standards: IEC 60 309-1, -2, -4
- Number of Poles: 4
- Rated Current (I<sub>n</sub>): 16 A
- Function: Switched interlocked socket outlet with RCD, 30 mA
- Color: Red
- Suitable For: Switched Interlocked Socket Outlets with RCD
- Product Net Length: 182 mm
- Rated Voltage (U<sub>r</sub>): 380 415 V
- Country of Origin: Czech Republic (CZ)
- Frequency (<i>f</i>): 60 Hz
- Enclosure Material: Thermoplastic
- Environmental Information: 2CMC700001D0002
- Protection Type: Splashproof
- Cable Cross-Section: 1.5 4 mm
- Rated Residual Current: 30mA
- Cable Outlets Per Side: 2xØ25
- Cable Entry Position: Top
- EAN: 7392696677646
- Minimum Order Quantity: 1 piece
- Package Level 1 Width: 143 mm
- Package Level 1 Length: 397 mm
- Package Level 1 Height: 187 mm
- Package Level 1 Gross Weight: 1.74 kg
- Package Level 1 EAN: 7392696677646
- Package Level 1 Units: 1 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q1
- Declaration of Conformity - CE: 2CMC700005D0001
- RoHS Information: 2CMC700057D0001
- Additional Information: Cable entry, knock-outs 2xØ25mm
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: Ind. P&S#316MPR6
- Number of RCD 30mA: 1
- Number of RCDs: 1
- Object Classification Code: 2CMT005069
- RoHS Date: L23
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2416886
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 316MPR6 . Santa Clara Systems carries 36,936 items from ABB.
- 3-Poles+earth
- Frequency 50-60 Hz
- Color Code Red
- Switched Interlocked Socket Outlet With Rcd
- Earthing Sleeve Position 6h
- 30ma
- Rated Current 16a
- Ip44 Splashproof
