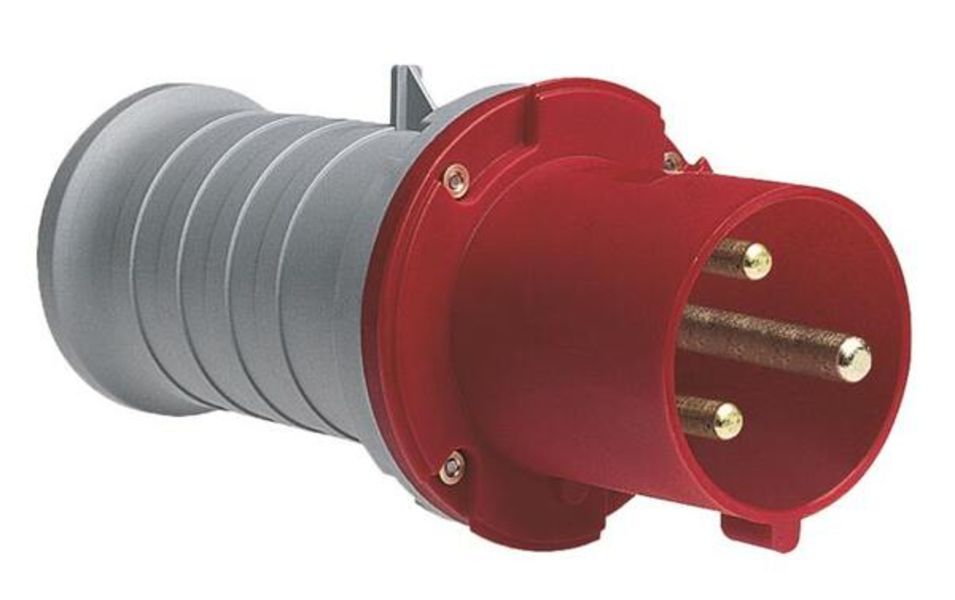

- Description: Plug, 9h, 63A, IP44, 2P+E
- Product ID: 2CMA166744R1000
- Extended Product Type: 2CMA166744R1000
- Product Net Weight: 0.58 kg
- Product Net Width: 103 mm
- Product Net Height: 103 mm
- Product Net Depth: 103 mm
- Product Main Type: P
- Product Name: Industrial Plug
- Degree of Protection: acc. to IEC 60529 IP44
- Standards: IEC 60309-1,-2
- Number of Poles: 3
- Rated Current (I<sub>n</sub>): 63 A
- Function: Plug
- Color: Red
- Suitable For: Plugs
- Product Net Length: 215 mm
- Rated Voltage (U<sub>r</sub>): 380 415 V
- Country of Origin: Czech Republic (CZ)
- Frequency (<i>f</i>): 60 Hz
- Enclosure Material: Thermoplastic polyester (PBT)
- Environmental Information: 2CMC700001D0002
- Protection Type: Splashproof
- Cable Cross-Section: 4 16 mm
- EAN: 7392696667449
- Minimum Order Quantity: 1 piece
- Package Level 1 Width: 118 mm
- Package Level 1 Length: 267 mm
- Package Level 1 Height: 119 mm
- Package Level 1 Gross Weight: 0.66 kg
- Package Level 1 EAN: 7392696667449
- Package Level 1 Units: 1 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-03-01
- Declaration of Conformity - CE: 2CMC700005D0001
- RoHS Information: 2CMC700057D0001
- Additional Information: Cable entry, membrane
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: Ind. P&S#263P9
- Object Classification Code: 2CMT005069
- RoHS Date: L23
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2416222
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 263P9 . Santa Clara Systems carries 36,936 items from ABB.
- 2-Poles+earth
- Frequency 50-60 Hz
- Color Code Red
- Plug
- Earthing Sleeve Position 9h
- Rated Current 63a
- Ip44 Splashproof
