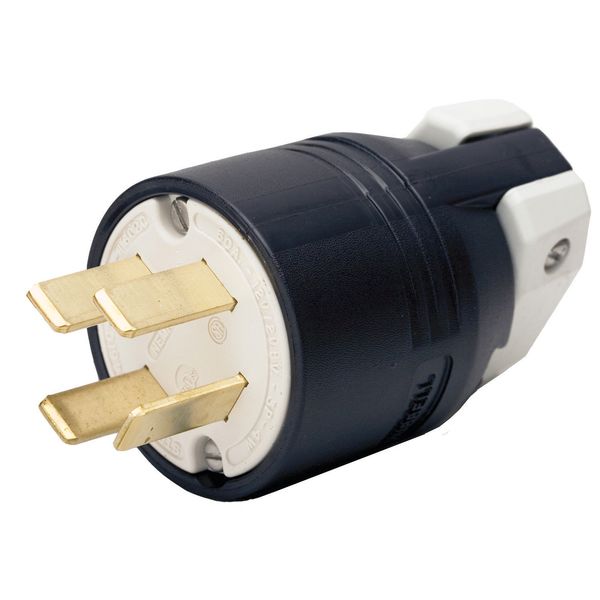

HBL7303C

Hubbell - Control

Current response time:

By 5AM PT on Friday

Emergency?

Description: Control
Specifications Description: 4-Pole 4-Wire Non-Grounding, 60A 3PH Y 120/208V, 18-60P, Angled, Black Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.85
Amperage: 60A
Flammability: UL 94 HB or better.
Operating Temperatures: Maximum continuous 75C, minimum -40C (w/o impact).
Voltage: 3ph 120/208V AC
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Poles and Wires: 4 Pole, 4 Wire Non-Grounding
Terminal Accommodation: #12-#4 AWG copper stranded or solid conductor only.
Terminal Screw Material: 3/8" Allen Head, Plated Steel
Product Identification: Ratings are a permanent part of the device.
Body Style: Straight
Horsepower: 7.5

Housing Material: Nylon
Rating: 60A, 3ph 120/208VACV
Type: 4 Pole, 4 Wire, Non Grounding
Standard: NEMA
Hospital Grade ?: No
Plug/Connector Grade: Insulgrip
NEMA No.: 18-60P
Cord Dia.: .625"-1.310" (15.9-33.3)
Certification: UL Listed, File E2186, Listed to UL Standard 498
IP Suitability: IP20
Blade Holder Material: Nylon
Retainer Material: Glass Reinforced PET
Cord Clamp Material: Glass Reinforced Polyester
Contact Blades Material: .075" Brass
Box Terminals Material: Copper
Dielectric Voltage: Withstands 2,000V minimum.
