Out of Stock

FR80AL

Hubbell - Control

Current response time:

By 5AM PT on Monday

Emergency?

Description: Control

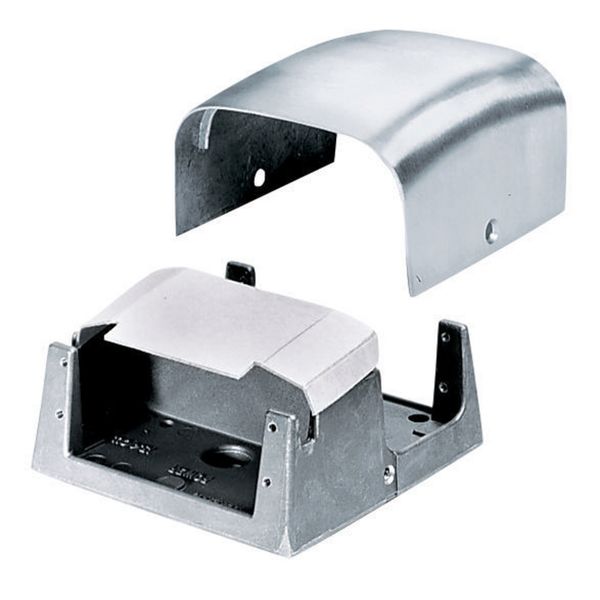

Specifications Description: This poke-through series is outfitted with a traditional satin anodized aluminum pedestal and stainless steel face plates. These two-gang units are equipped with barrier to permit power and voice/data in one attractive service pedestal and they are offered in a wide variety of choices: standard duplex, isolated ground and surge suppression receptacles. An expanded capacity 3 inch (76.2) diameter through-floor fitting provides maximum delivery of power and voice/data cabling while maintaining a fire-rating of 1 to 4 hours. These versatile poke-throughs can be ordered either as a complete unit or as separate components.
UPC Number: 78358539632
Weight in LBs: 1.1
Series: Satin Anodized Aluminum
Satin Anodized Pedestal Items: Above Floor Fitting Less Plates and Devices

Complies with:: UL 514A requirements for scrub water protection.
Fire Rating: For use in 1, 1 1/2, 2, 3 or 4 hour rated unprotected reinforced concrete floors or in 1, 2 or 3 hour rated floors employing steel floor units and concrete topping (D900 series design).
UL Installation Spacing: Minimum of 2 feet on centers and not more than one unit per 65 sq. ft. of floor area in each span.
Service Pedestal Finish: Satin Anodized Aluminum (brushed)
Pedestal Series Listing: UL Listed, CSA Certified

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FR80AL . Santa Clara Systems carries 10,224 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
