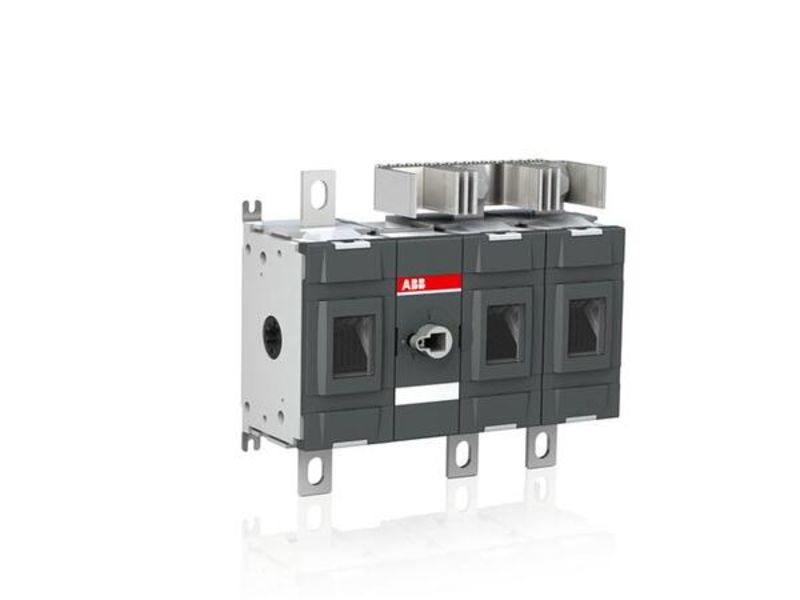

- Description: OTDC315EV12 DC Switch-disconnector
- Product ID: 1SCA132258R1001
- Extended Product Type: 1SCA132258R1001
- Product Net Weight: 4.7 kg
- Product Net Width: 266 mm
- Product Net Height: 227 mm
- Product Net Depth: 105 mm
- Product Main Type: OTDC315
- Product Name: DC Switch-disconnector
- Standards: IEC
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 12 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1500 V
- Number of Poles: 3
- Terminal Type: Lug terminals
- Power Loss: at Rated Operating Conditions per Pole 6 W
- Mounting Type: Normal
- Handle Type: None
- Switches Operating Mechanism: Mechanism Between the Poles
- Special Functions: 1500 V pre-connected
- Operating Mode: Front Operated
- EAN: 6417019614113
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 243 mm
- Package Level 1 Height: 143 mm
- Package Level 1 Length: 432 mm
- Package Level 1 Gross Weight: 5,1 kg
- Package Level 1 EAN: 6417019614113
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 315 A
- Earthing Switch Type: No Additional Type
- IIT Publishing Status: Level 0 - Information enabled
- Includes: None
- Pollution Degree: 3
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 10 kiloampere rms
- Data Sheet, Technical Information: 1SCC301021C0201
- Declaration of Conformity - CE: 1SCC301009K0201
- ETIM 5: EC000216 - Switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OTDC315EV12 . Santa Clara Systems carries 36,881 items from ABB.
- Including Terminal Bolt Kit. Handle And Shaft Have To Be Ordered Separately
